Some people may be confused about the differences between these 6 WalkingPad models. So we make this comparison chart for you to learn about WalkingPad models.
Performance &lndicators
|
WalkingPad R1 Pro
|
WalkingPad R2
|
WalkingPad X21
|
![]() |
![]() |
![]() |
|
Remote Control
|
Yes
|
Yes
|
N/A
|
NFC Pairing
|
N/A
|
N/A
|
Yes
|
Handrail Control
|
N/A
|
N/A
|
Yes
|
Display Data
|
Time, Speed, Distance, Calories, Steps
|
Time, Speed, Distance, Calories, Steps |
Time, Speed, Distance, Calories
|
Motor
|
Brushless
|
Brushless | Brushless |
APP Availability
|
KS fit (iOS & Android )
|
KS fit (iOS & Android ) | KS fit (iOS & Android ) |
Sport Mode
|
Running/Walking Mode
|
Running/Walking Mode
|
Running Mode
|
Foot-Sensing Speed Control
|
Yes
|
Yes
|
N/A
|
Handrail
|
Yes,with phone holder
|
Yes,with storage box and phone holder
|
Detachable Phone holder
|
Speed Range
|
Walking Mode: 0.5-6km/h Running Mode: 0.5-10km/h
|
Walking Mode: 0.5-6km/h Running Mode: 0.5-12km/h
|
1-12km/h
|
Maximum Load
|
110kg (240 lbs)
|
110kg (240 lbs) | 110kg (240 lbs) |
Expansion Dimensions
|
1460*720*900 mm
|
1452*720*1032 mm
|
1419*711*1053 mm
|
57.5"*28"*35.5"
|
57"*28"*40.5"
|
56"*28"*41.5"
|
|
Folding Dimensions
|
980*720*155 mm
|
1000*720*162 mm
|
1007*711*225 mm
|
38.5"*28"*6"
|
39"*28"*6"
|
39.6"*28"*9"
|
|
Working Area
|
1200 *440mm
|
1200*440mm
|
1210*460mm
|
47" *17"
|
47" *17"
|
47.6" *18"
|
|
Net Weight
|
33 kg (72 lbs)
|
36 kg (81 lbs)
|
38 kg (84 lbs)
|
Tread Height
|
77mm (3")
|
77mm (3")
|
96mm (3.8")
|
Power Input
|
918 W
|
918 W
|
918 W
|
Frequency
|
50- 60Hz
|
50- 60Hz
|
50- 60Hz
|
Performance &lndicators
|
WalkingPad P1
|
WalkingPad C2
|
WalkingPad A1 Pro
|
![]() |
![]() |
![]() |
|
Display Data
|
N/A
|
Time, Speed, Distance, Calories, Steps
|
Time, Speed, Distance, Calories, Steps
|
Motor
|
Brush
|
Brushless
|
Brushless
|
APP Availability
|
KS fit (iOS & Android )
|
KS fit (iOS & Android )
|
KS fit (iOS & Android )
|
Sport Mode
|
Walking /Jogging
|
Walking /Jogging
|
Walking /Jogging
|
Mode For Walking
|
Manual mode/ Automatic mode
|
Manual mode/ Automatic mode
|
Manual mode/ Automatic mode
|
Handrail
|
Optional for extra accessory
|
Optional for extra accessory
|
Optional for extra accessory
|
Speed Range
|
0.5-6km/h
|
0.5-6km/h
|
0.5-6km/h
|
Maximum load
|
100 kg/220 lbs
|
100 kg/220 lbs
|
Available options: 105 kg/230 lbs 136 kg/300 lbs
|
Expansion Dimensions
|
1432 x547 x129mm
|
1445x518x125 mm
|
1432 x547 x129mm
|
56.5" x 21.5" x 5"
|
56.9" x 20.4" x 4.9"
|
56.5" x 21.5" x 5"
|
|
Folding Dimensions
|
822x547x129 mm
|
825 x 518 x 136 mm
|
822x547x129 mm
|
32.5" x 21.5" x 5"
|
32.5" x 20.4" x 5.4"
|
32.5" x 21.5" x 5"
|
|
Working Area
|
1200x415 mm
|
1200x400 mm
|
1200x415 mm
|
47" x 16.5"
|
47" x 15.7"
|
47" x 16.5"
|
|
Net Weight
|
28 kg / 62 lbs
|
25 kg / 55 lbs
|
27 kg / 59 lbs
|
Applicable
|
14 ~ 60 years old
|
14 ~ 60 years old
|
14 ~ 60 years old
|
Power Input
|
746 W
|
735 W
|
932 W
|
Frequency
|
60 Hz
|
50/60 Hz
|
50/60 Hz
|
-

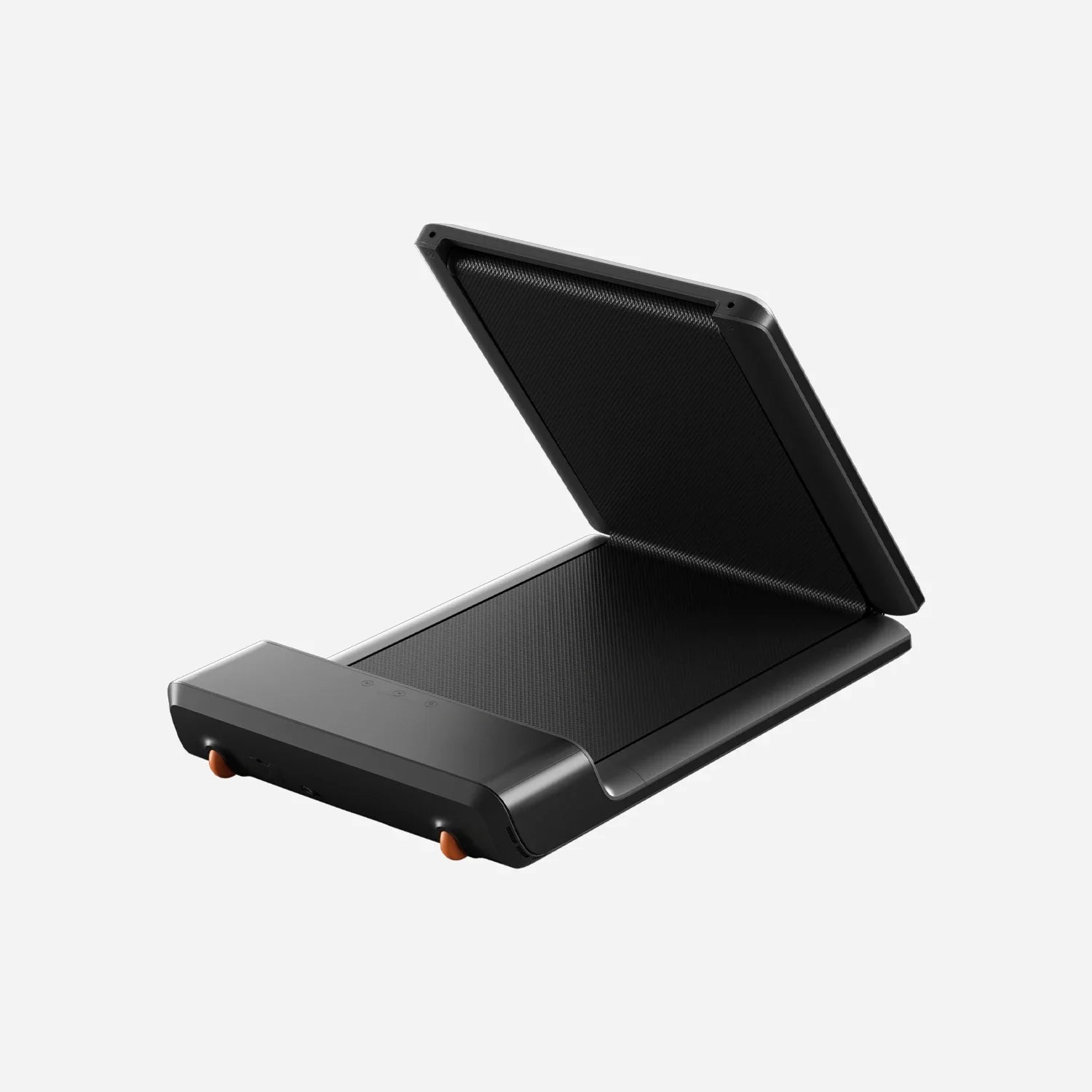

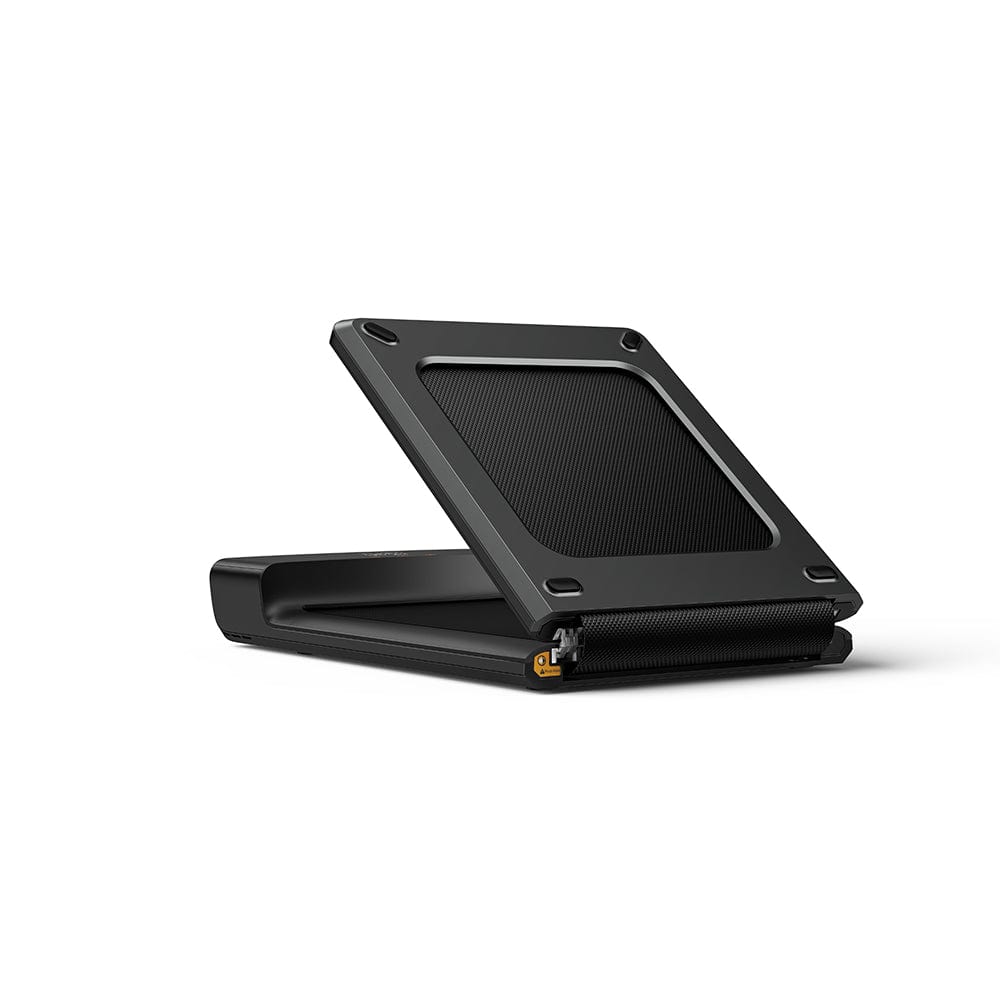

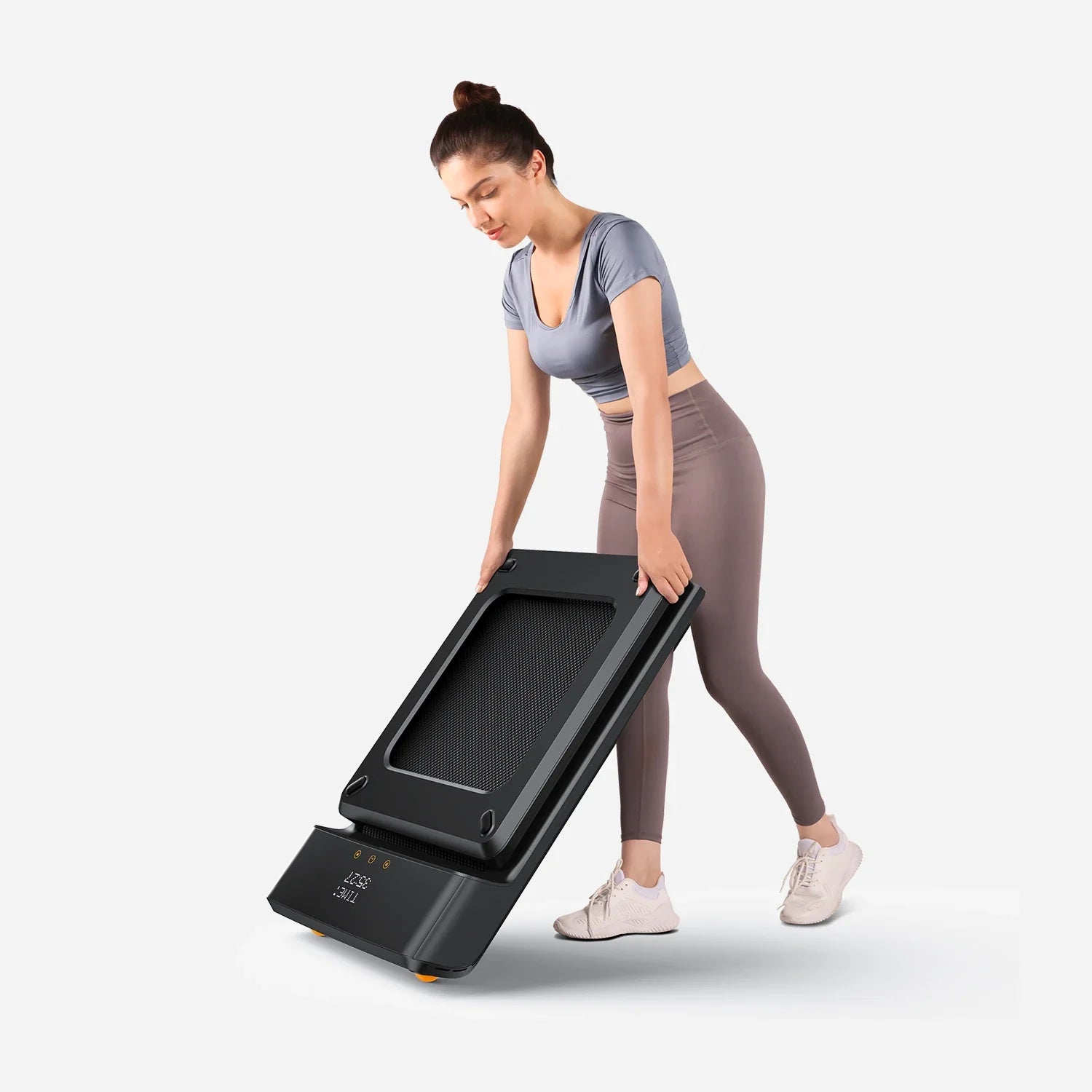

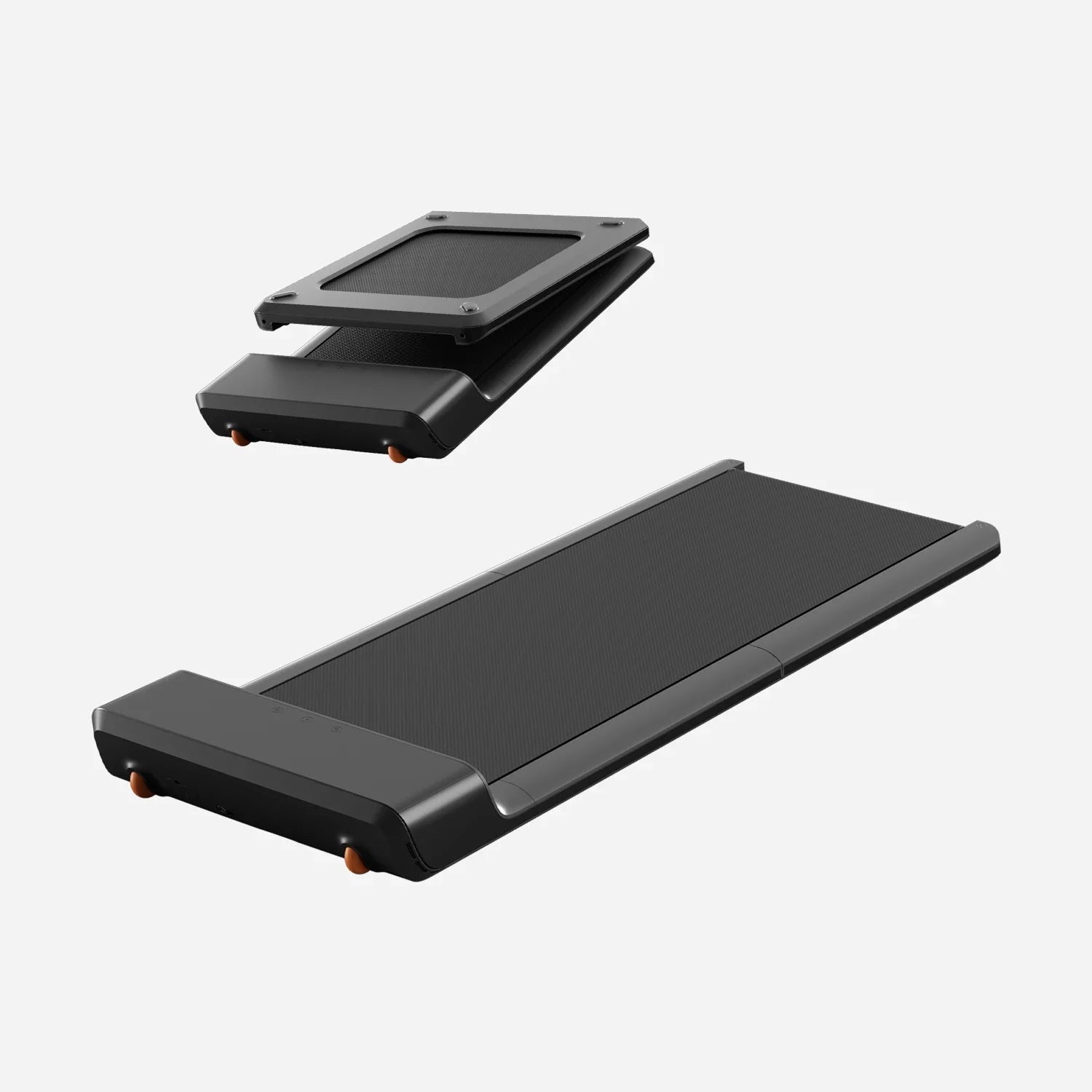

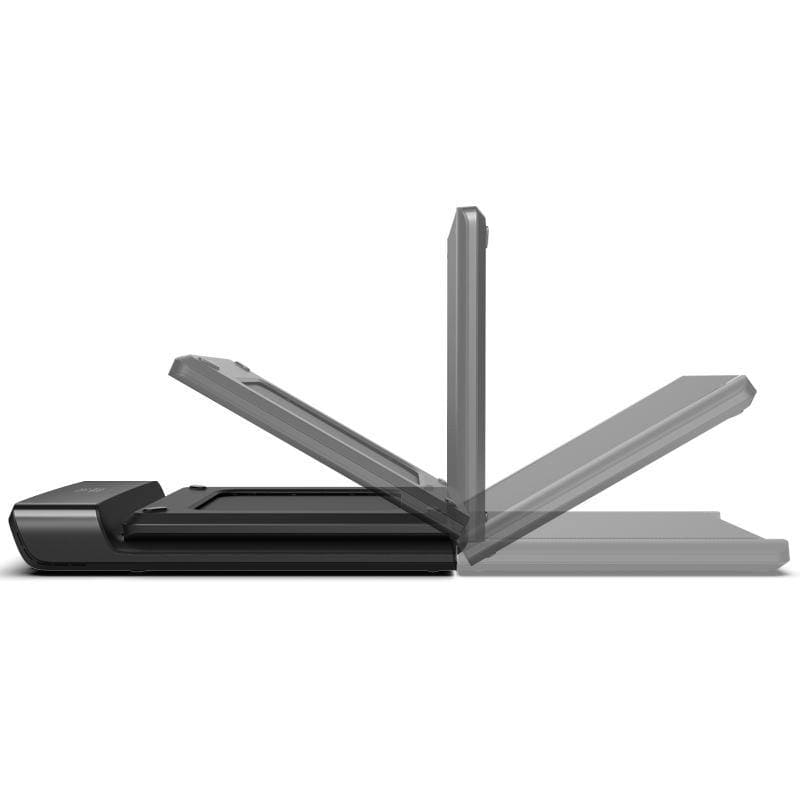

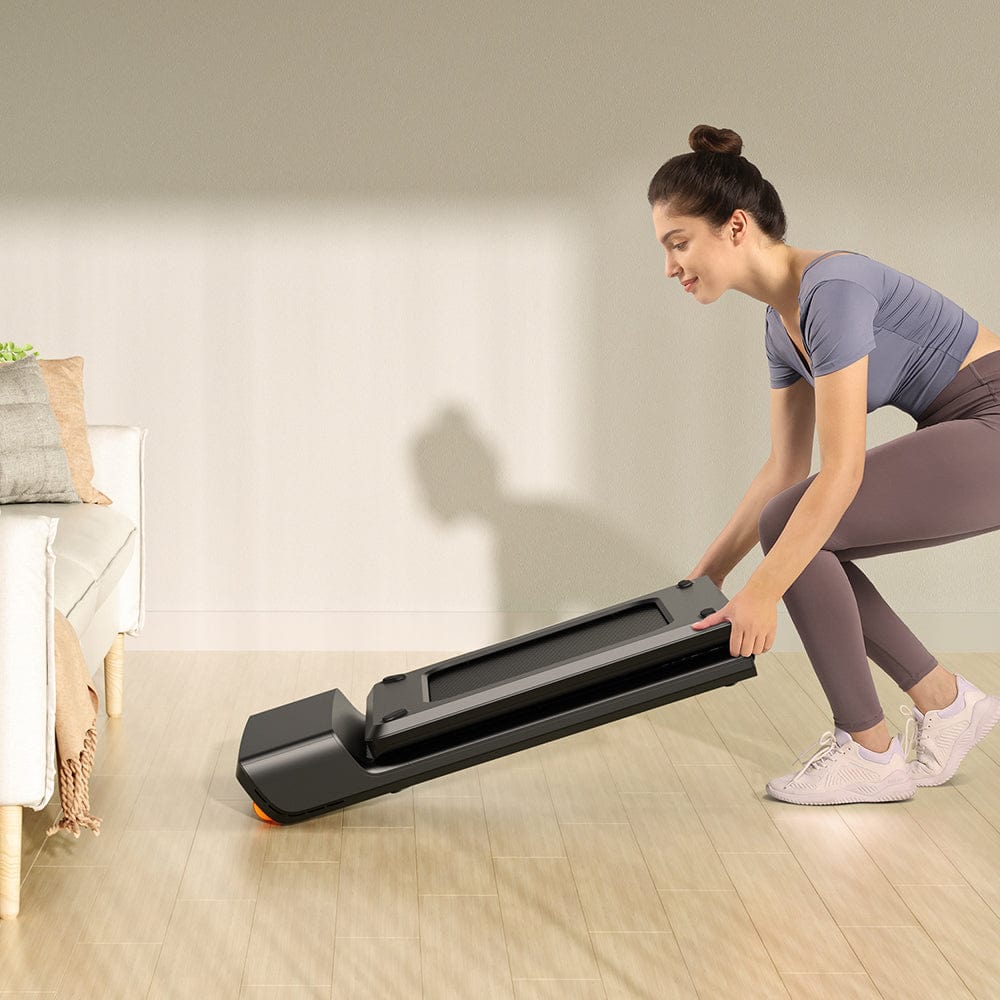

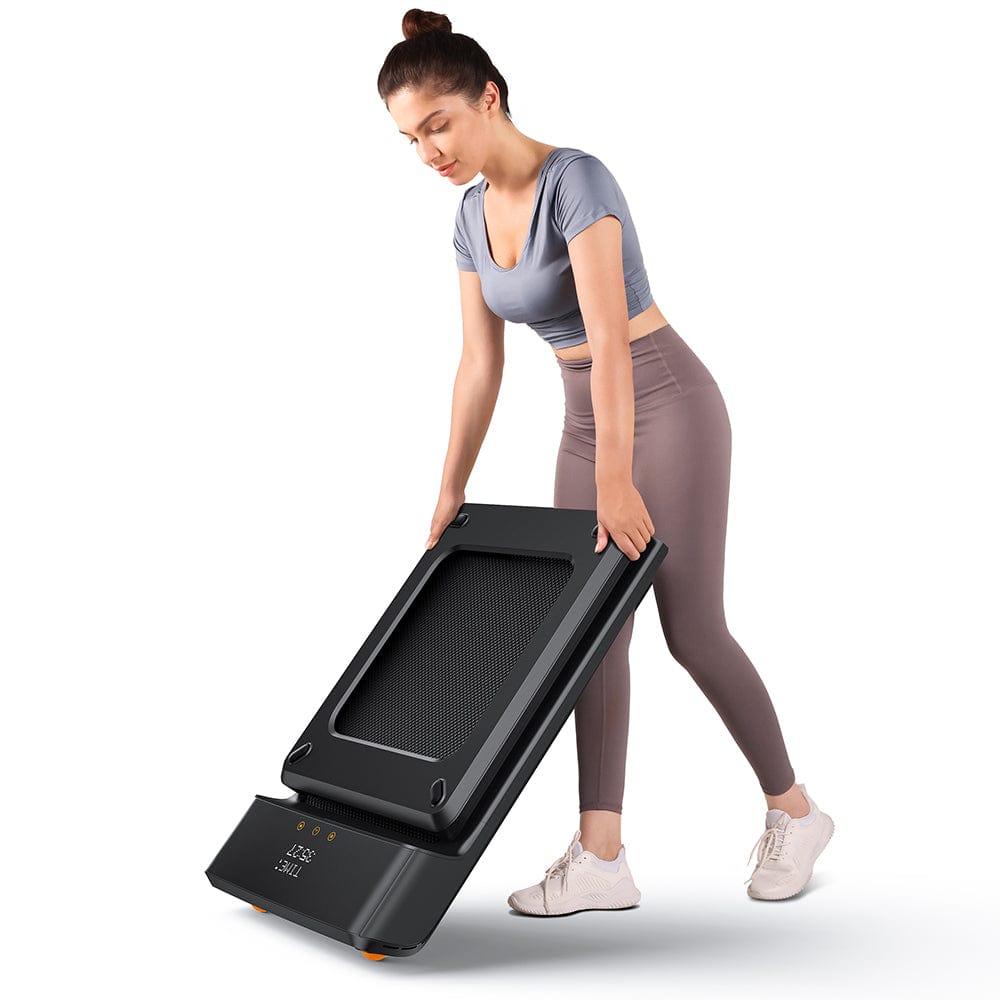

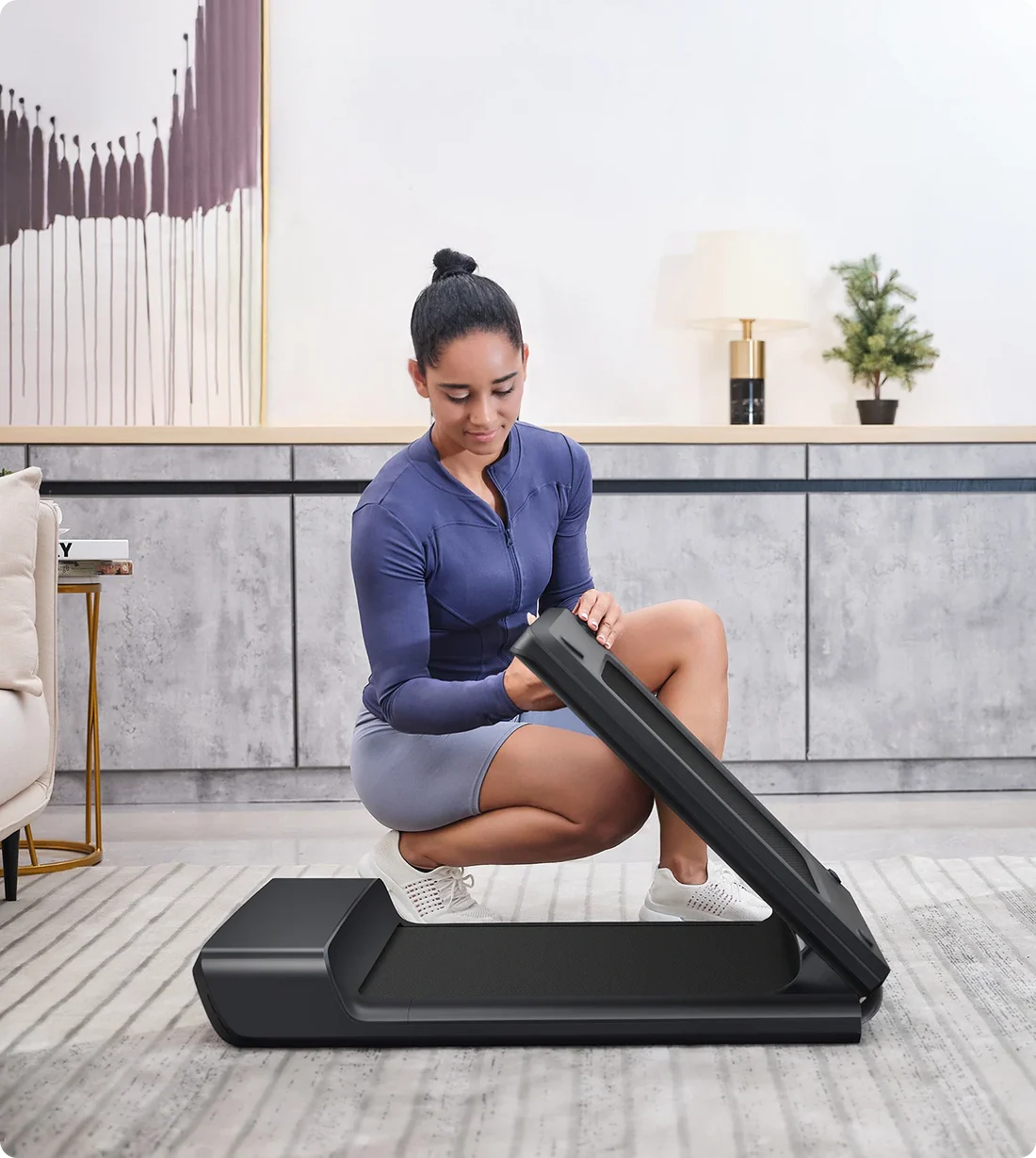

FOLDABLE DESIGN & NO ASSEMBLY REQUIRED

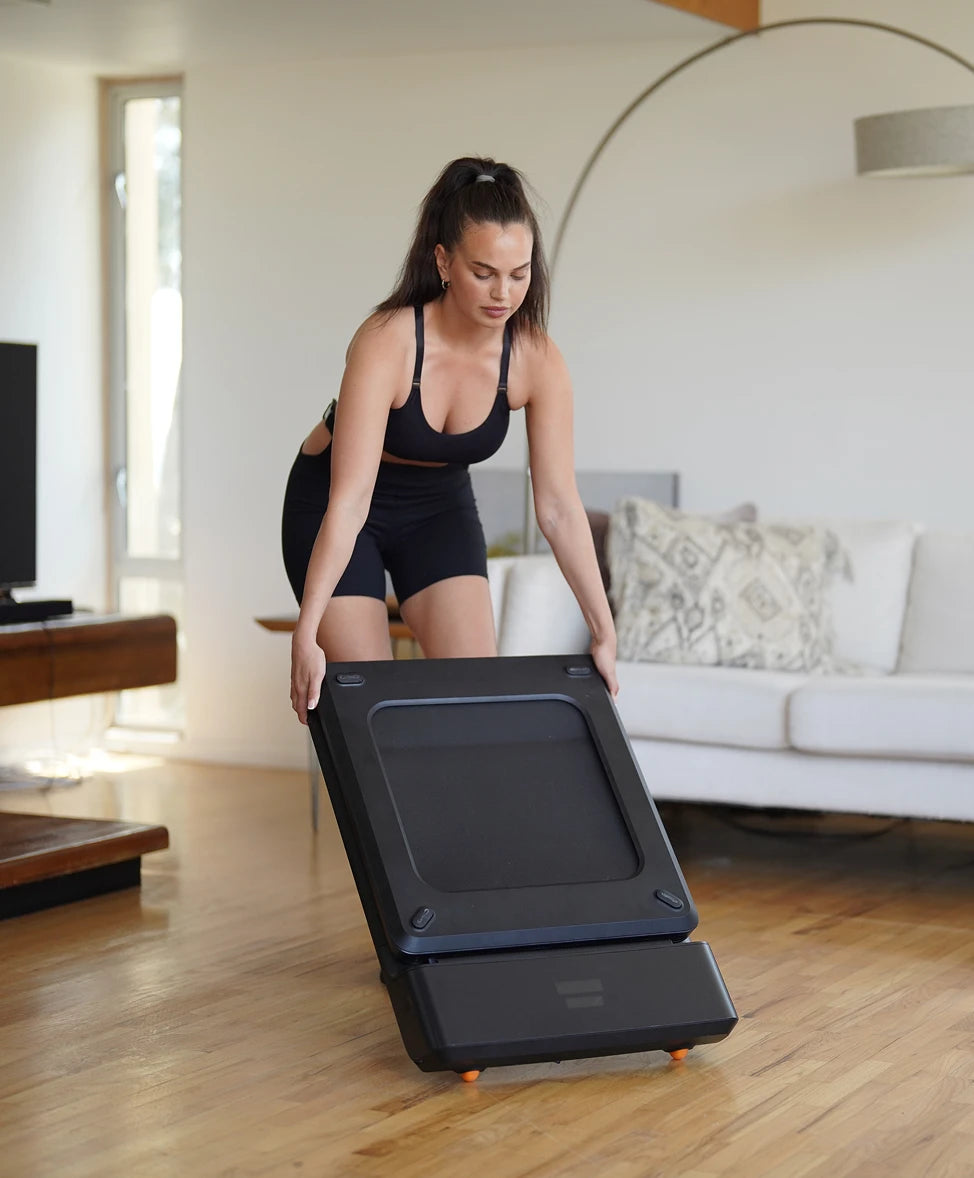

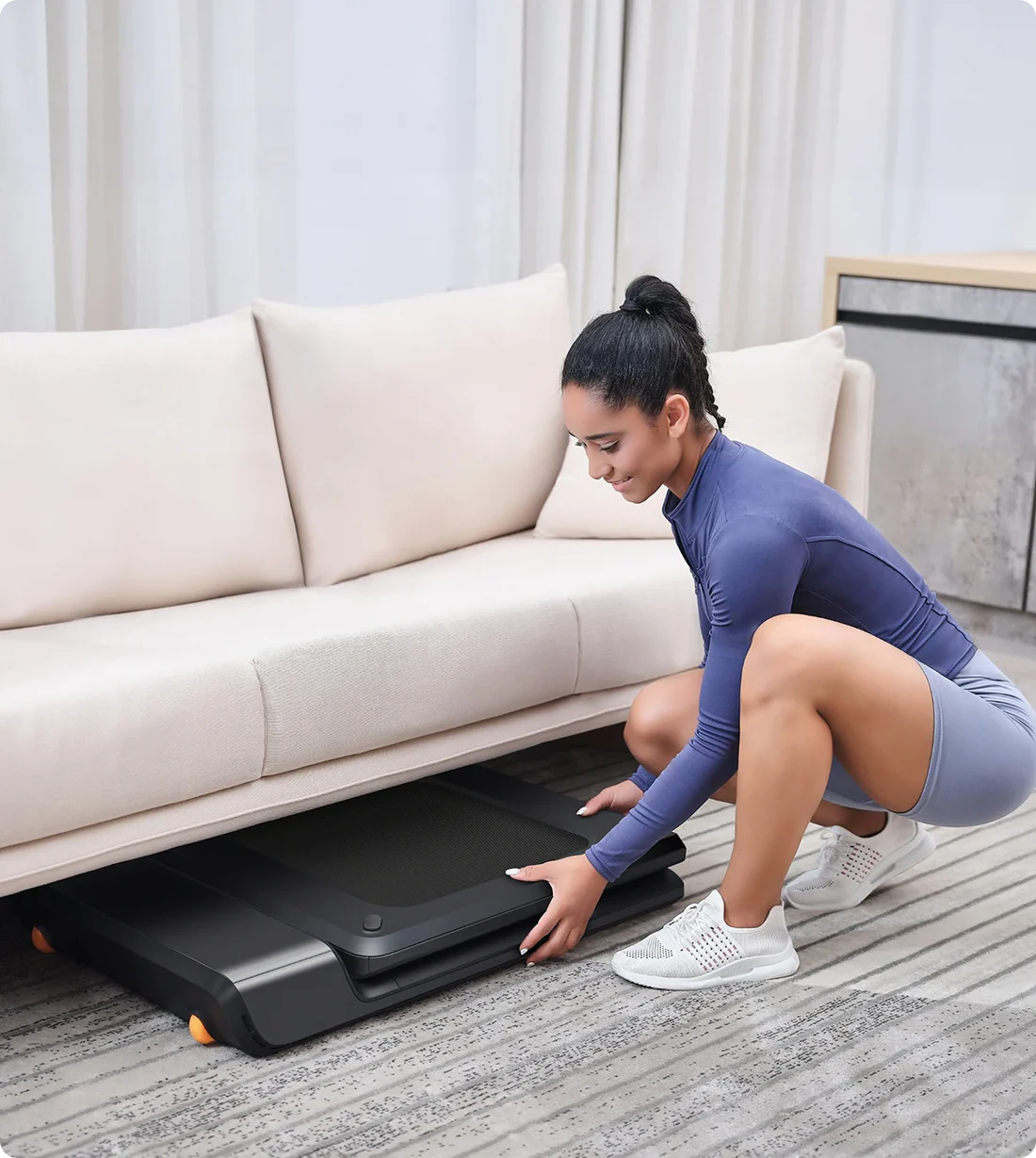

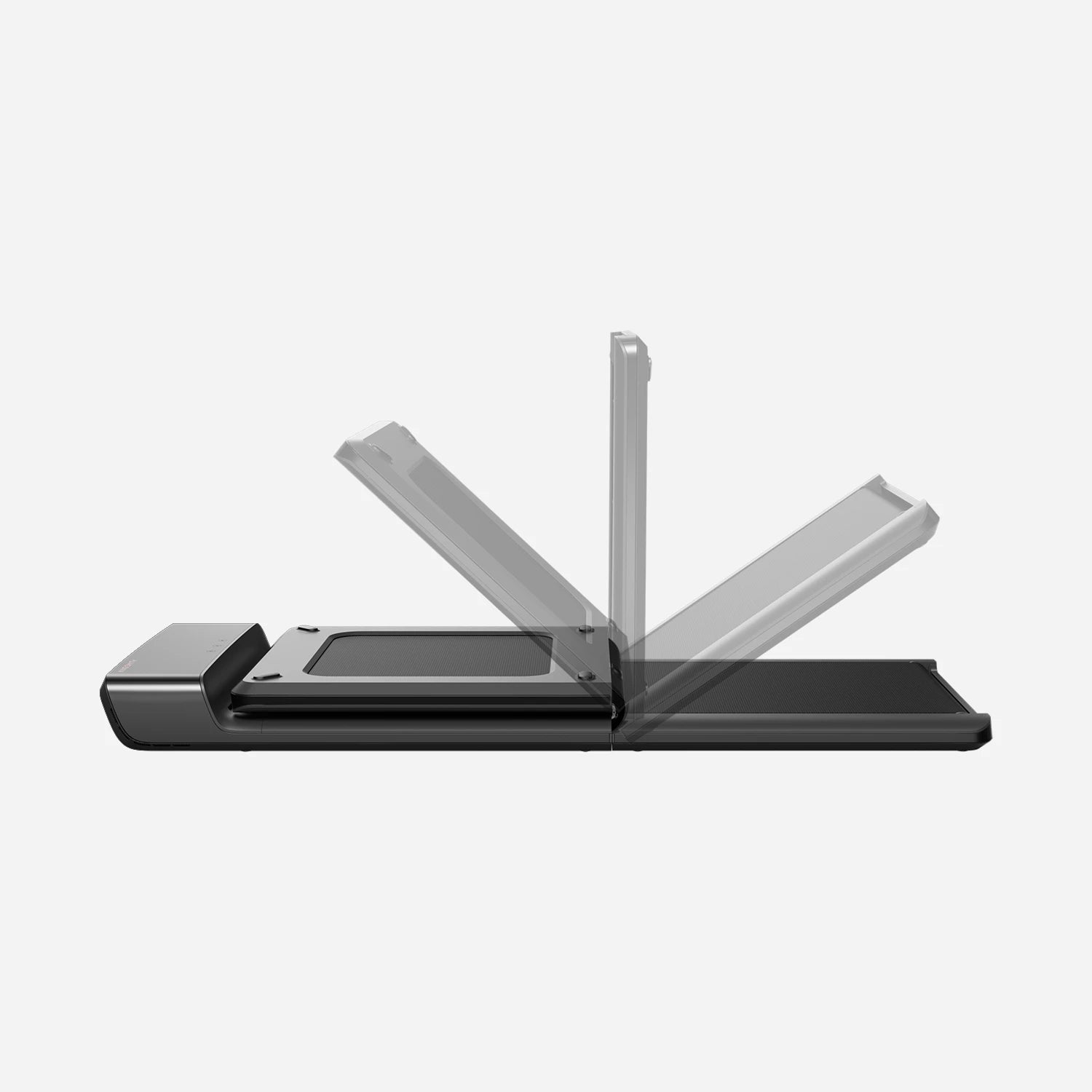

180-degree folding, greatly reducing the occupied area. No assembly required. It can be easily stored under tables, sofas and beds.
-
ULTRA-QUIET WALKING PAD
The WalkingPad features EVA cushioning and an ultra-quiet brushless motor to keep your workout smooth and extremely quiet.
-
ADAPTIVE SPEED CONTROL
In "A" mode, the walking belt's sensor system automatically adjusts the speed from where you land. You can also adjust the speed with the remote or app in manual mode.
-

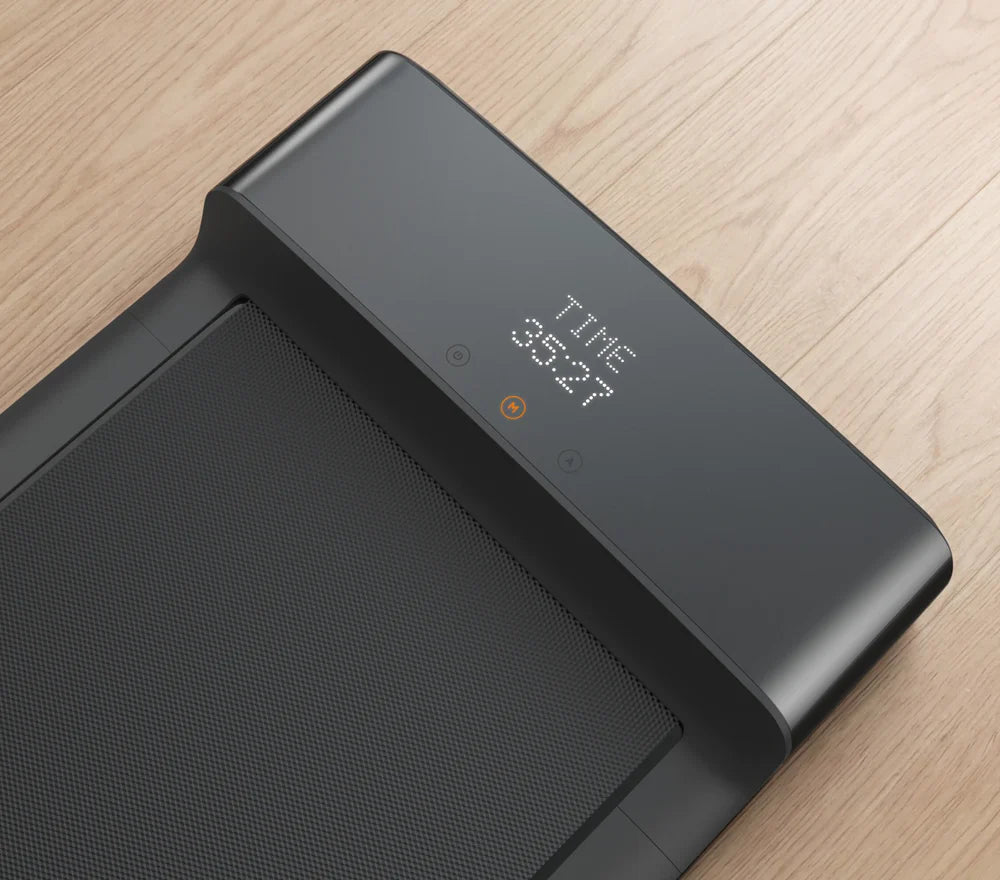

DIGITAL MONITOR & LED DISPLAY
A1 pro treadmill heavy duty offers a clear data display by LED display. And you can also view your time, speed, steps, and calories burned all at the same time with the KS fit App.
No Assembly & Space Saving Design

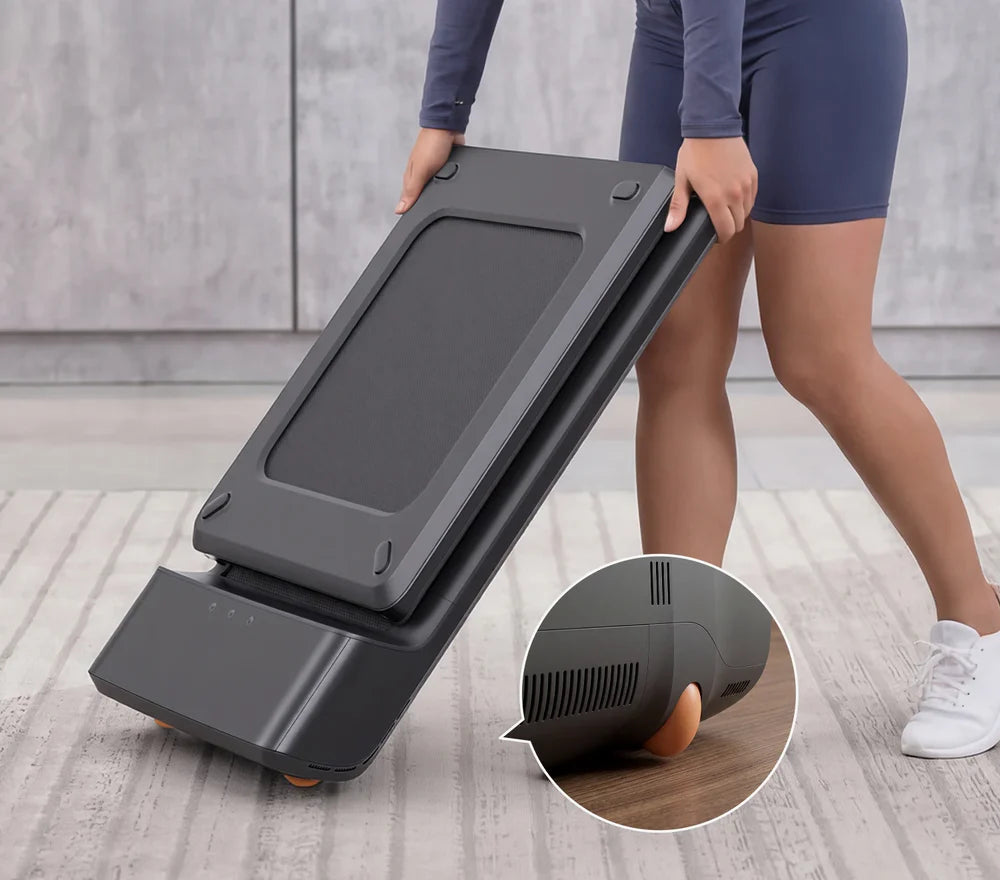

It arrives fully assembled and can be used right out of the box. Compact design fits any space, perfect for home, apartment and office use.

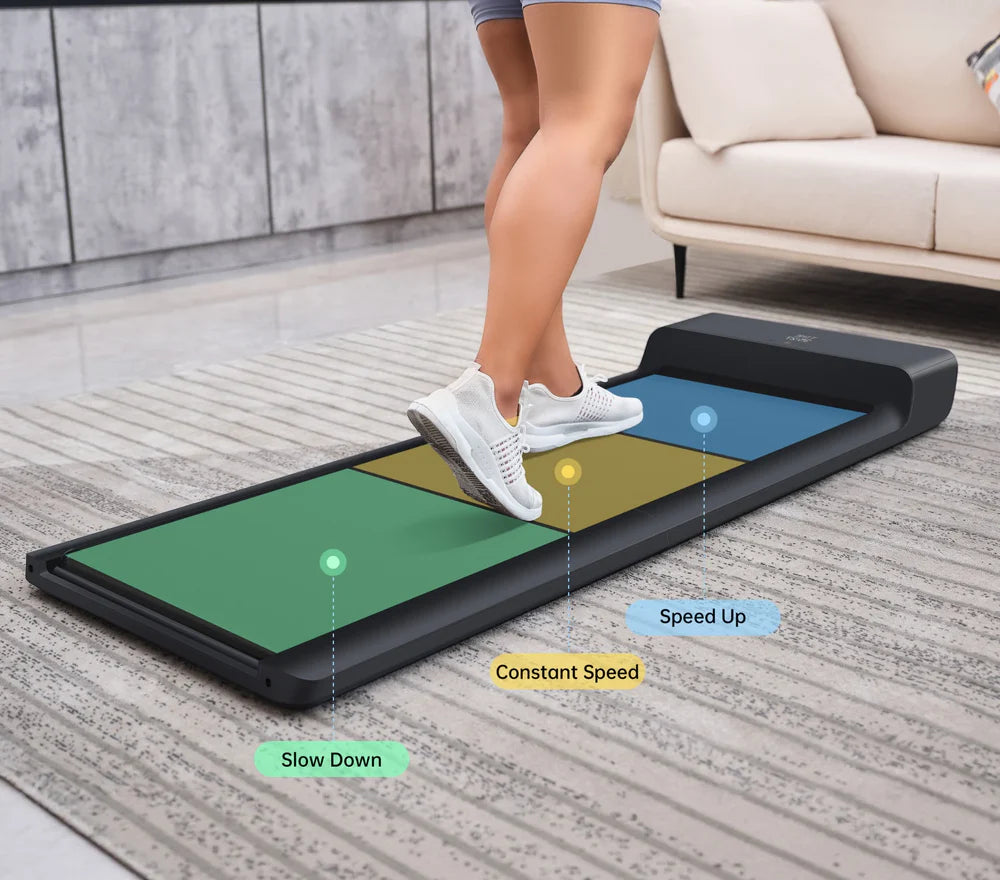

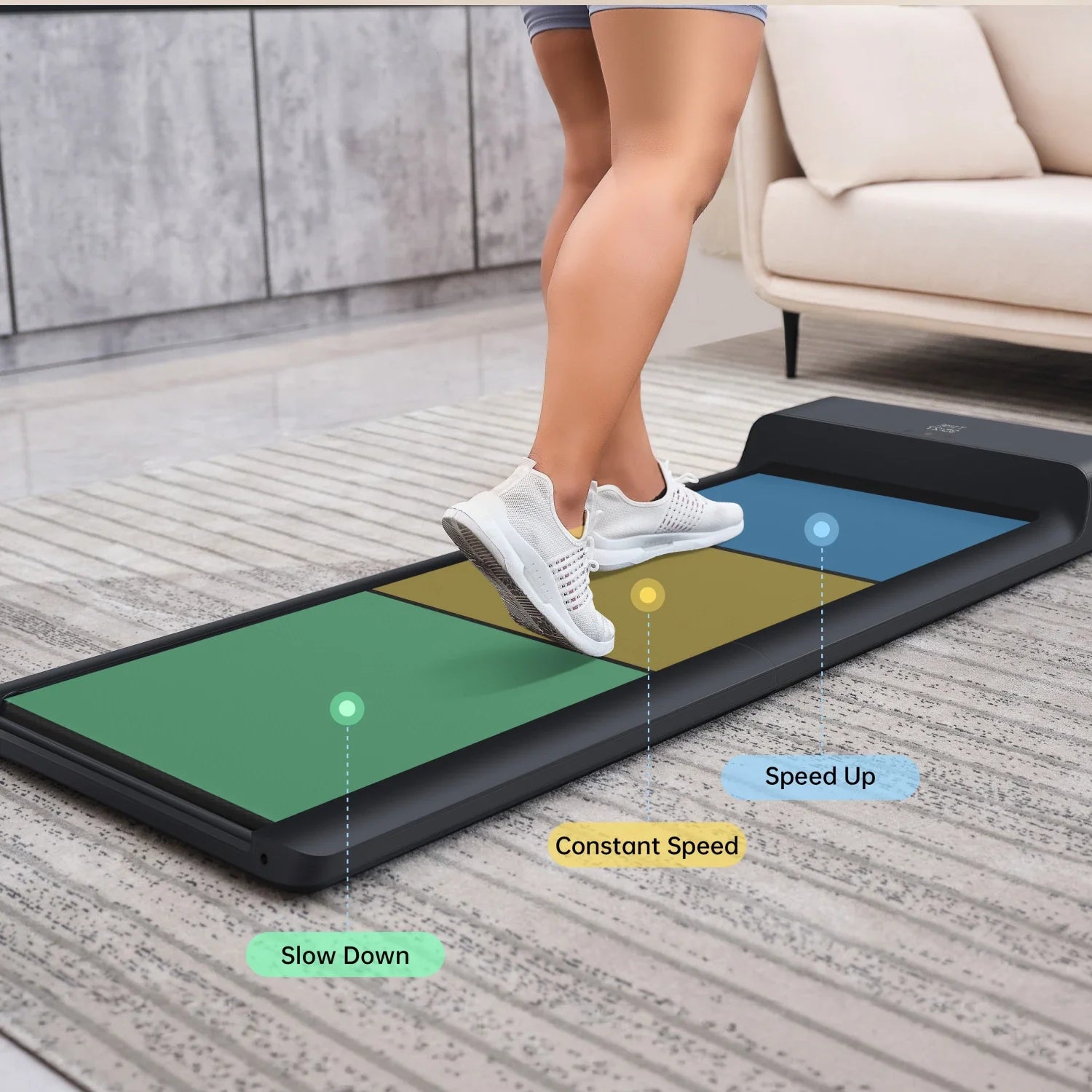

Footstep Induction Speed Control
By the high Precision pressure sensor in the walking treadmill, you can control the WalkingPad in high, medium or slow speed, through footstep on the front(acceleration) zone, middle(uniform velocity) zone or tail (deceleration) zone.

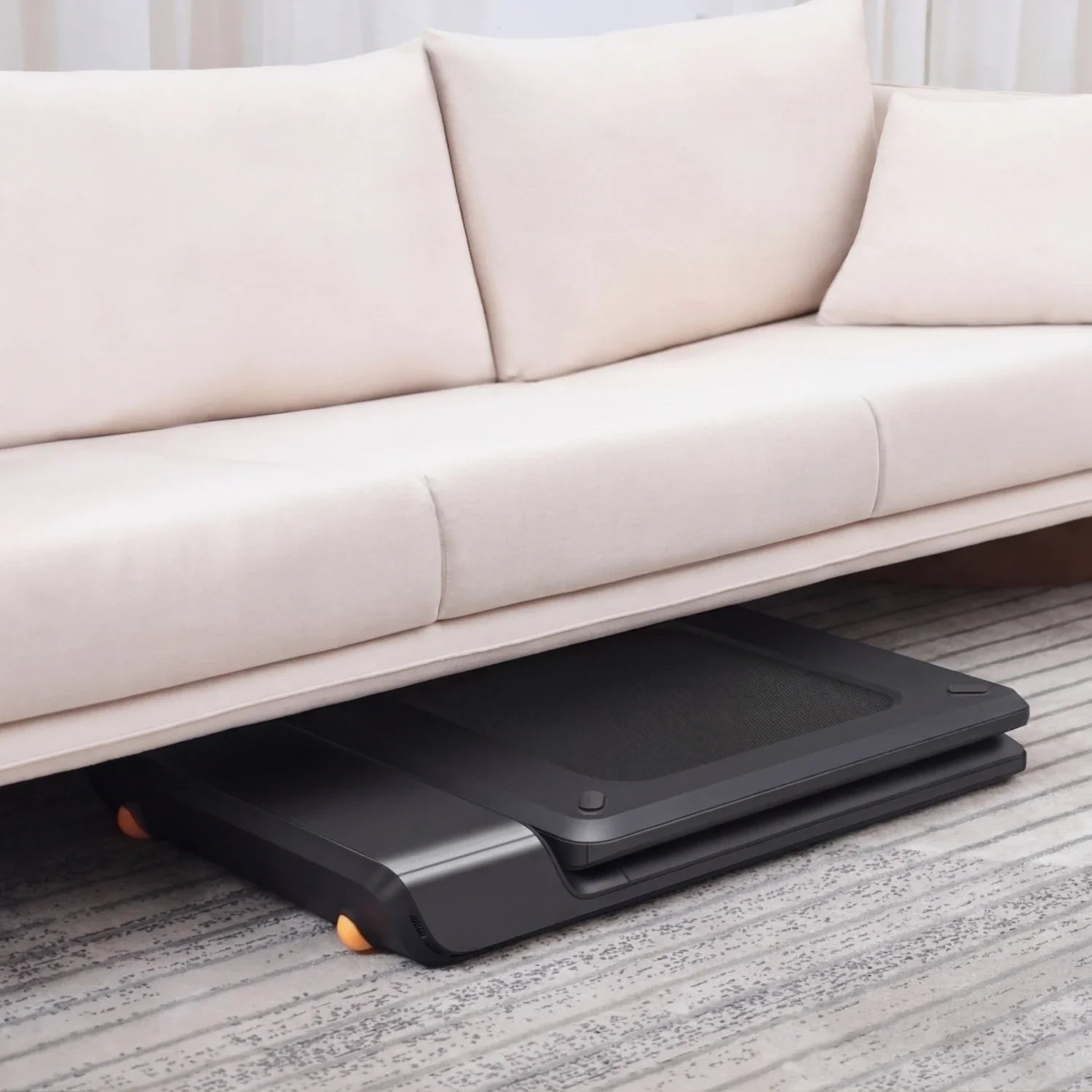

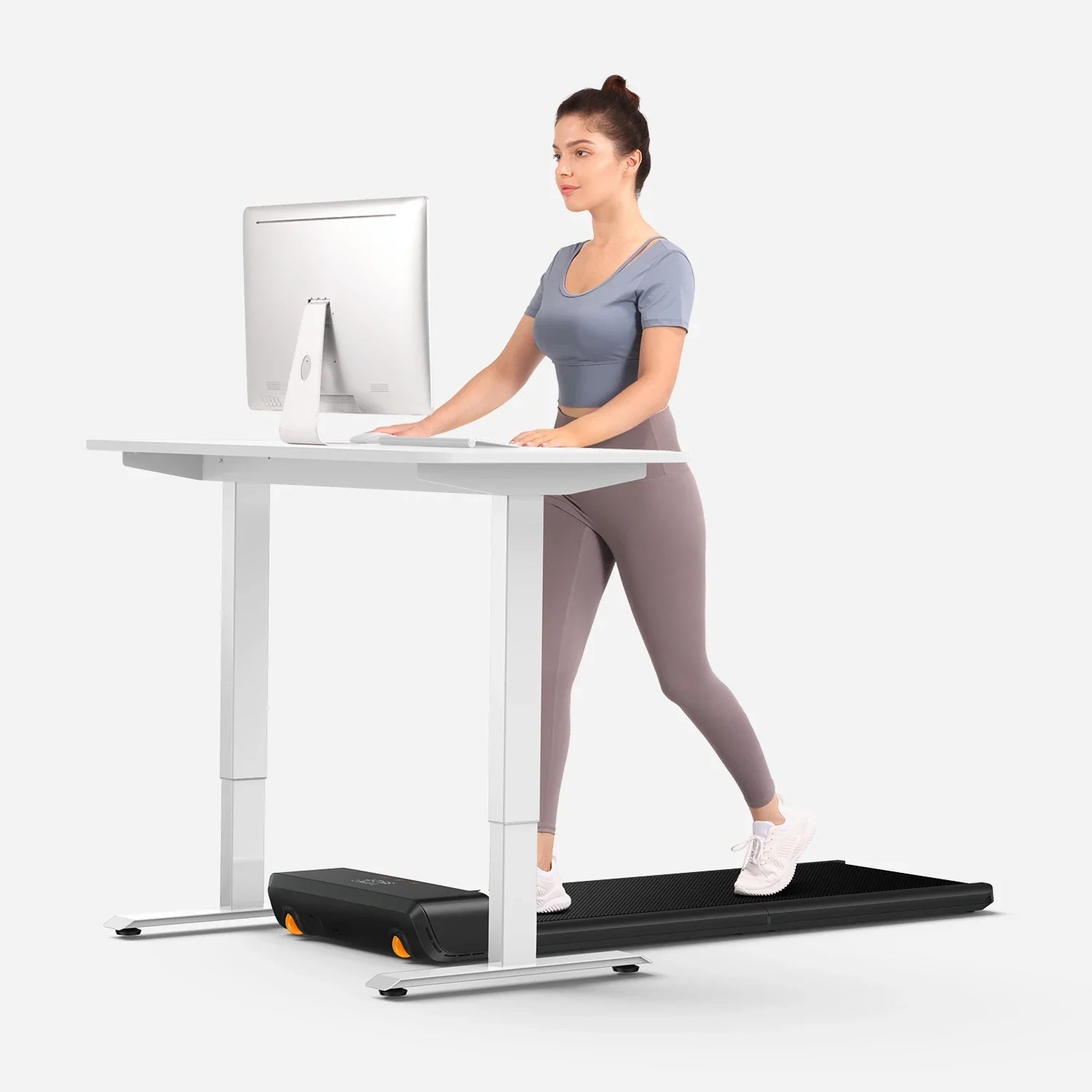

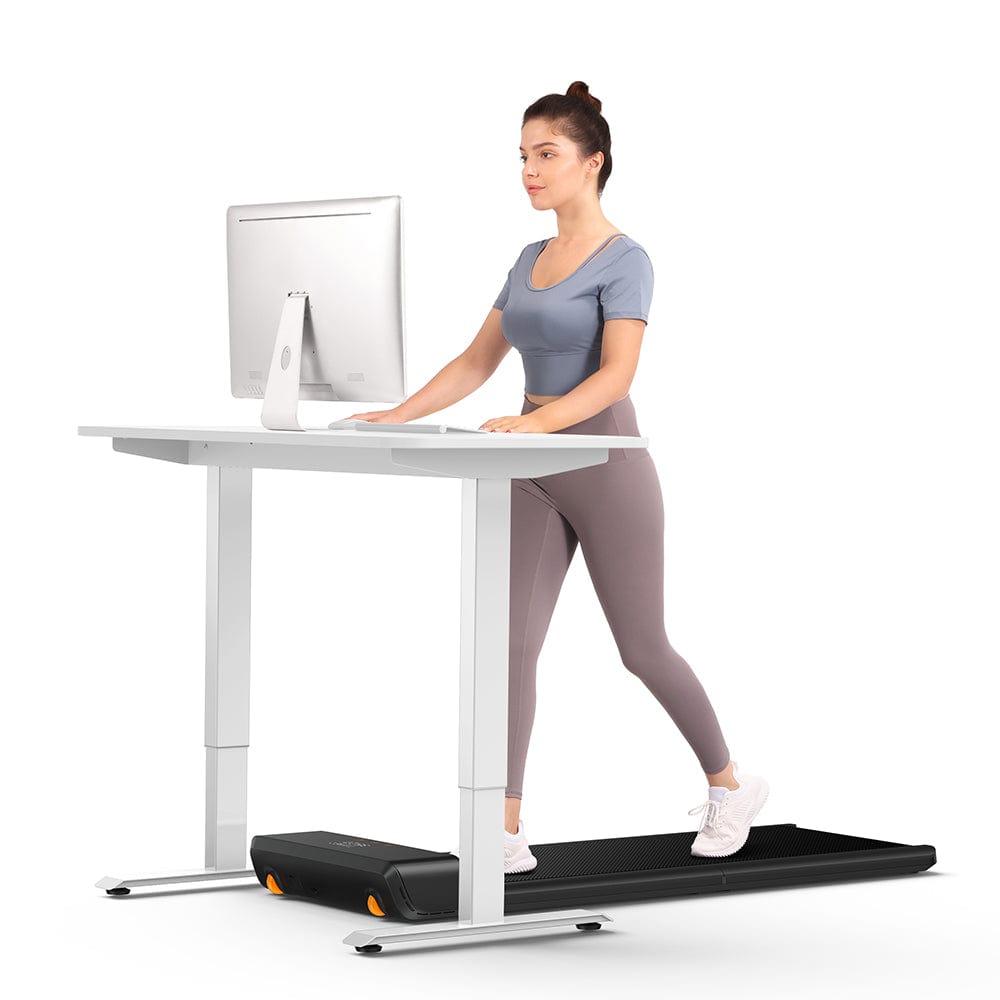

Ideal Under Desk Treadmill For Home Office

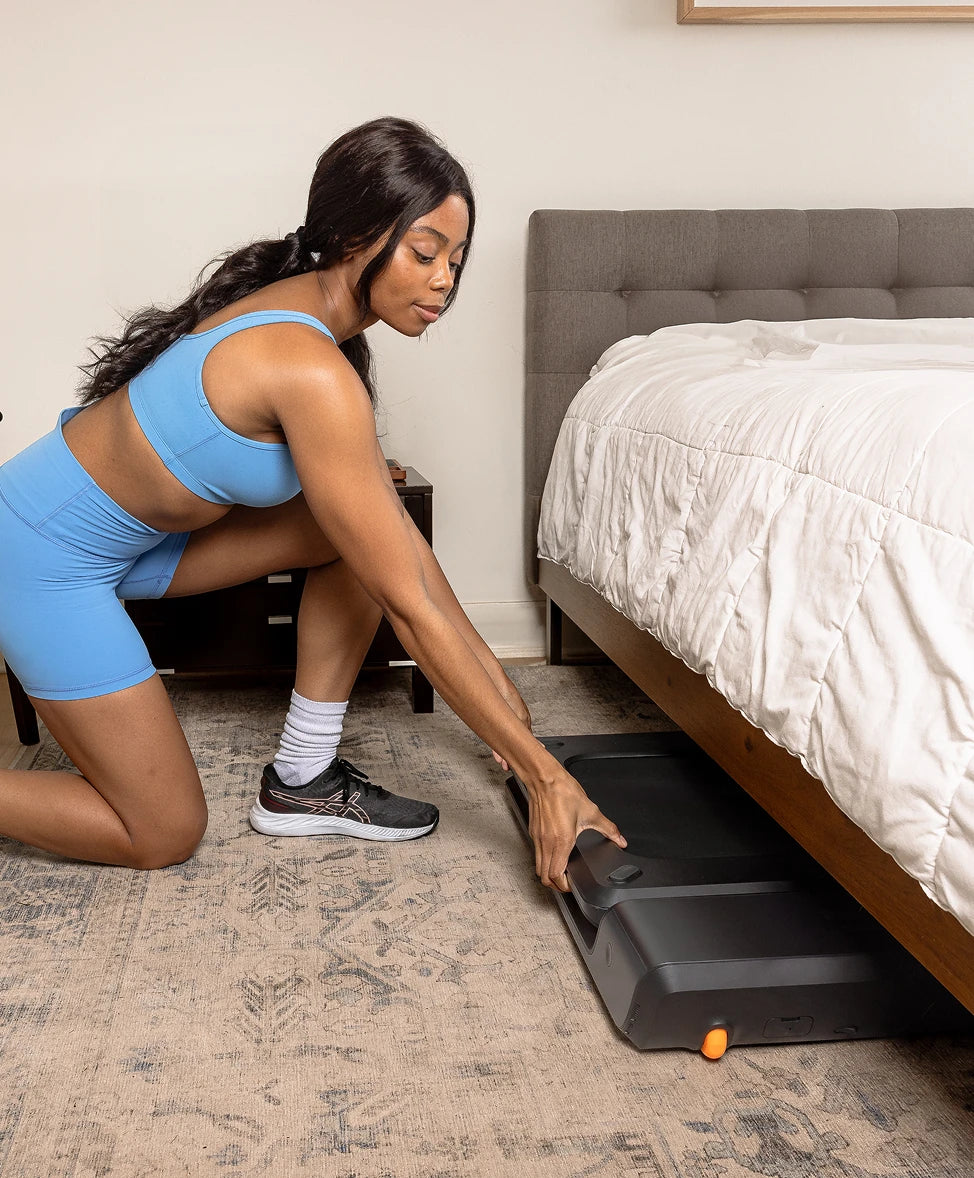

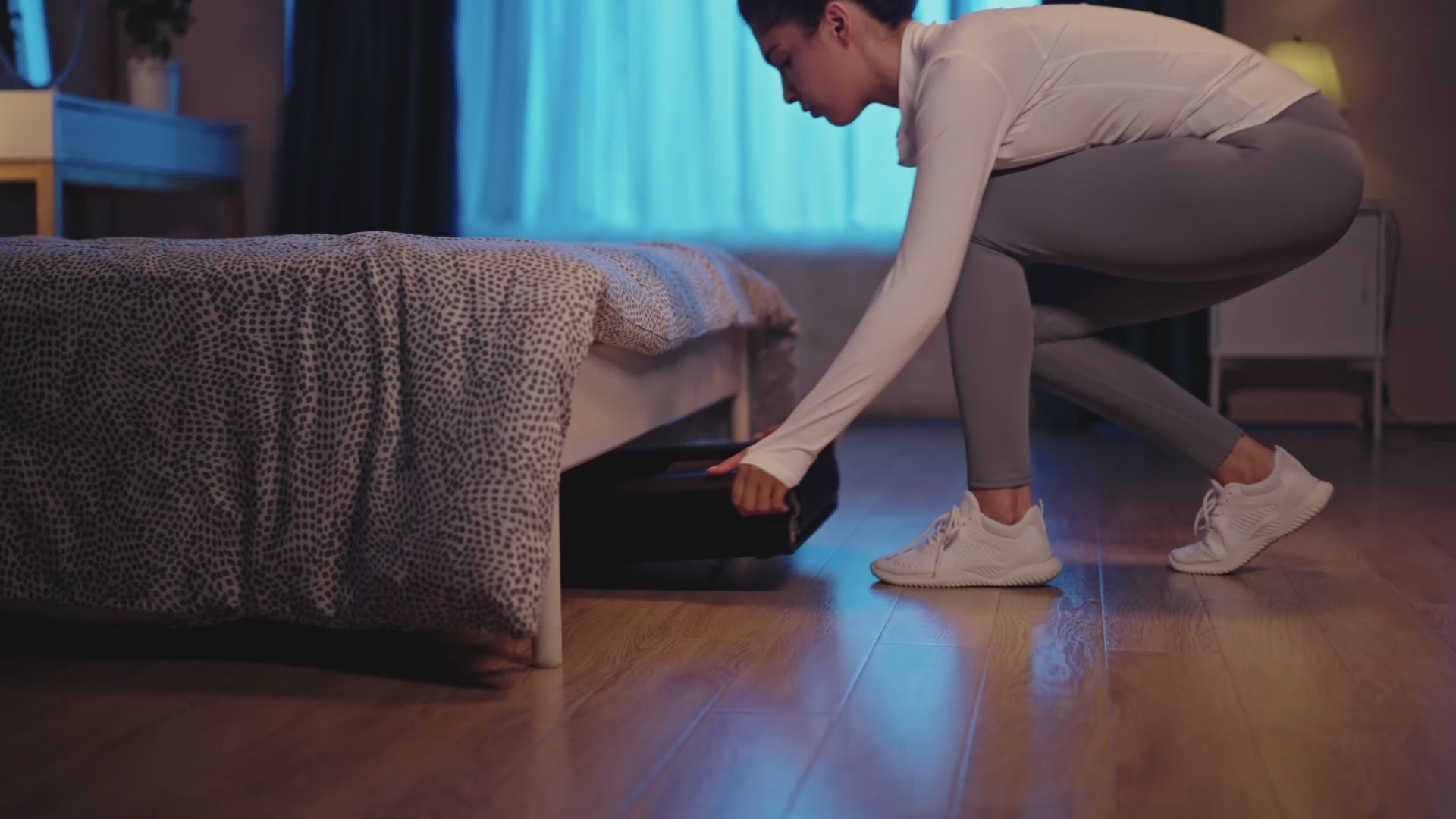

The walking pad treadmill is lightweight and easy to move. You can place it at the bottom of your bed or under the sofa to save space.

Ultra-Quiet Under Desk Walking Pad
0.3-3.7 MPH speed range suitable for walking, jogging, and running; Super quiet motor for noise-free operation; Double protection mechanism ensures safety.

Shock Absorption, Noise Reduction
Shock-absorbing, durable, and anti-static - four layers of careful design will help you regain your motility and engage in mild exercise. With a comfy foot, you'll feel as if you're walking on a plastic track, and your knees will never squeak.

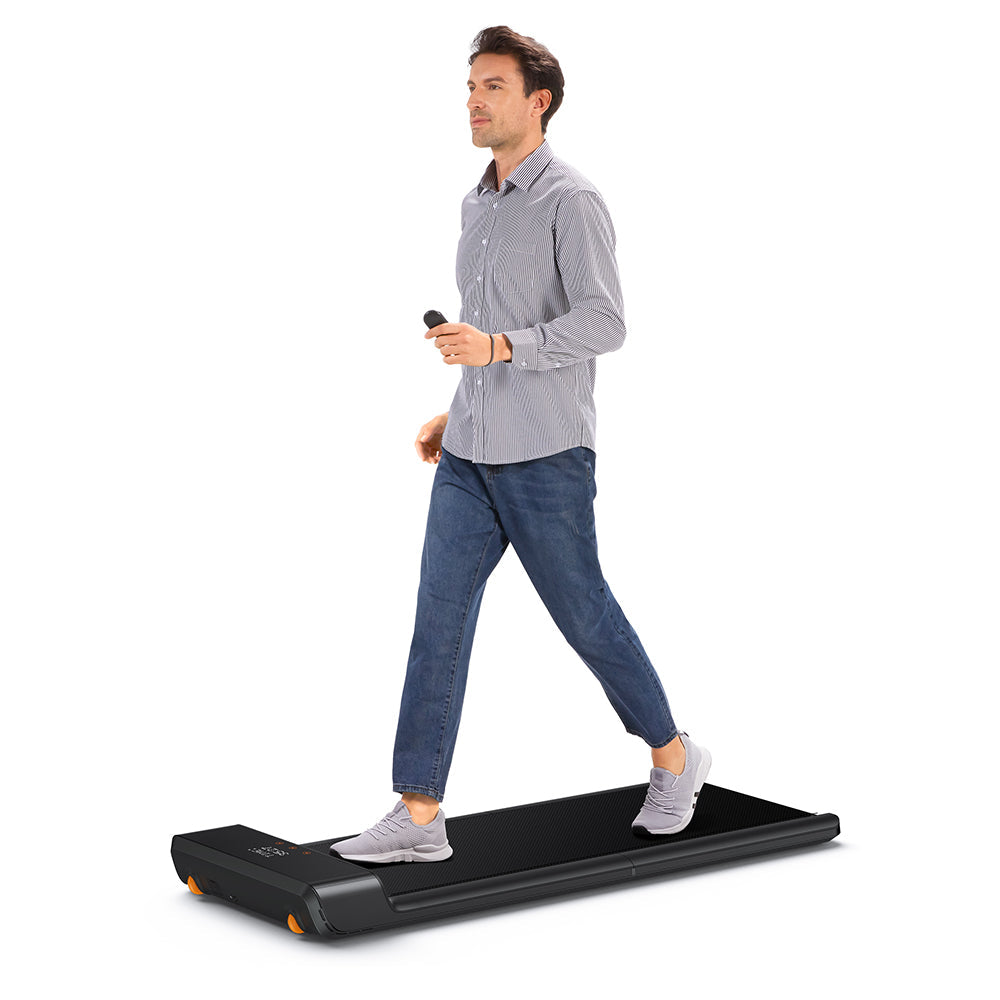

Manual mode(M) Remote Control
In Manual mode, you can operate walkingpad with the remote control. This includes functions such as START & STOP, acceleration and deceleration. After hundreds of times of manual model optimization, the remote control finally has exquisite and simple modeling.

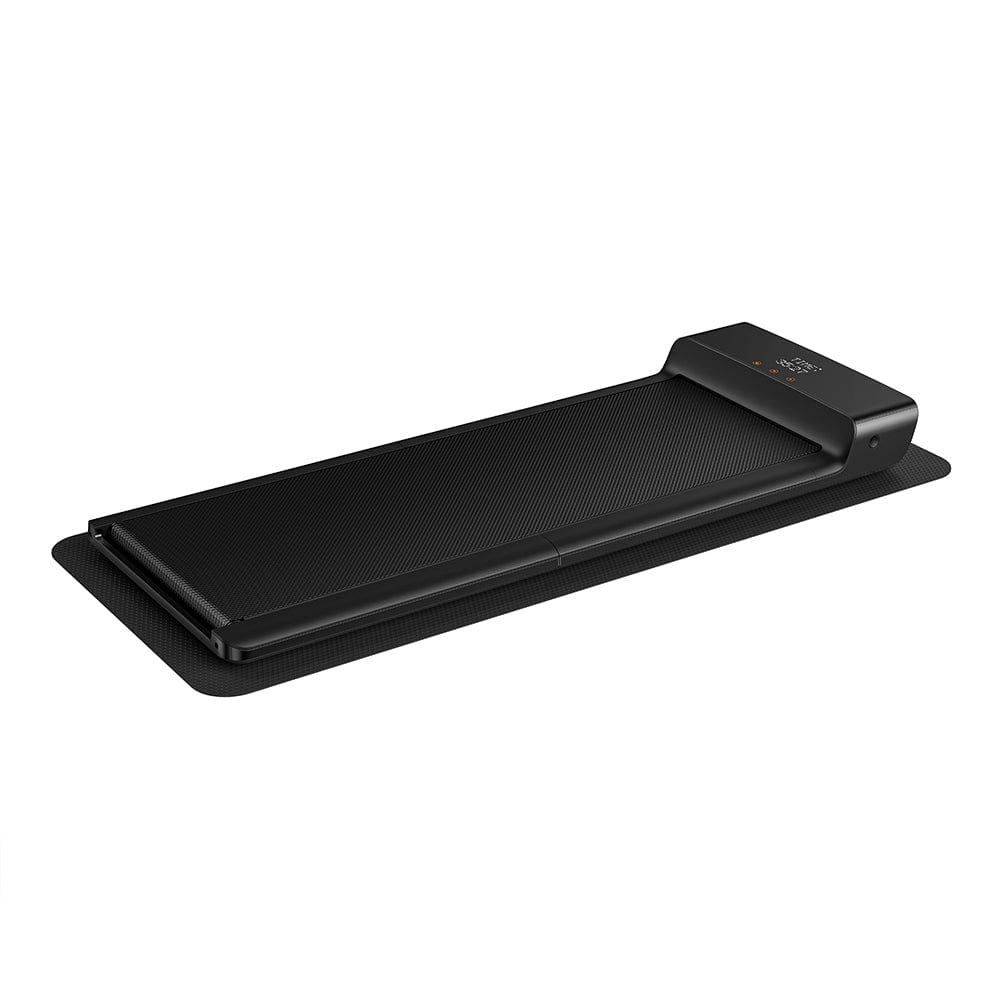

Technical Parameters | |
Product Name : |
WalkingPad A1 Pro Treadmill |
Motor : | Brushless motor |
Power Input : | 932 W |
Panel Craftsmanship : | High precision IML injection molding |
Display Feedback : | Time, Speed, Distance, Calories, Steps |
Speed Range : | 0.5 - 3.72MPH / 6KPH |
Double Fold Technology : | YES |

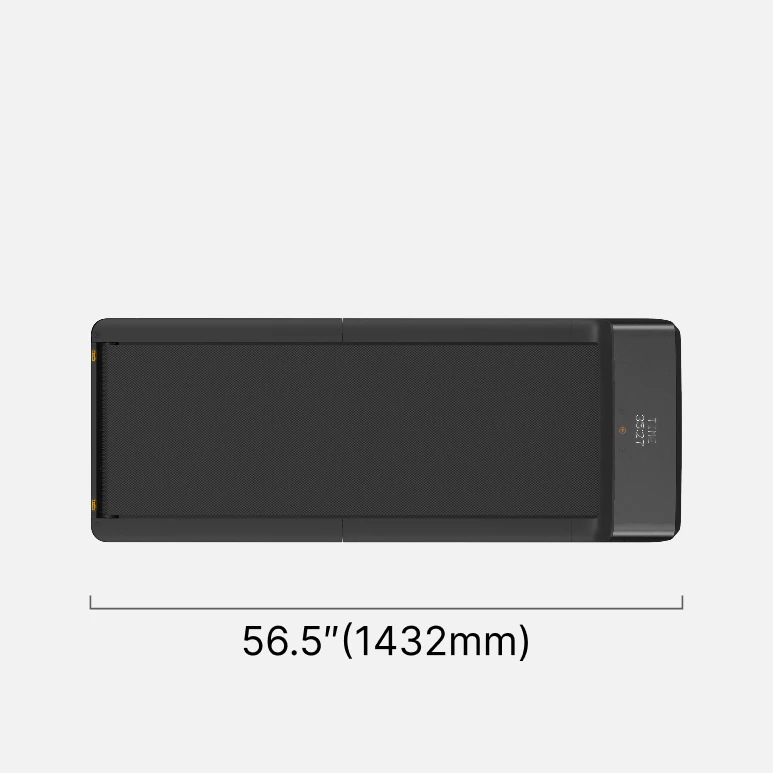

Unfold Size : | 56.37 * 21.5 * 5in / 1432 * 547 * 129mm |

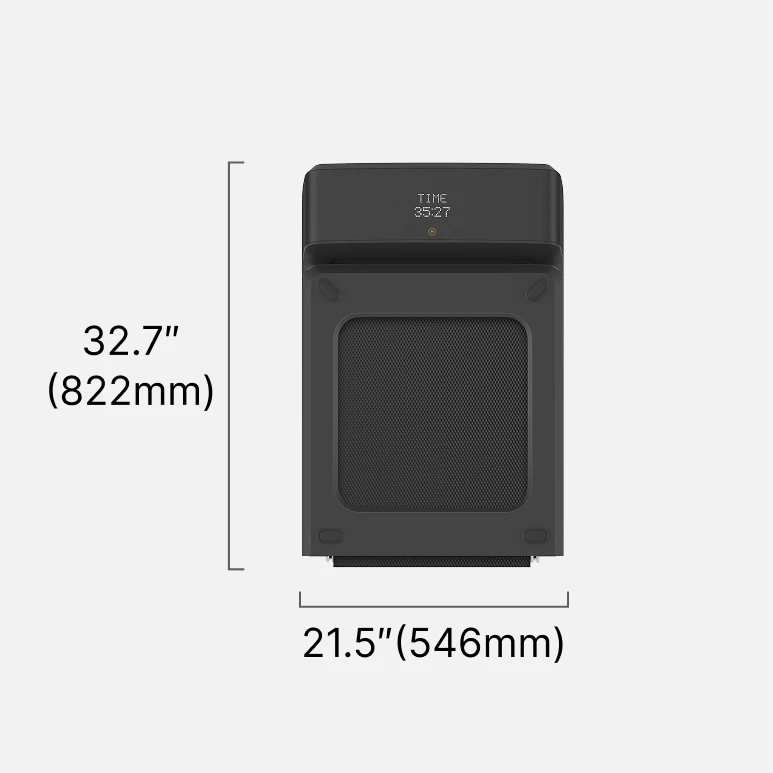

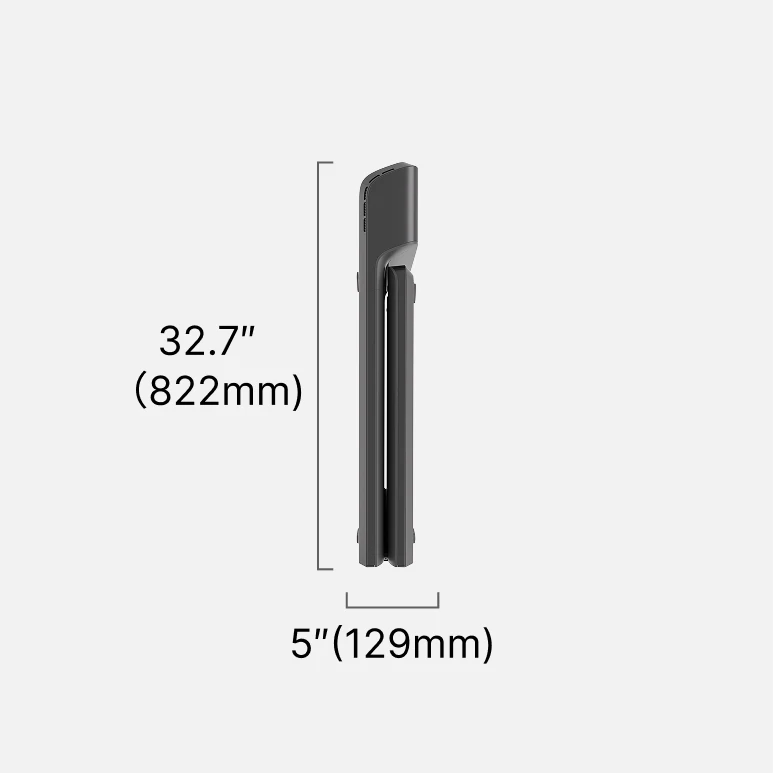

Folded Size : | 32.5 * 21.5 * 5in / 822 * 547 * 129mm |
User Capacity : | 220 lbs / 100KG |
Walking Area : | 47 * 16.5in / 1200 * 415mm |
Mode : | Standby, Manual, Automatic |
Package Included | |
WalkingPad * 1 | Power Cord * 1 |
Remote Control * 1 | Remote Control Lanyard * 1 |
Allan Wrench * 1 | Dimethicone * 1 |
Packing Detail | |
Net Weight : | 61.73 lbs / 28KG |
Gross Weight : | 68.34 lbs / 31KG |
Additional Option | |
APP : | Available for both IOS & Android |
Color option : | Quiet Black |
FAQs
How to register the app?
Please download the KS Fit APP from google play store or Apple APP store.
Before registering the APP, please change the country into yours on the homepage of the APP. Because phone number registeration is only available for Chinese users. Oversea customers should register with emails.
What if I receive a product and want to return it?
Please contact our after-sales staff:support@walkingpad.com when you encounter problems. If you want to know more about the return, here is the return policy : Click Here
Is The Treadmill Loud?
The efficient brushless motor maintains a constant power output and generates just 75dB of noise at maximum speed under no-load conditions, allowing you to operate at full speed without disturbing downstairs neighbors.
