Some people may be confused about the differences between these 6 WalkingPad models. So we make this comparison chart for you to learn about WalkingPad models.
Performance &lndicators
|
WalkingPad R1 Pro
|
WalkingPad R2
|
WalkingPad X21
|
![]() |
![]() |
![]() |
|
Remote Control
|
Yes
|
Yes
|
N/A
|
NFC Pairing
|
N/A
|
N/A
|
Yes
|
Handrail Control
|
N/A
|
N/A
|
Yes
|
Display Data
|
Time, Speed, Distance, Calories, Steps
|
Time, Speed, Distance, Calories, Steps |
Time, Speed, Distance, Calories
|
Motor
|
Brushless
|
Brushless | Brushless |
APP Availability
|
KS fit (iOS & Android )
|
KS fit (iOS & Android ) | KS fit (iOS & Android ) |
Sport Mode
|
Running/Walking Mode
|
Running/Walking Mode
|
Running Mode
|
Foot-Sensing Speed Control
|
Yes
|
Yes
|
N/A
|
Handrail
|
Yes,with phone holder
|
Yes,with storage box and phone holder
|
Detachable Phone holder
|
Speed Range
|
Walking Mode: 0.5-6km/h Running Mode: 0.5-10km/h
|
Walking Mode: 0.5-6km/h Running Mode: 0.5-12km/h
|
1-12km/h
|
Maximum Load
|
110kg (240 lbs)
|
110kg (240 lbs) | 110kg (240 lbs) |
Expansion Dimensions
|
1460*720*900 mm
|
1452*720*1032 mm
|
1419*711*1053 mm
|
57.5"*28"*35.5"
|
57"*28"*40.5"
|
56"*28"*41.5"
|
|
Folding Dimensions
|
980*720*155 mm
|
1000*720*162 mm
|
1007*711*225 mm
|
38.5"*28"*6"
|
39"*28"*6"
|
39.6"*28"*9"
|
|
Working Area
|
1200 *440mm
|
1200*440mm
|
1210*460mm
|
47" *17"
|
47" *17"
|
47.6" *18"
|
|
Net Weight
|
33 kg (72 lbs)
|
36 kg (81 lbs)
|
38 kg (84 lbs)
|
Tread Height
|
77mm (3")
|
77mm (3")
|
96mm (3.8")
|
Power Input
|
918 W
|
918 W
|
918 W
|
Frequency
|
50- 60Hz
|
50- 60Hz
|
50- 60Hz
|
Performance &lndicators
|
WalkingPad P1
|
WalkingPad C2
|
WalkingPad A1 Pro
|
![]() |
![]() |
![]() |
|
Display Data
|
N/A
|
Time, Speed, Distance, Calories, Steps
|
Time, Speed, Distance, Calories, Steps
|
Motor
|
Brush
|
Brushless
|
Brushless
|
APP Availability
|
KS fit (iOS & Android )
|
KS fit (iOS & Android )
|
KS fit (iOS & Android )
|
Sport Mode
|
Walking /Jogging
|
Walking /Jogging
|
Walking /Jogging
|
Mode For Walking
|
Manual mode/ Automatic mode
|
Manual mode/ Automatic mode
|
Manual mode/ Automatic mode
|
Handrail
|
Optional for extra accessory
|
Optional for extra accessory
|
Optional for extra accessory
|
Speed Range
|
0.5-6km/h
|
0.5-6km/h
|
0.5-6km/h
|
Maximum load
|
100 kg/220 lbs
|
100 kg/220 lbs
|
Available options: 105 kg/230 lbs 136 kg/300 lbs
|
Expansion Dimensions
|
1432 x547 x129mm
|
1445x518x125 mm
|
1432 x547 x129mm
|
56.5" x 21.5" x 5"
|
56.9" x 20.4" x 4.9"
|
56.5" x 21.5" x 5"
|
|
Folding Dimensions
|
822x547x129 mm
|
825 x 518 x 136 mm
|
822x547x129 mm
|
32.5" x 21.5" x 5"
|
32.5" x 20.4" x 5.4"
|
32.5" x 21.5" x 5"
|
|
Working Area
|
1200x415 mm
|
1200x400 mm
|
1200x415 mm
|
47" x 16.5"
|
47" x 15.7"
|
47" x 16.5"
|
|
Net Weight
|
28 kg / 62 lbs
|
25 kg / 55 lbs
|
27 kg / 59 lbs
|
Applicable
|
14 ~ 60 years old
|
14 ~ 60 years old
|
14 ~ 60 years old
|
Power Input
|
746 W
|
735 W
|
932 W
|
Frequency
|
60 Hz
|
50/60 Hz
|
50/60 Hz
|
-

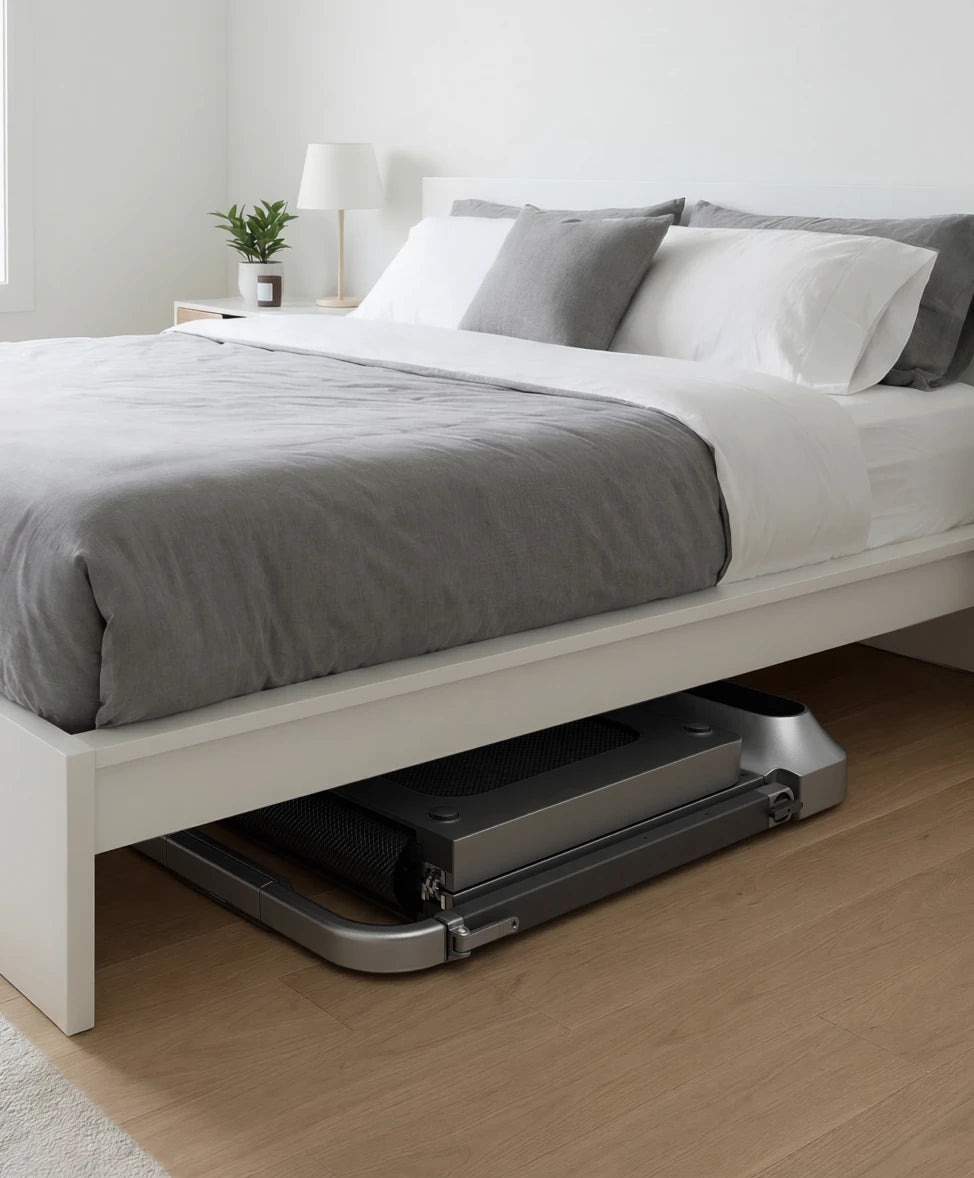

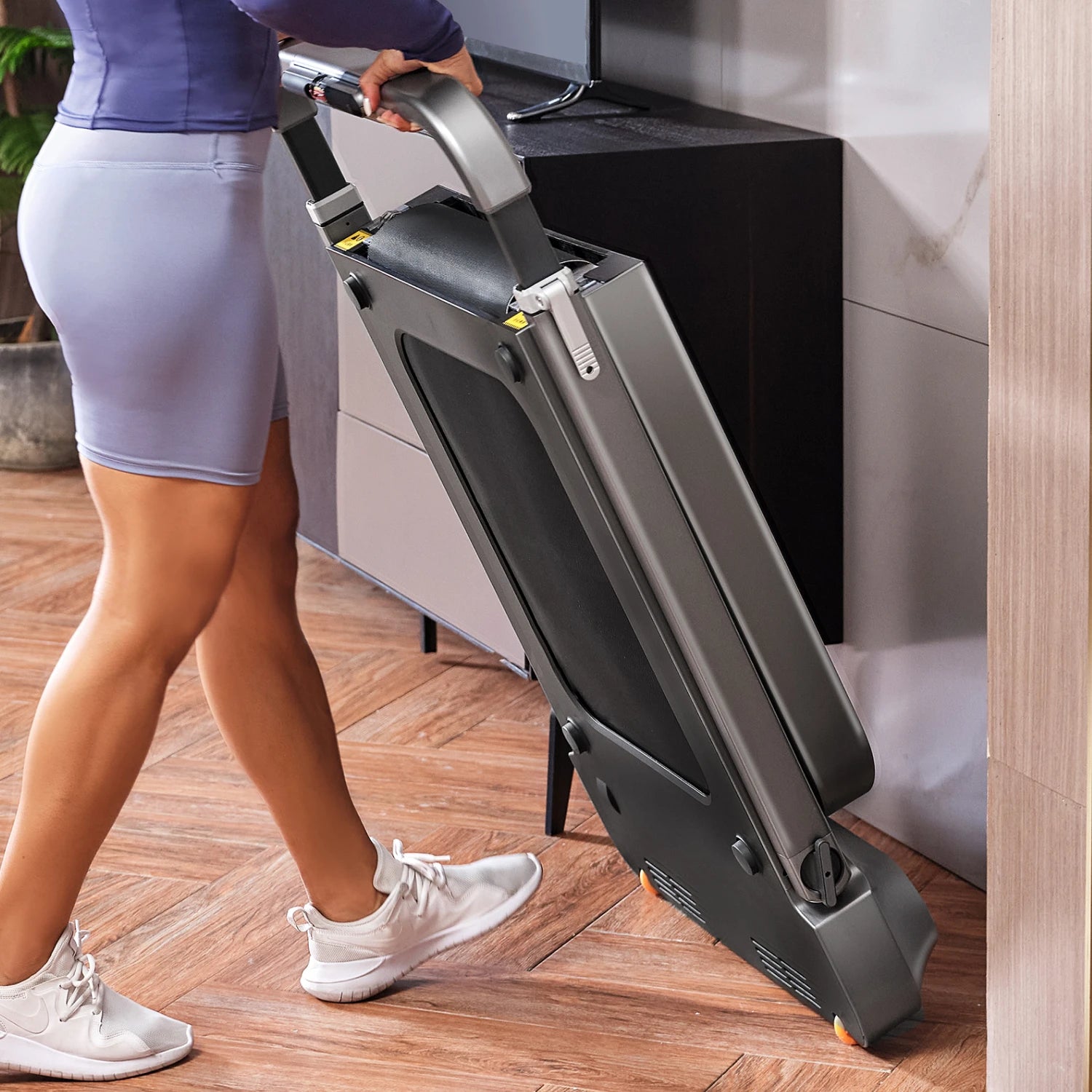

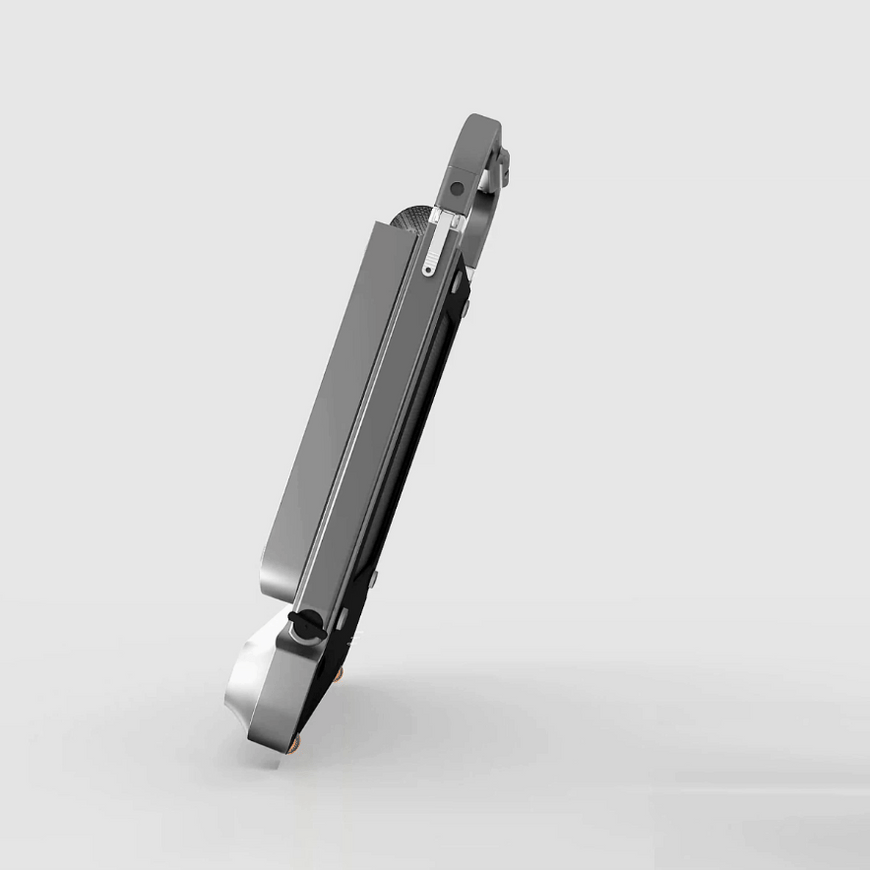

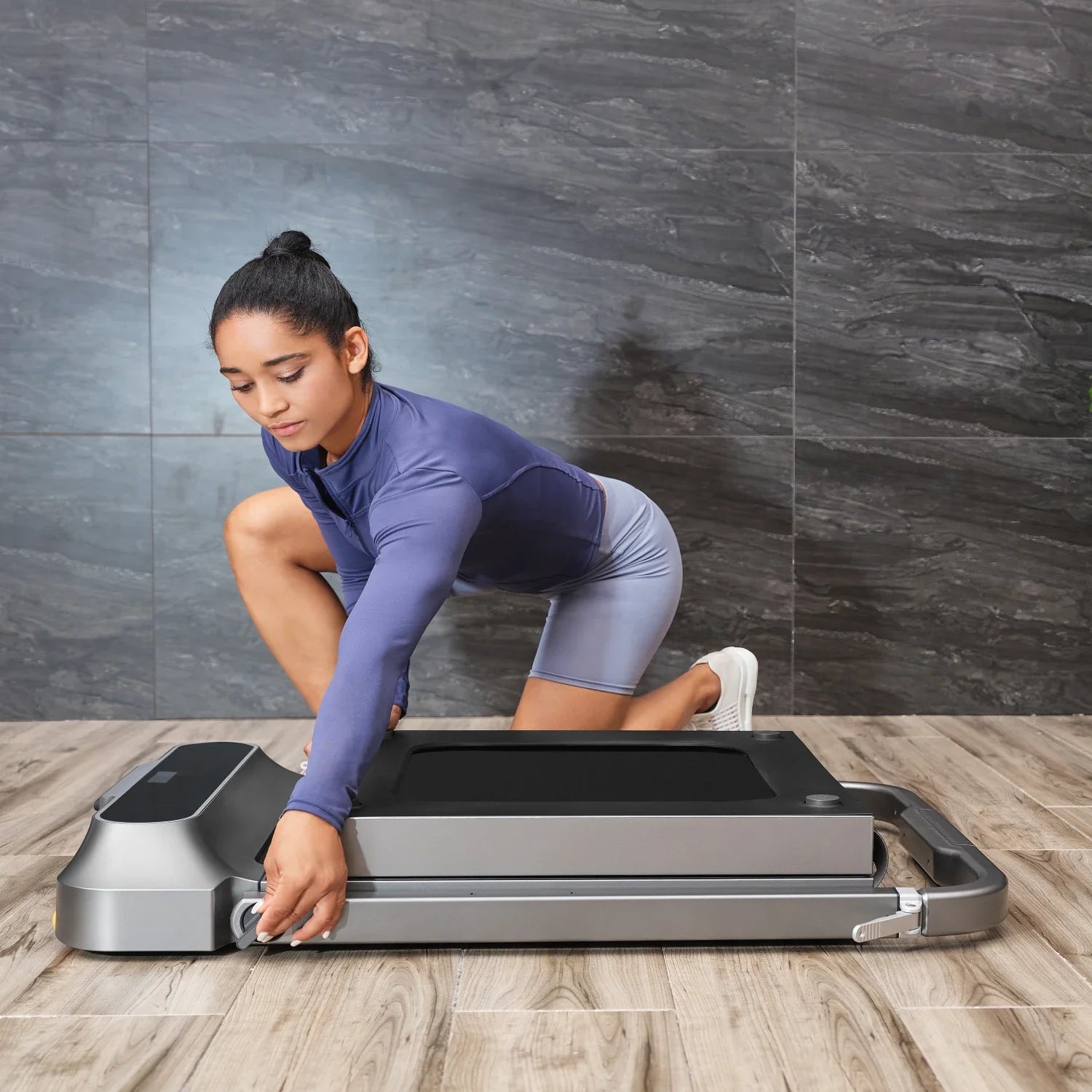

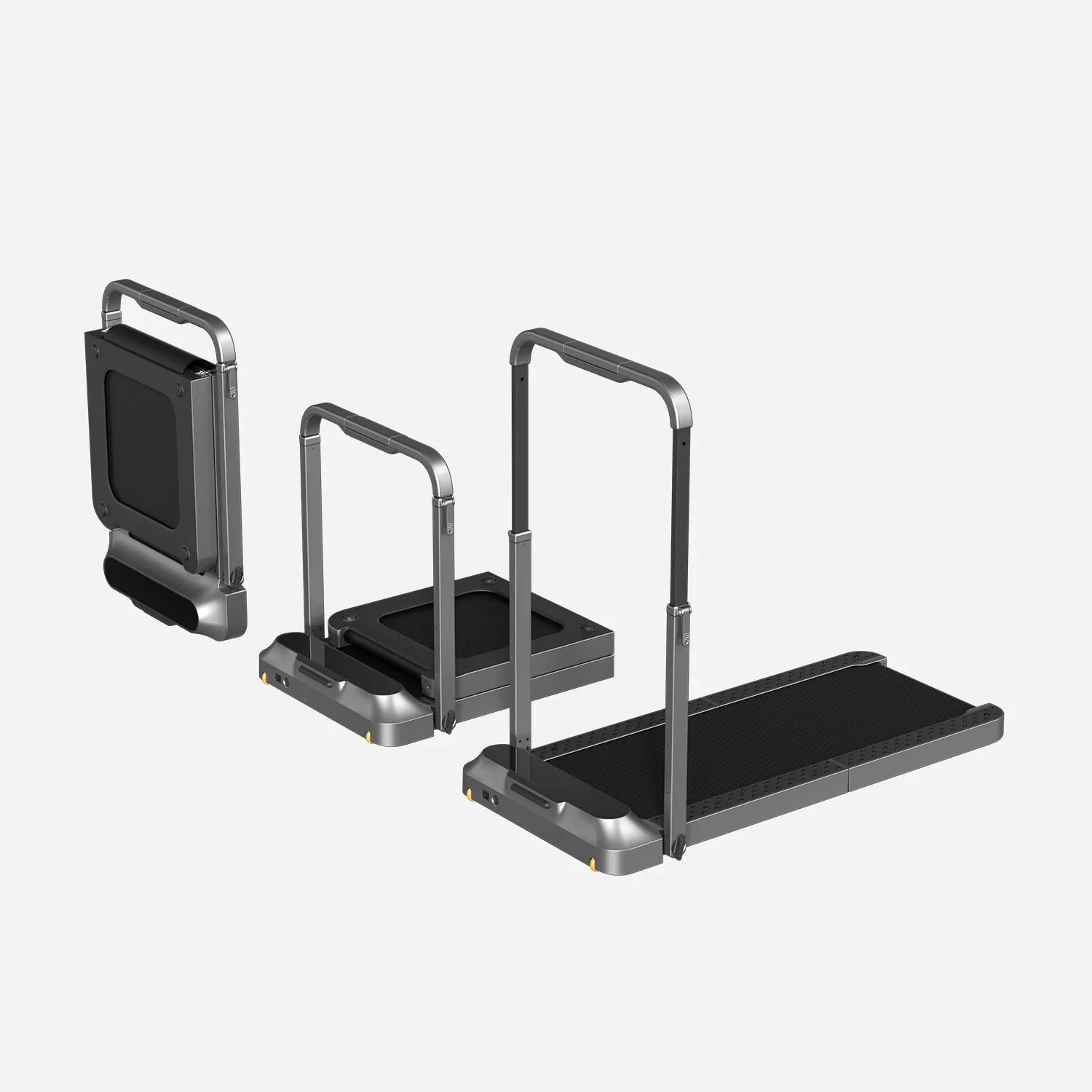

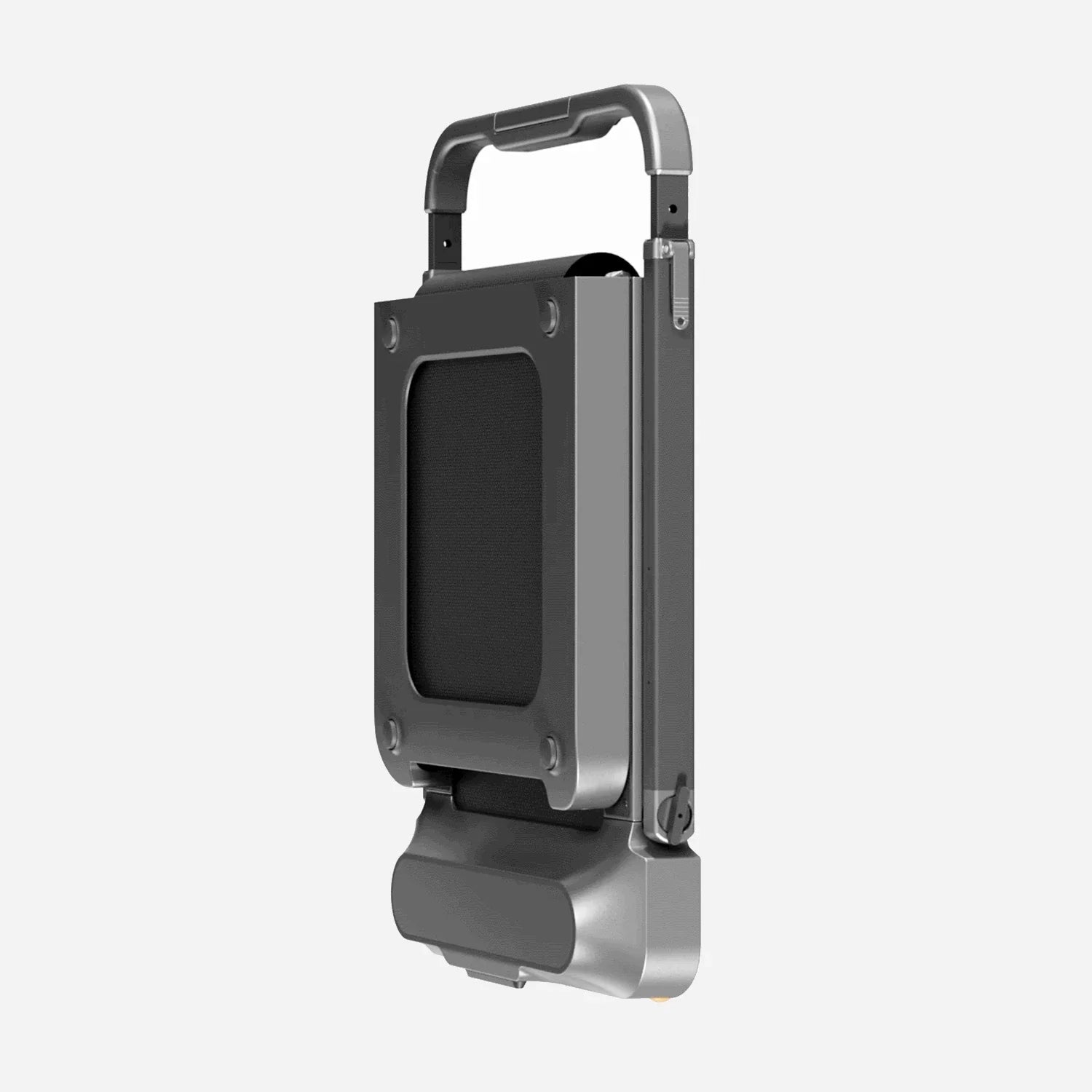

NO ASSEMBLY & SPACE SAVING DESIGN

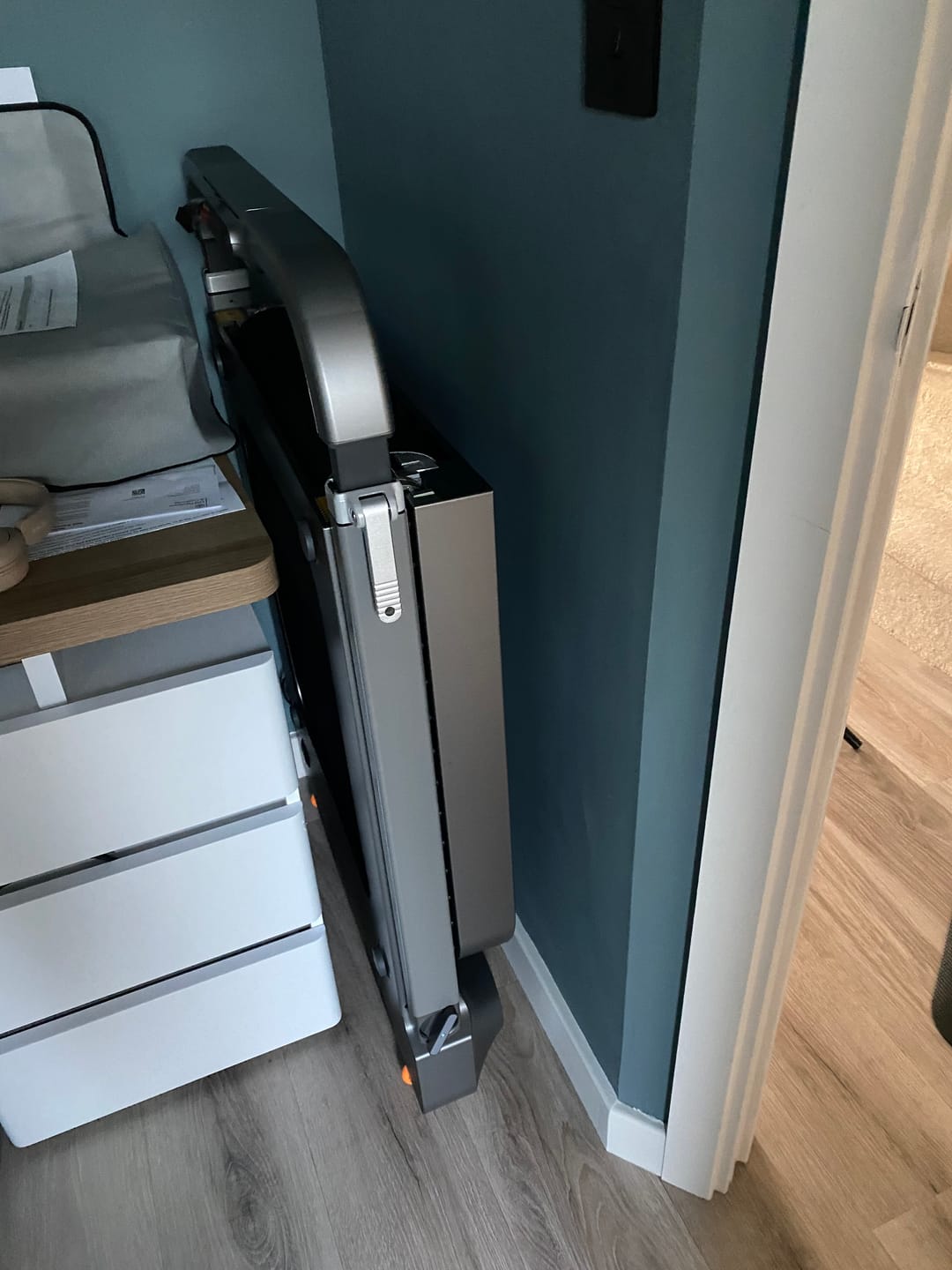

The 180-degree folding reduces the amount of space required. It can be stored in an upright position. No installation required
-

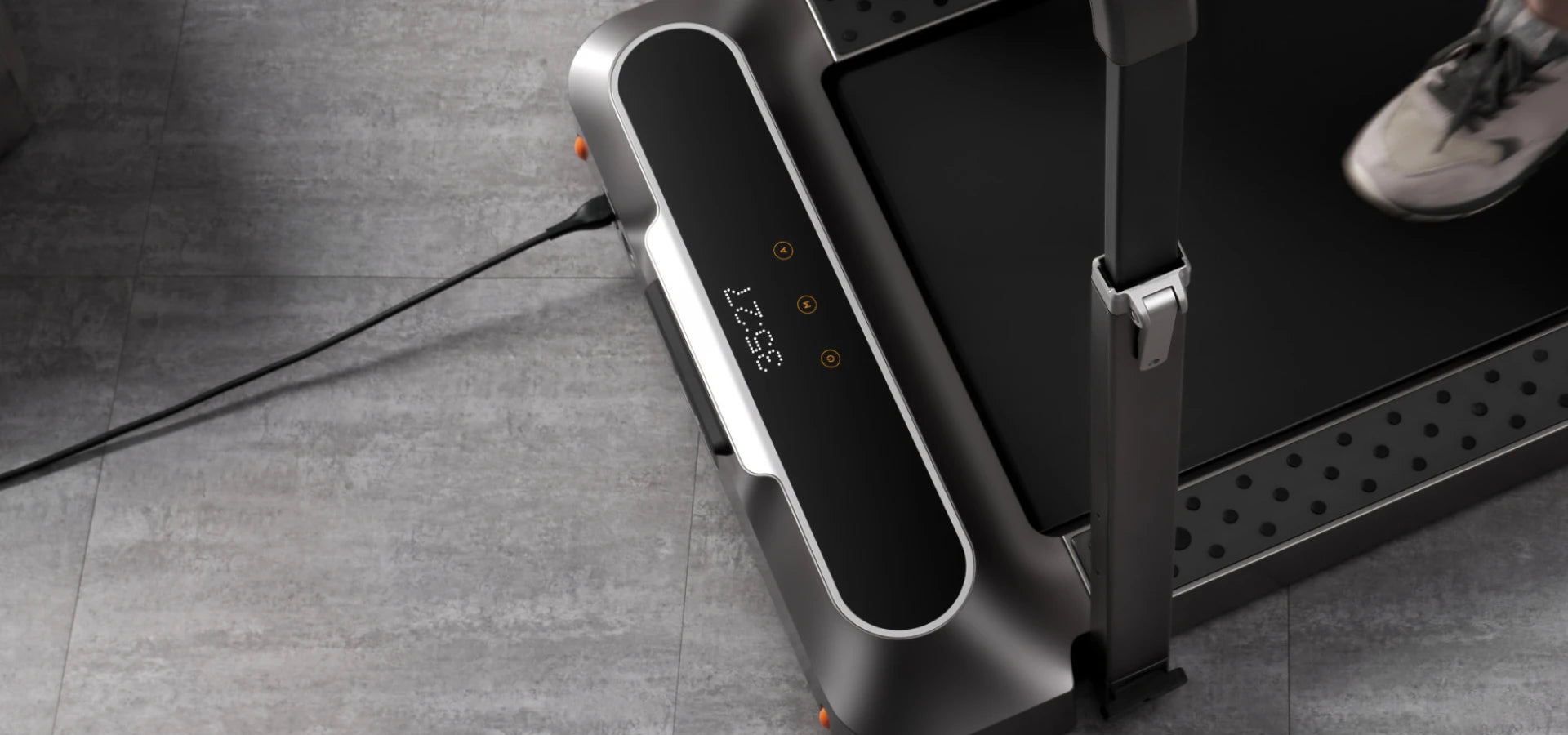

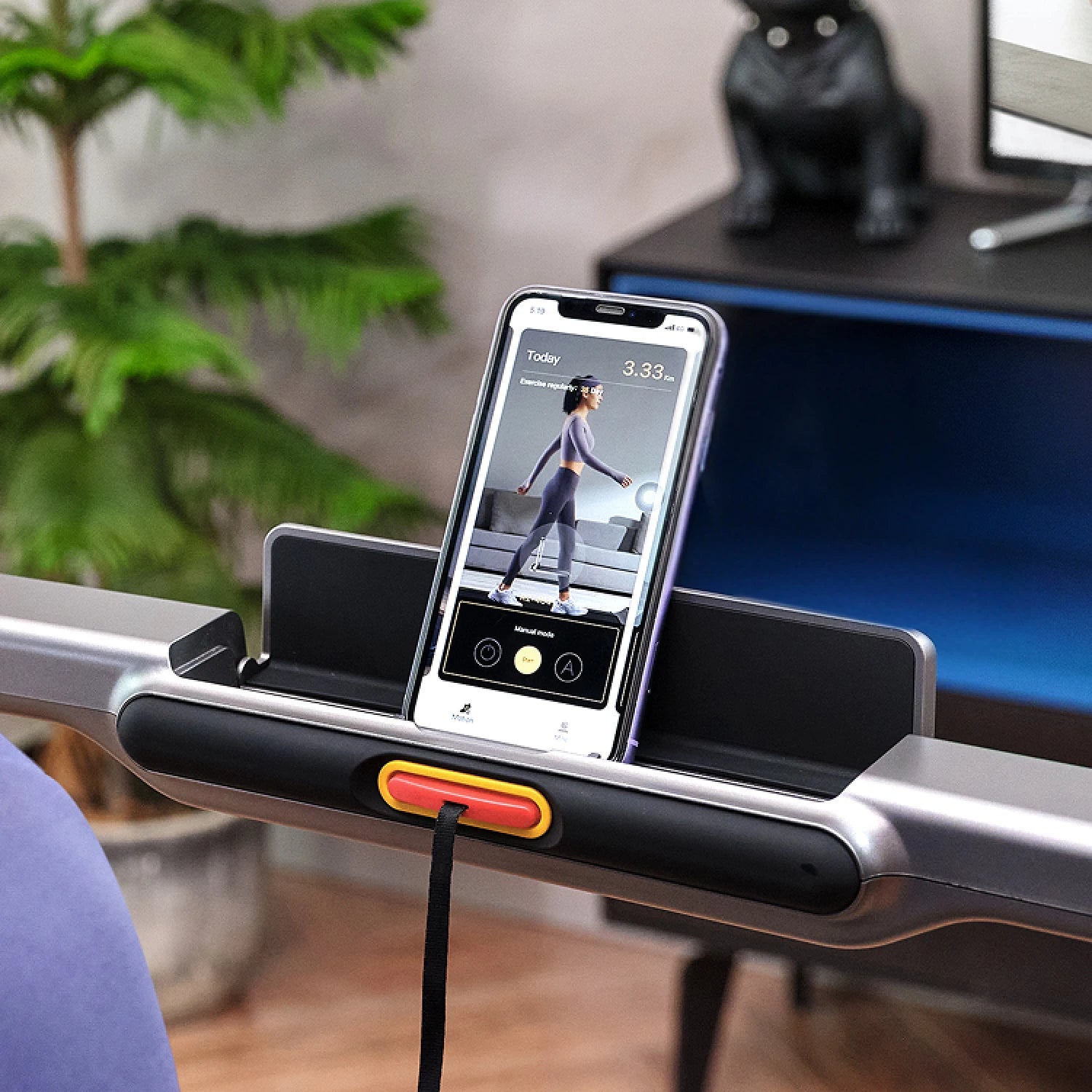

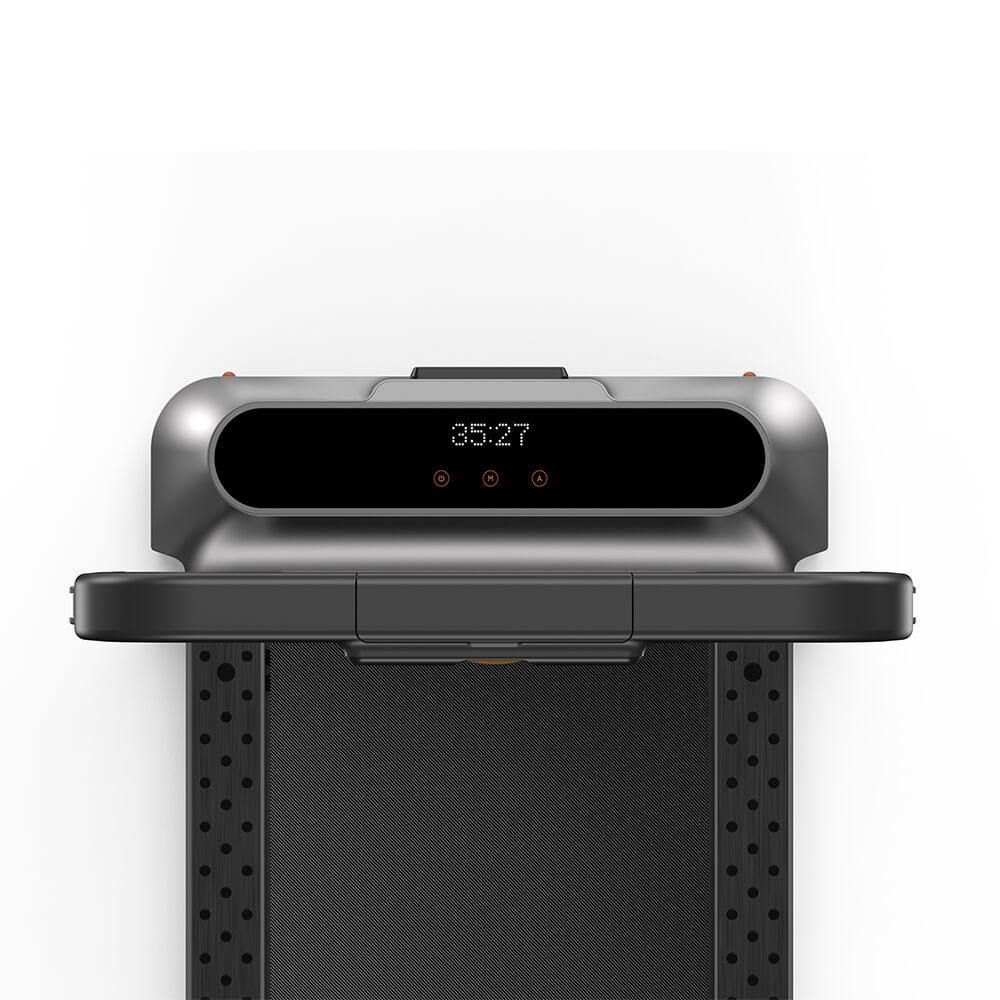

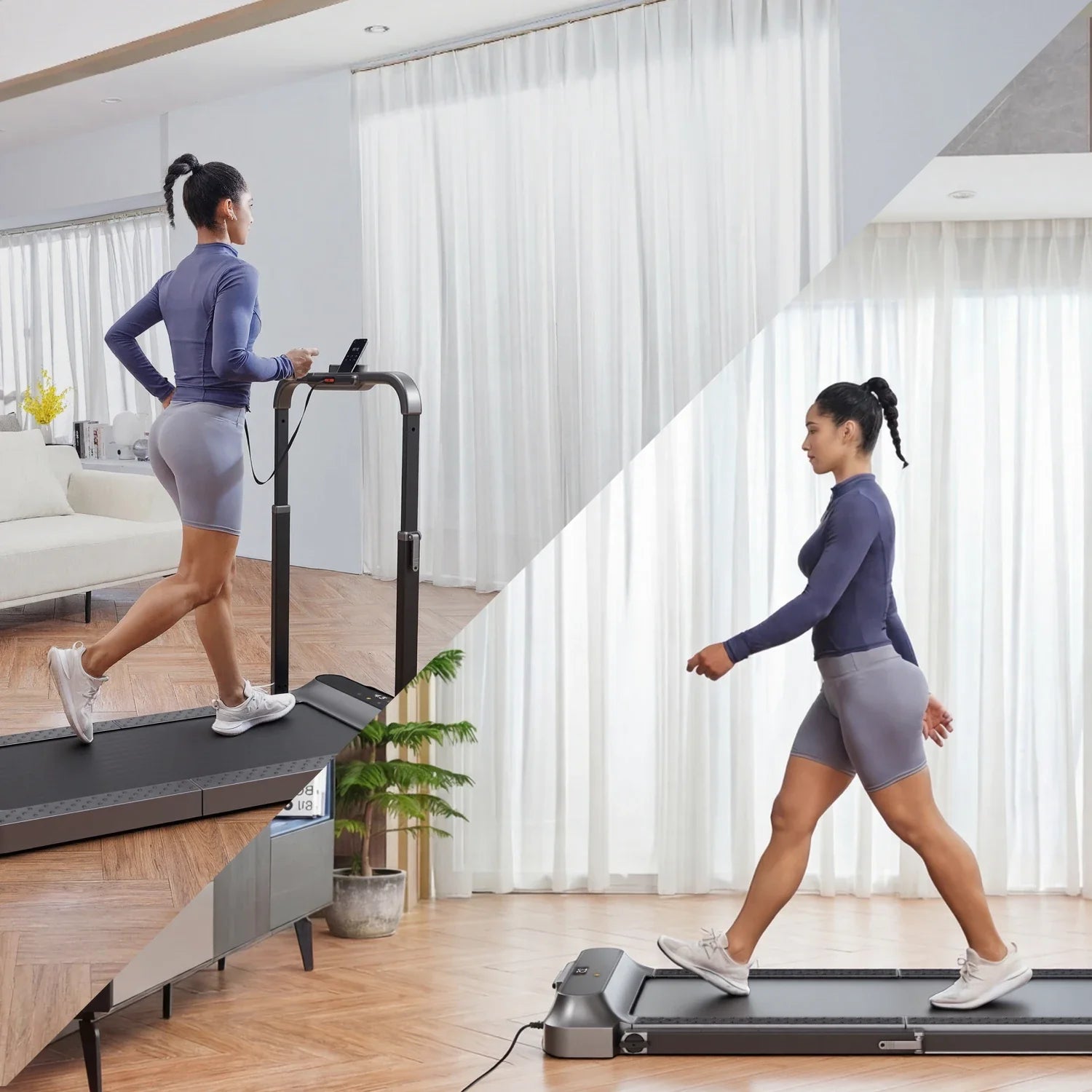

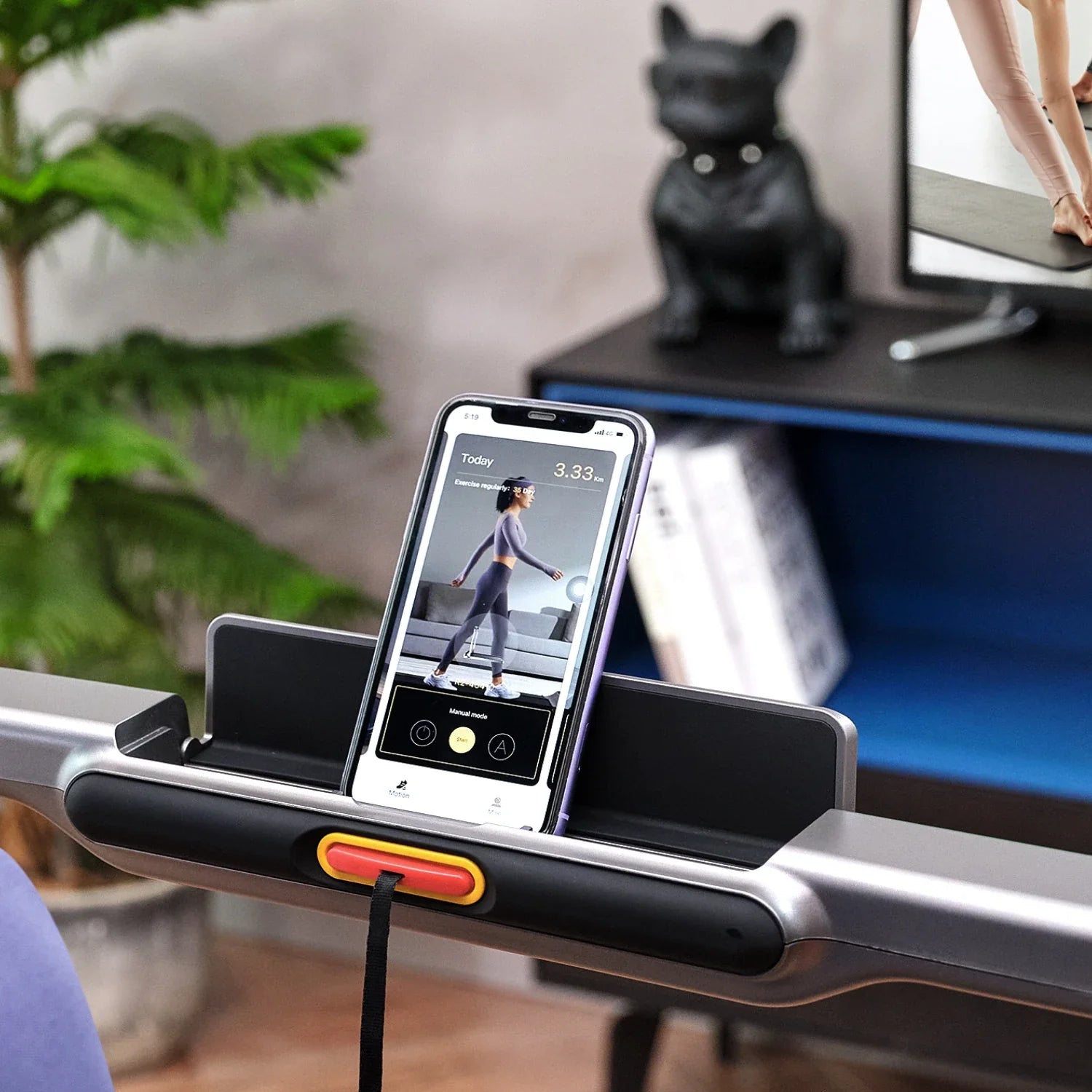

DIGITAL MONITOR & PHONE HOLDER
The KS Fit app simultaneously displays your time, speed, steps, and calories burned. Use the holder to hold your tablet or phone.
-

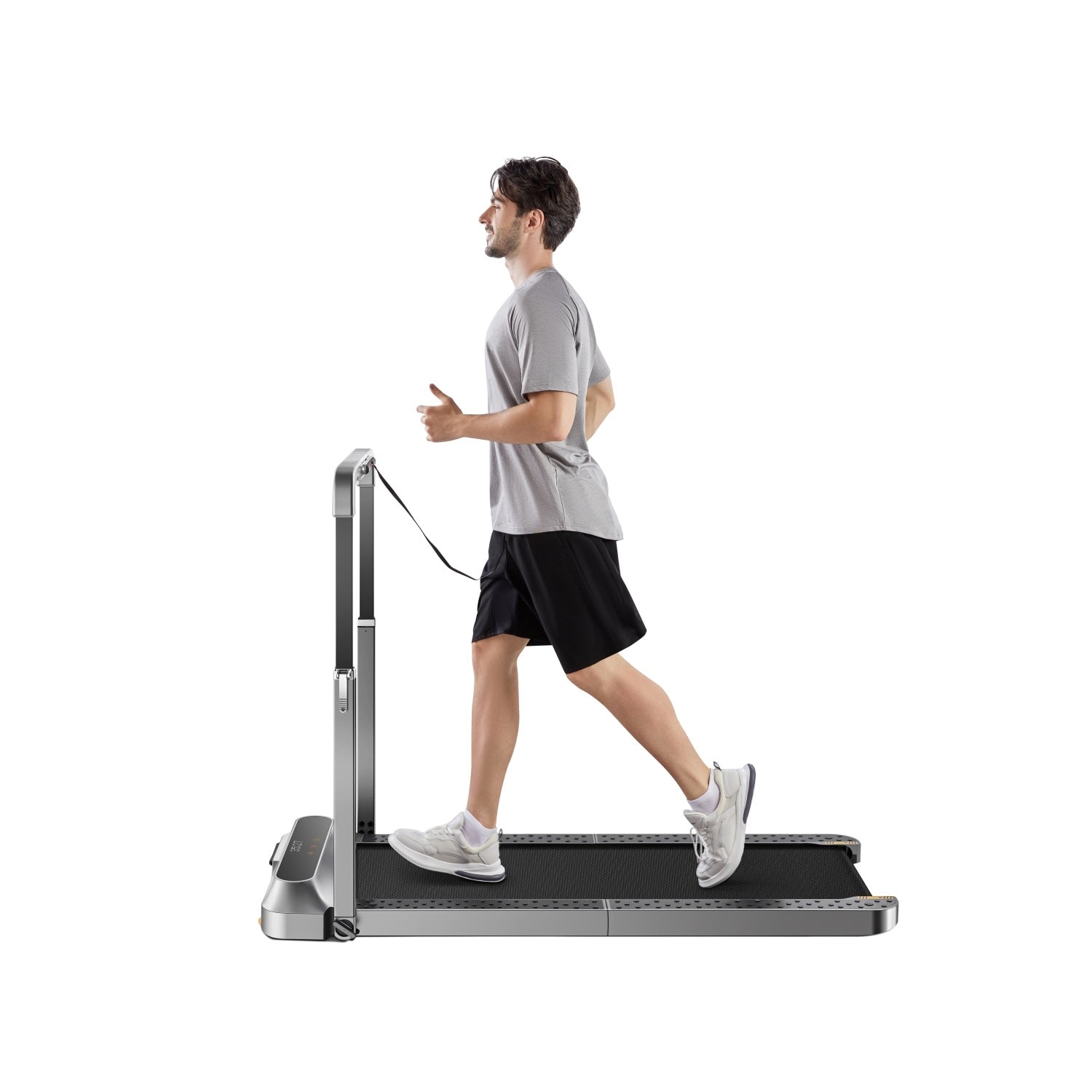

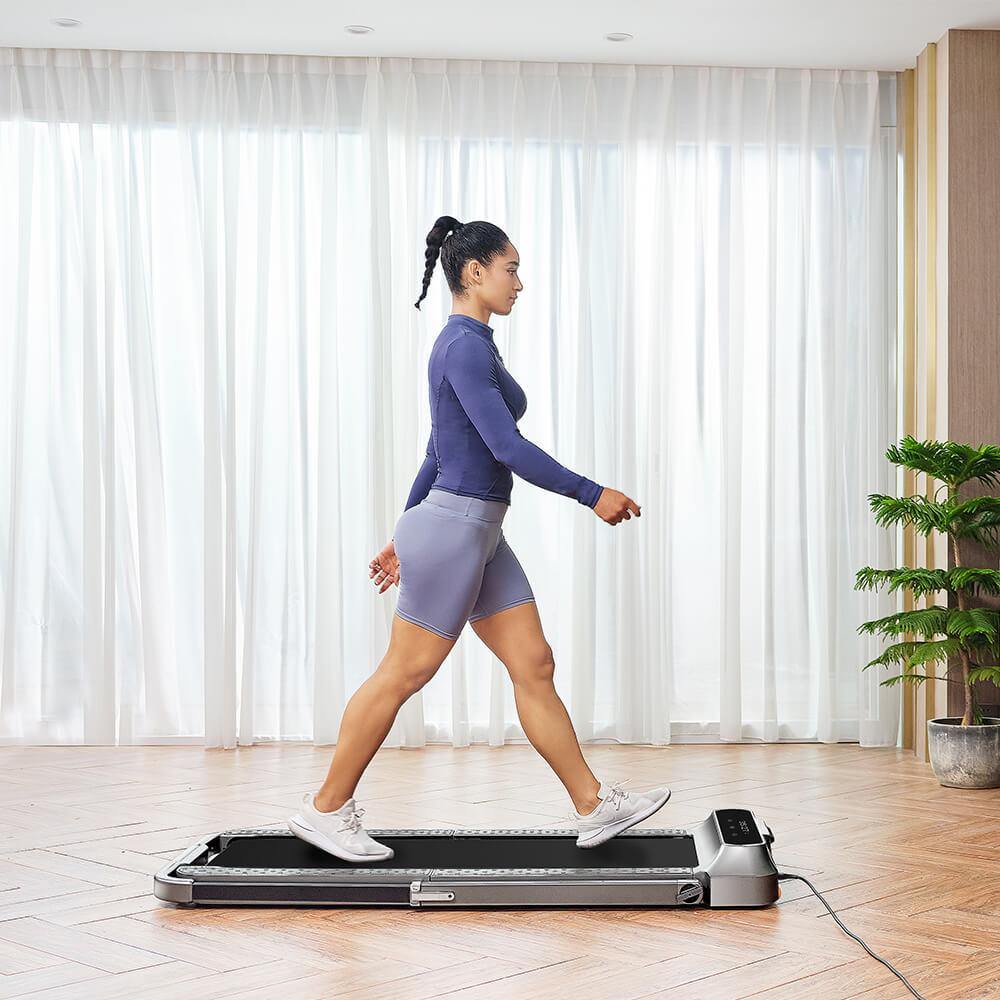

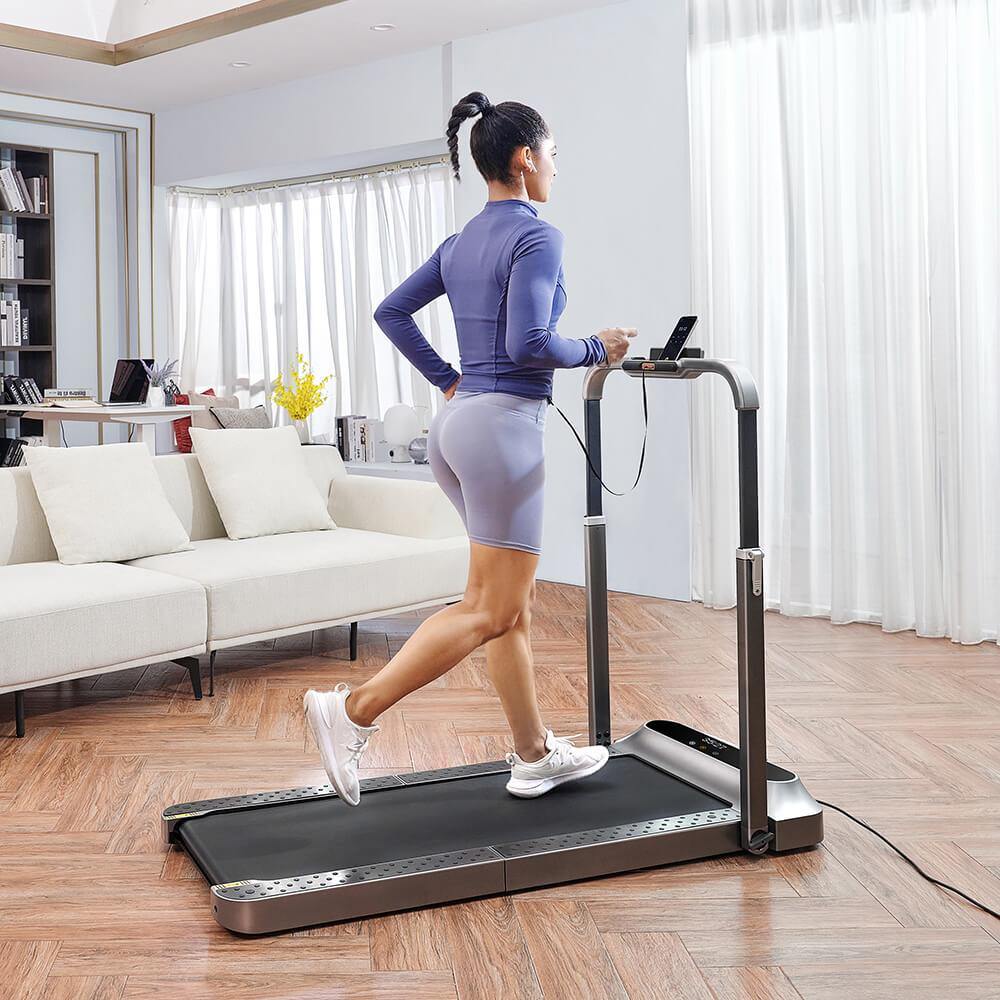

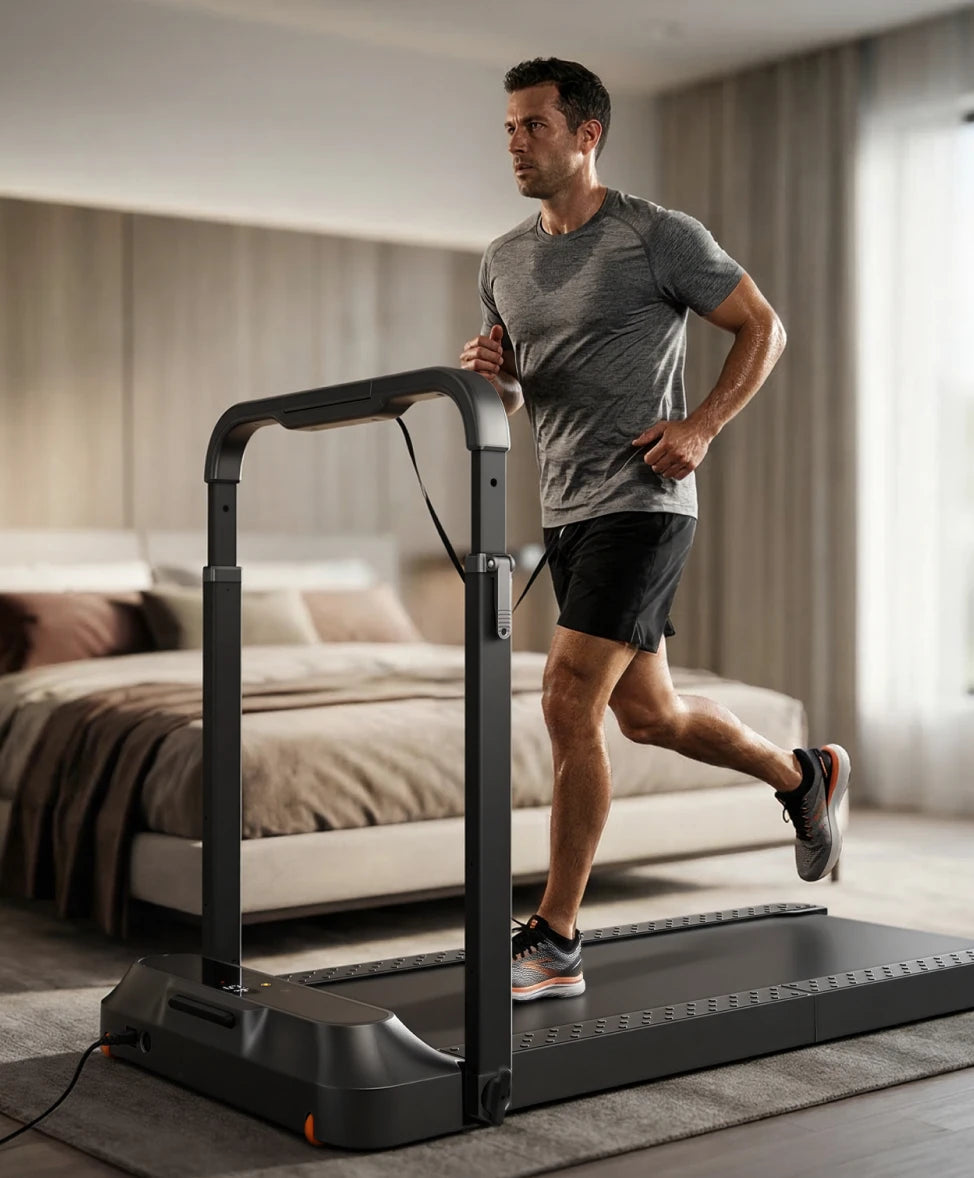

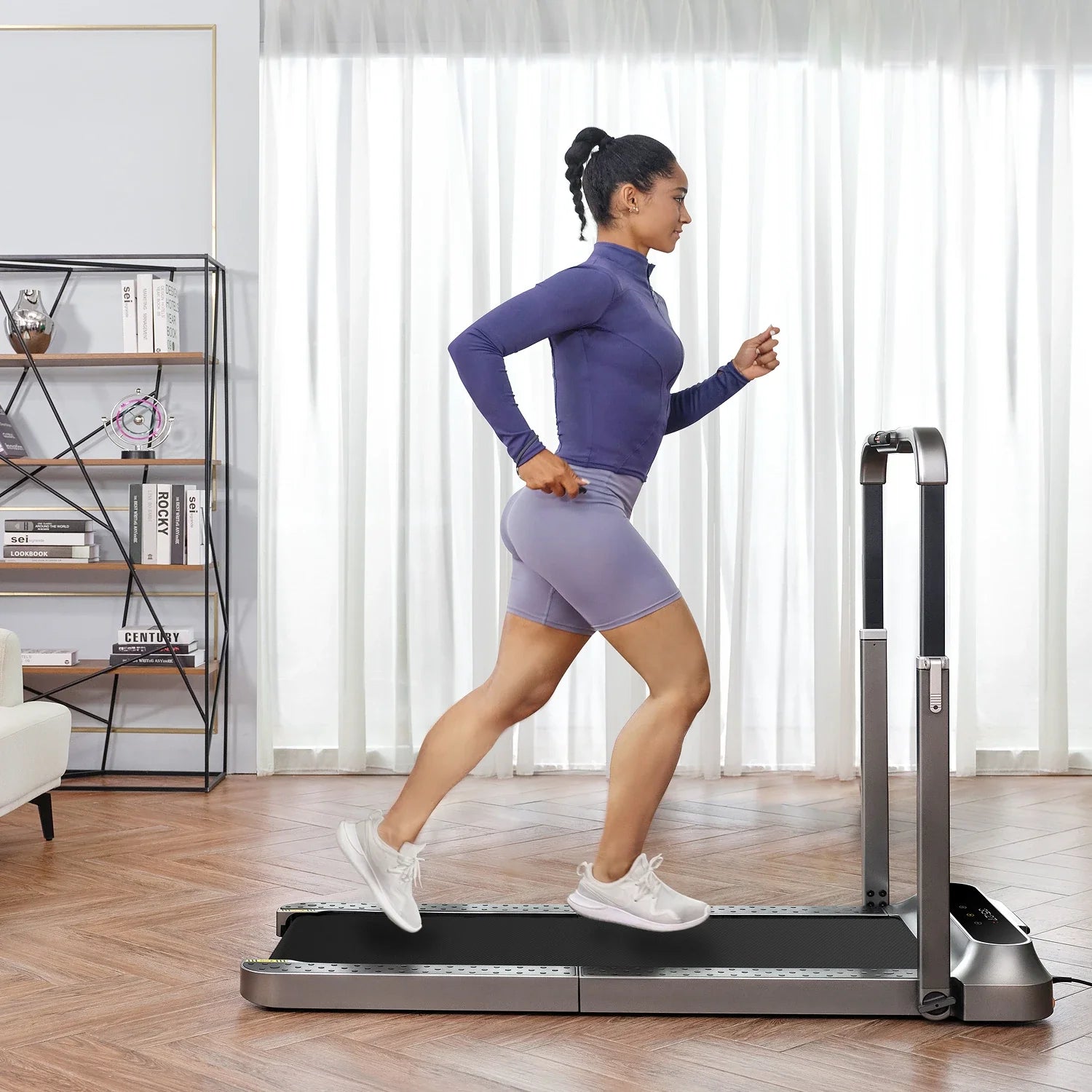

2 IN 1 FOLDABLE TREADMILL
For Walking Or Running, two modes to meet your different needs. You can run up to 7.5 mph on the frame and walk up to 3.7 mph under your desk.
-

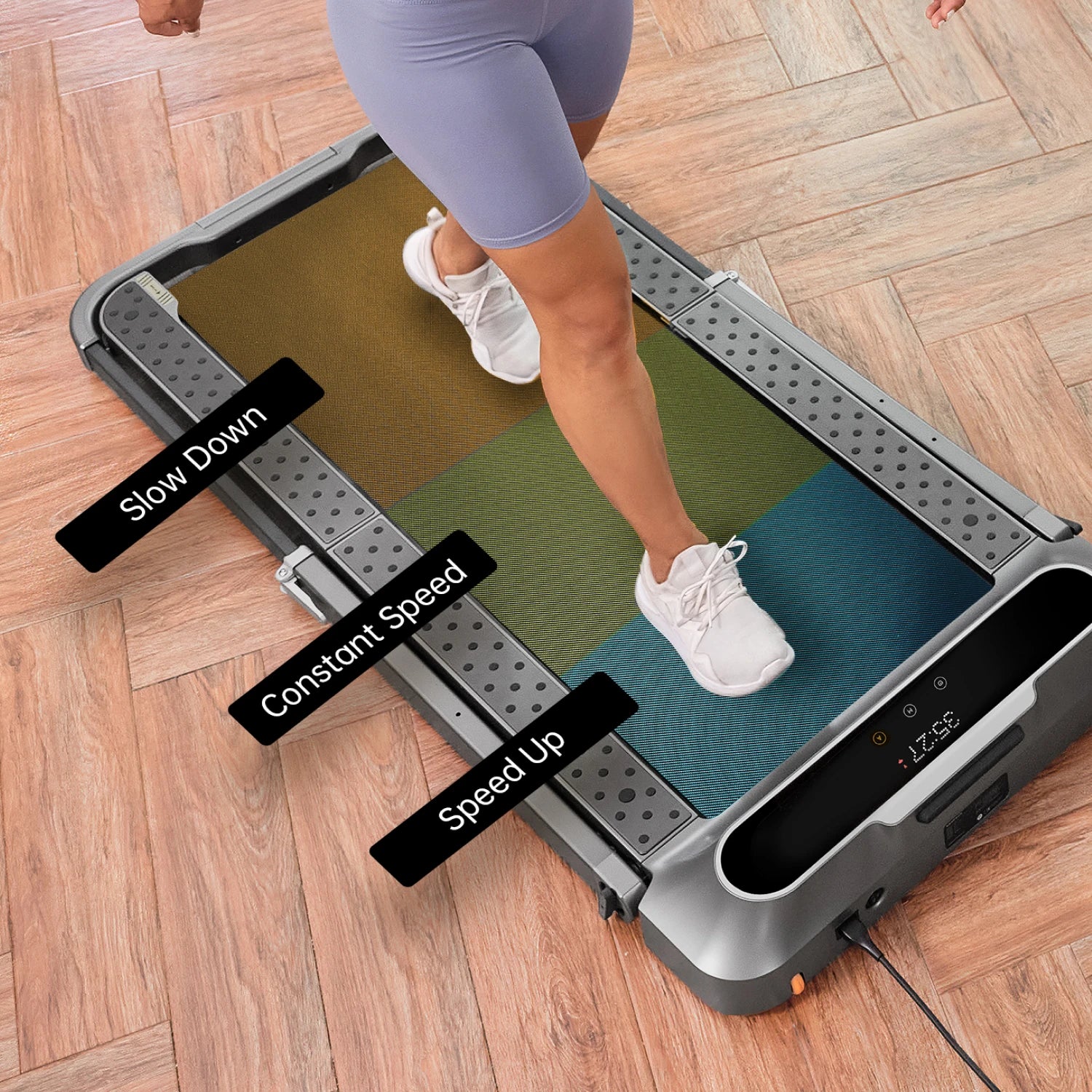

SPEED CONTROL BY FEET
Intelligent speed control by sensing the steps (only in Walking form) ("A" Mode)

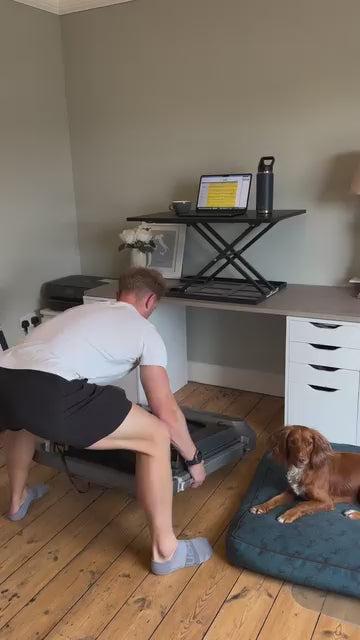

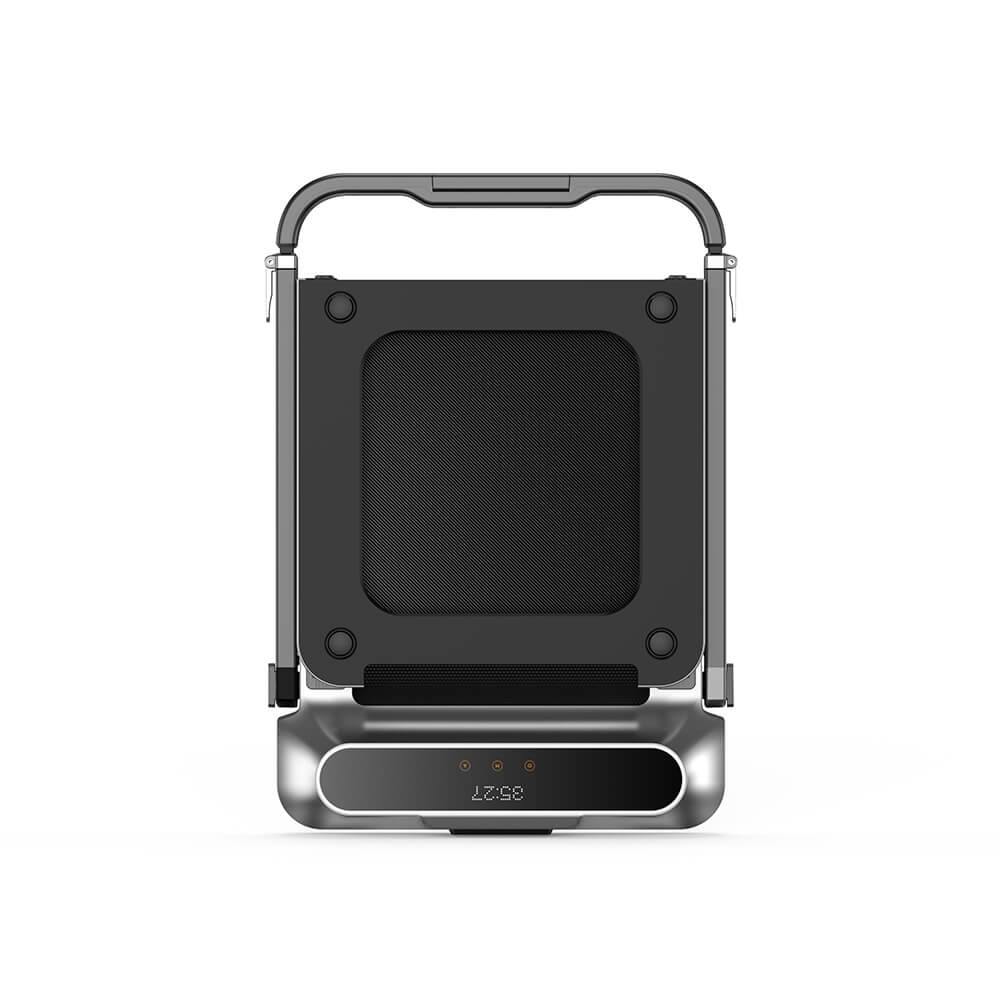

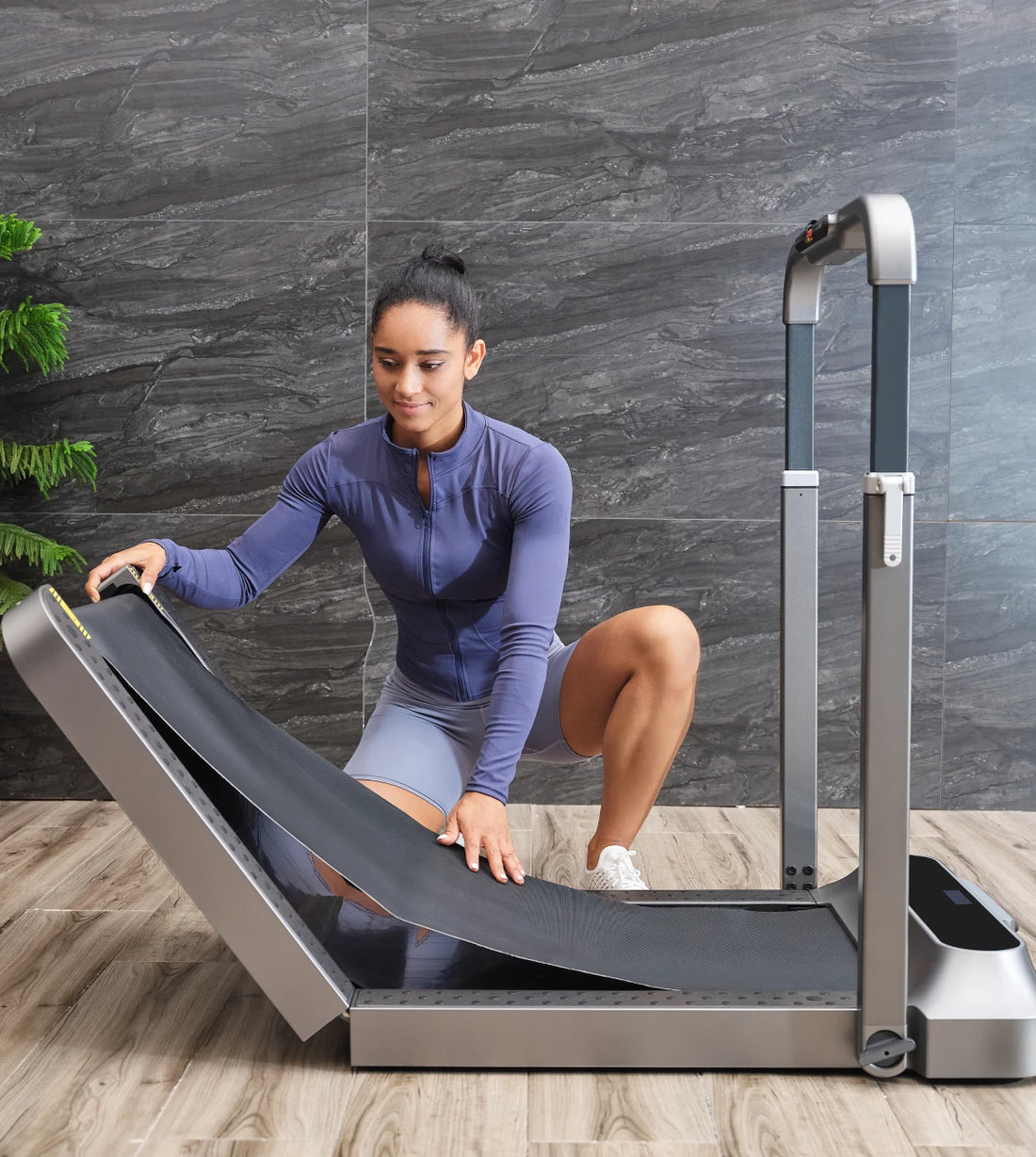

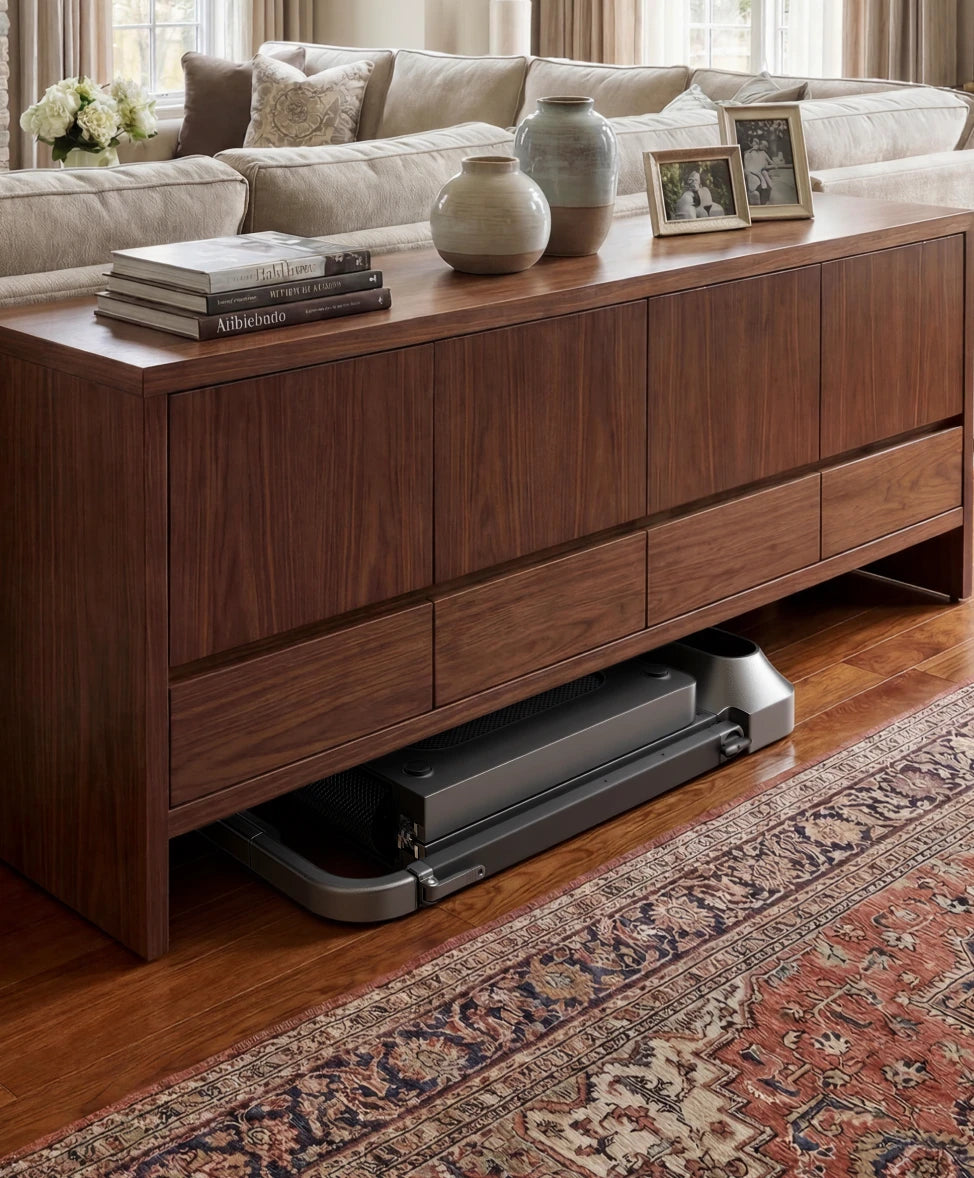

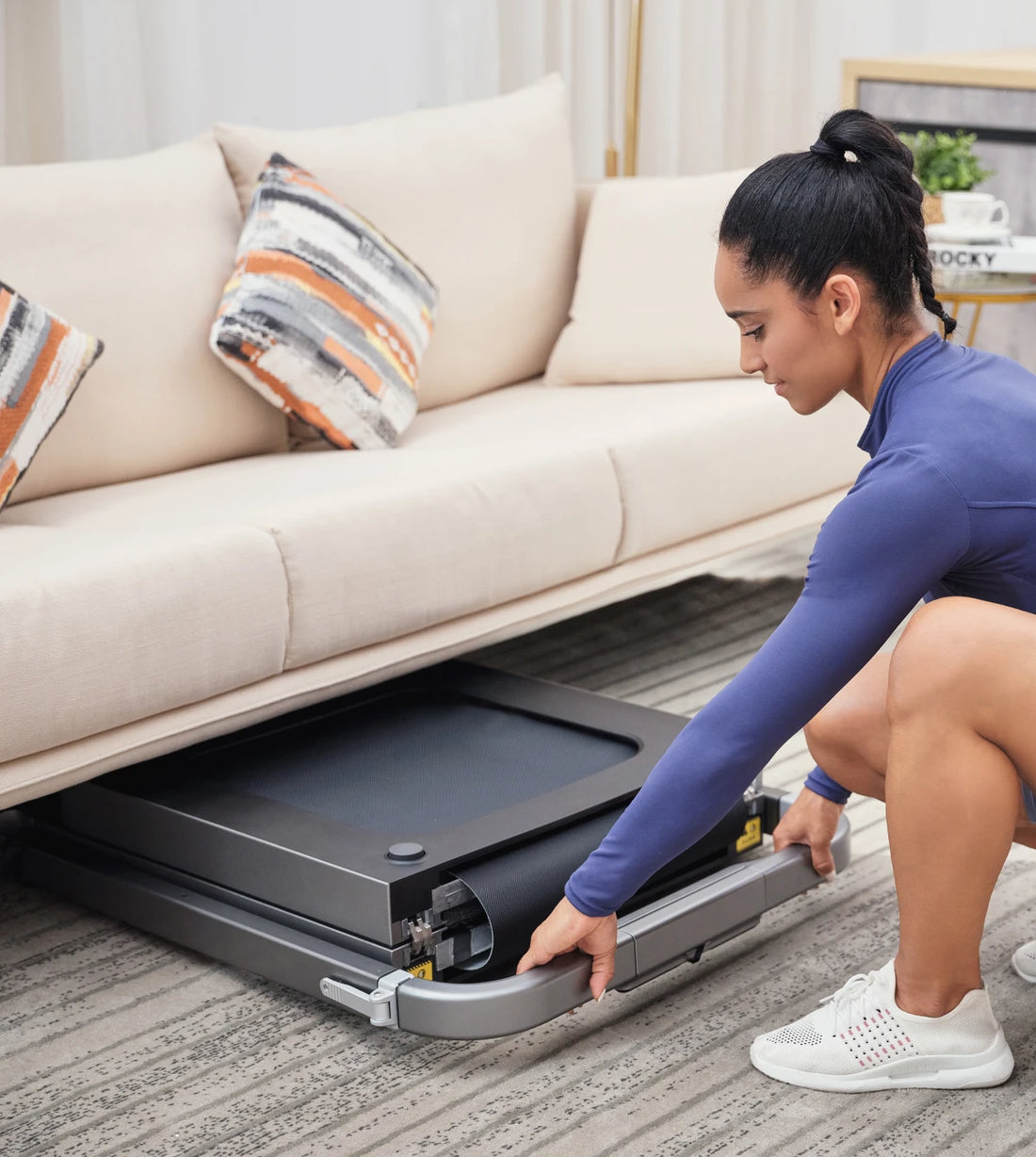

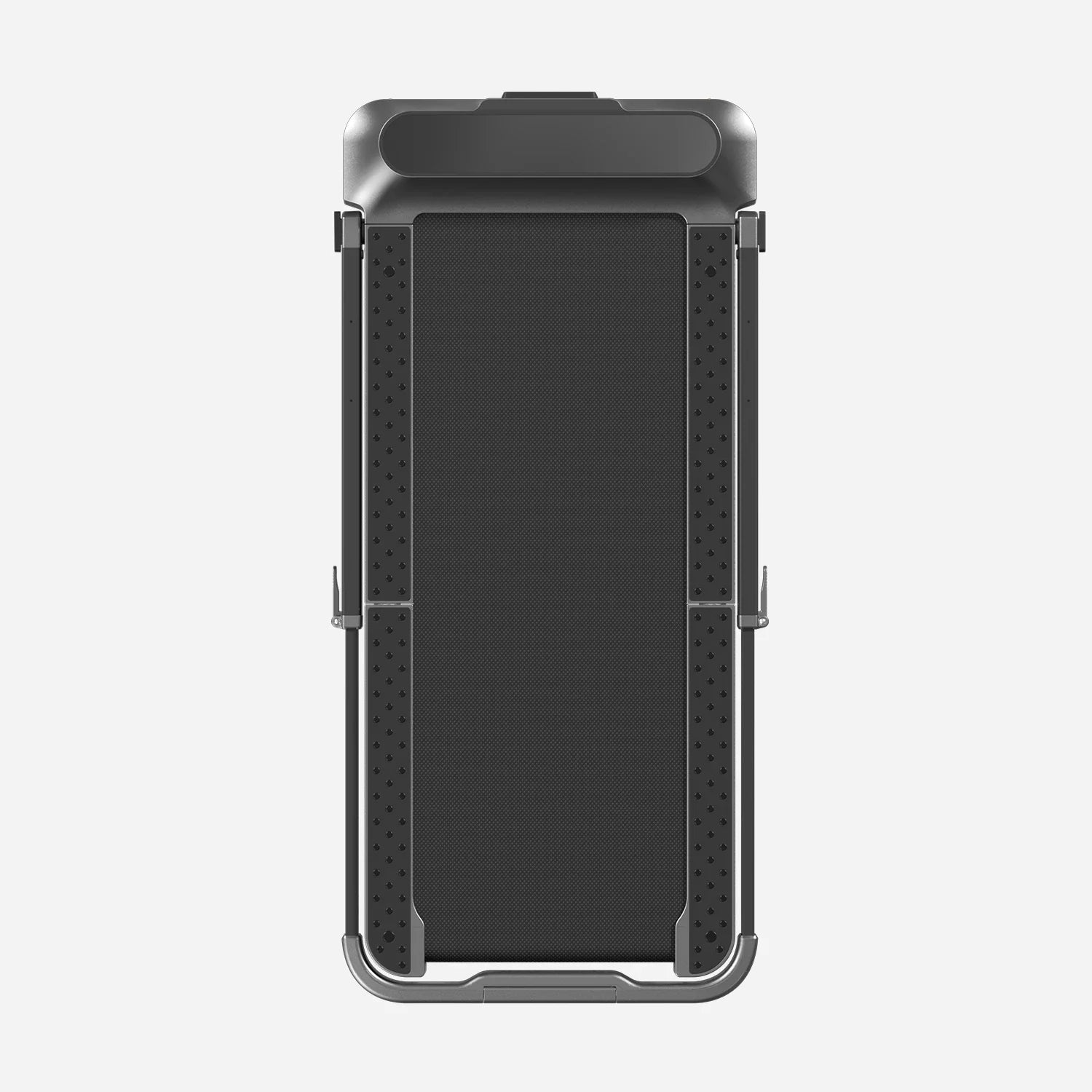

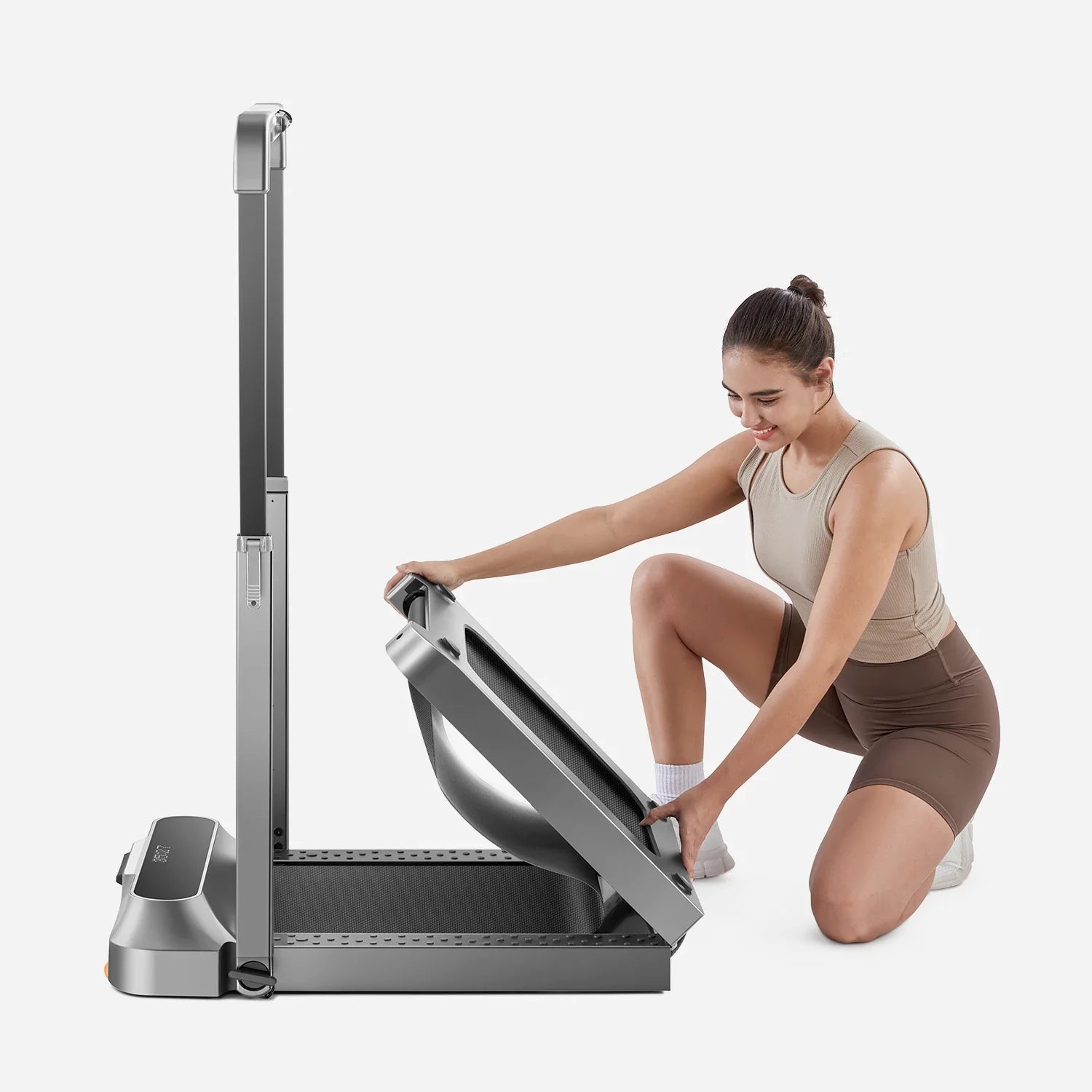

No Assembly & Space Saving Design

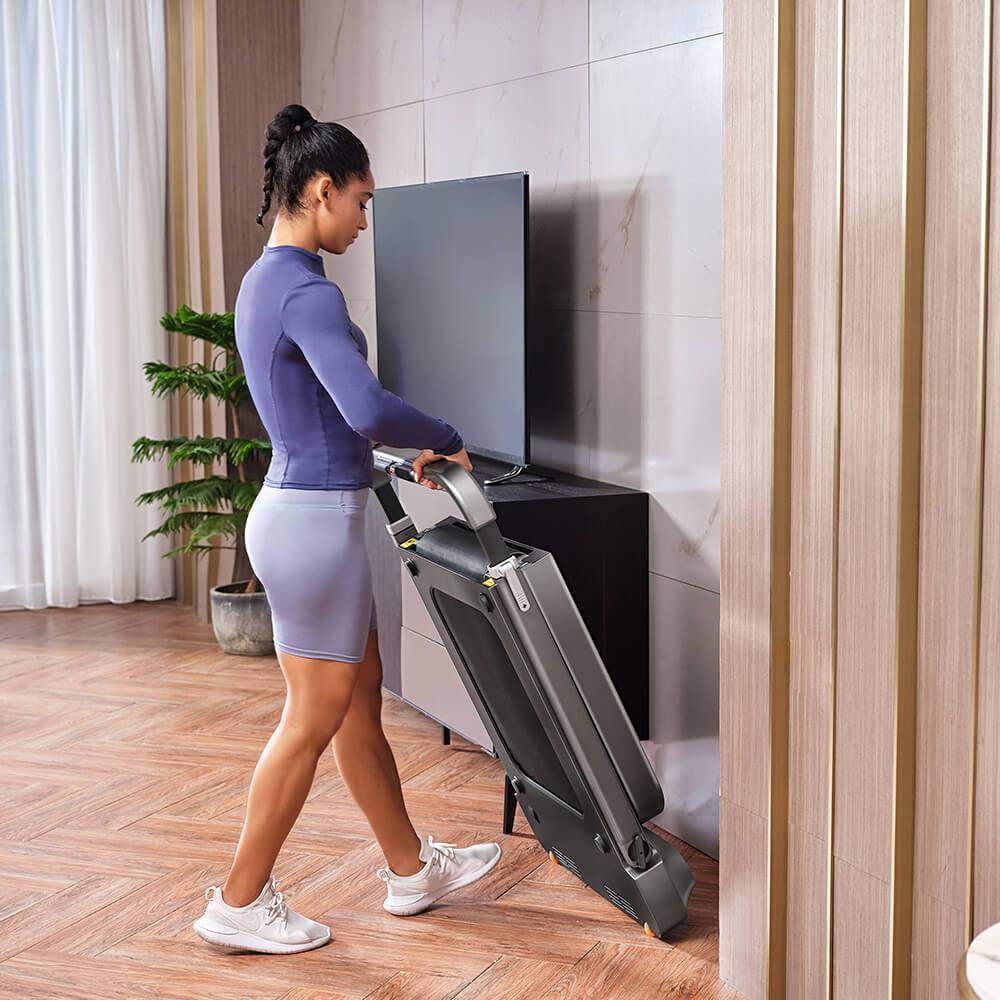

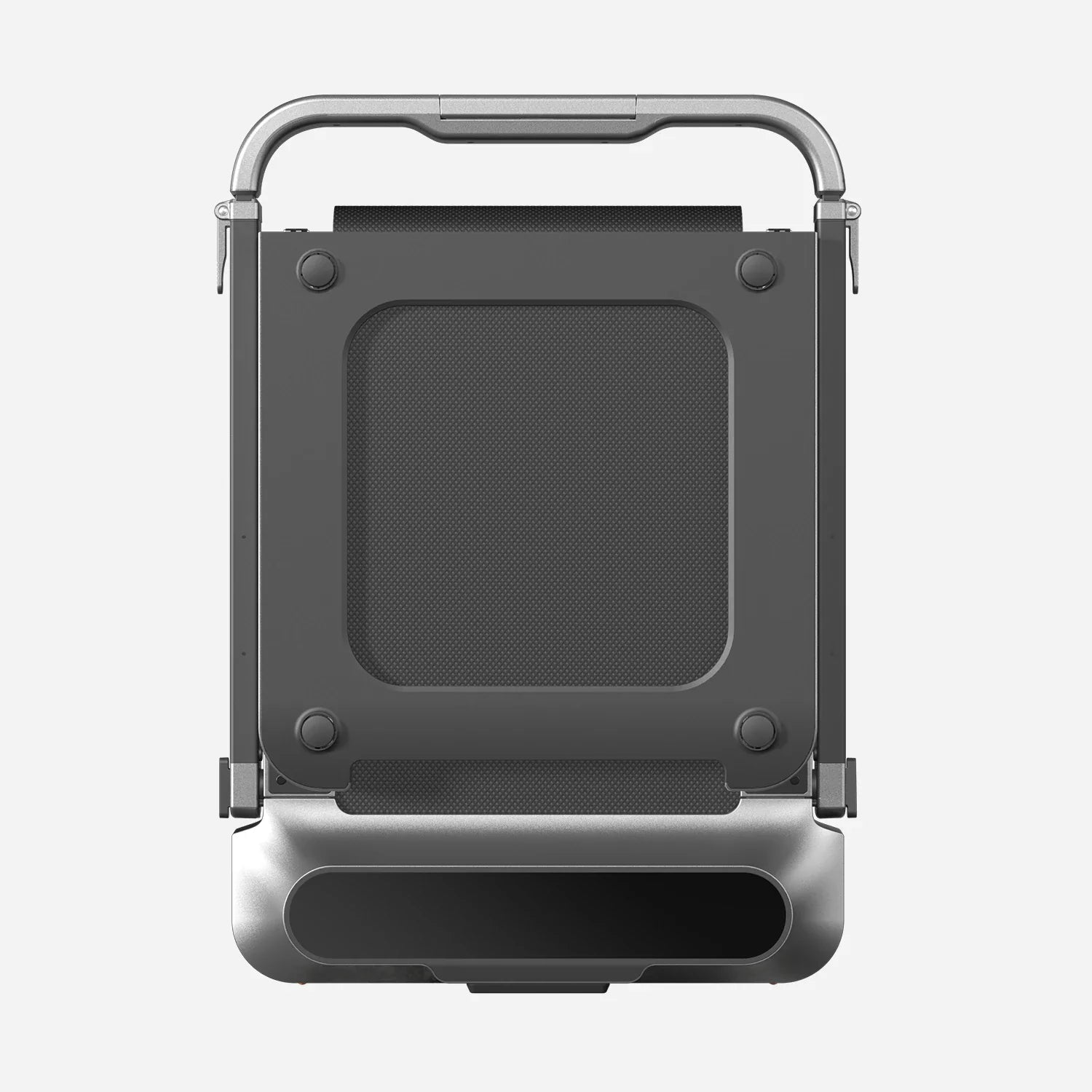

The WalkingPad treadmill's innovative hinge design enables it to be folded in under three seconds. With a floor area of 0.11 sq.m., the vertical storage solution is easy and space-saving. It arrives fully assembled and can fold it up in one easy step.

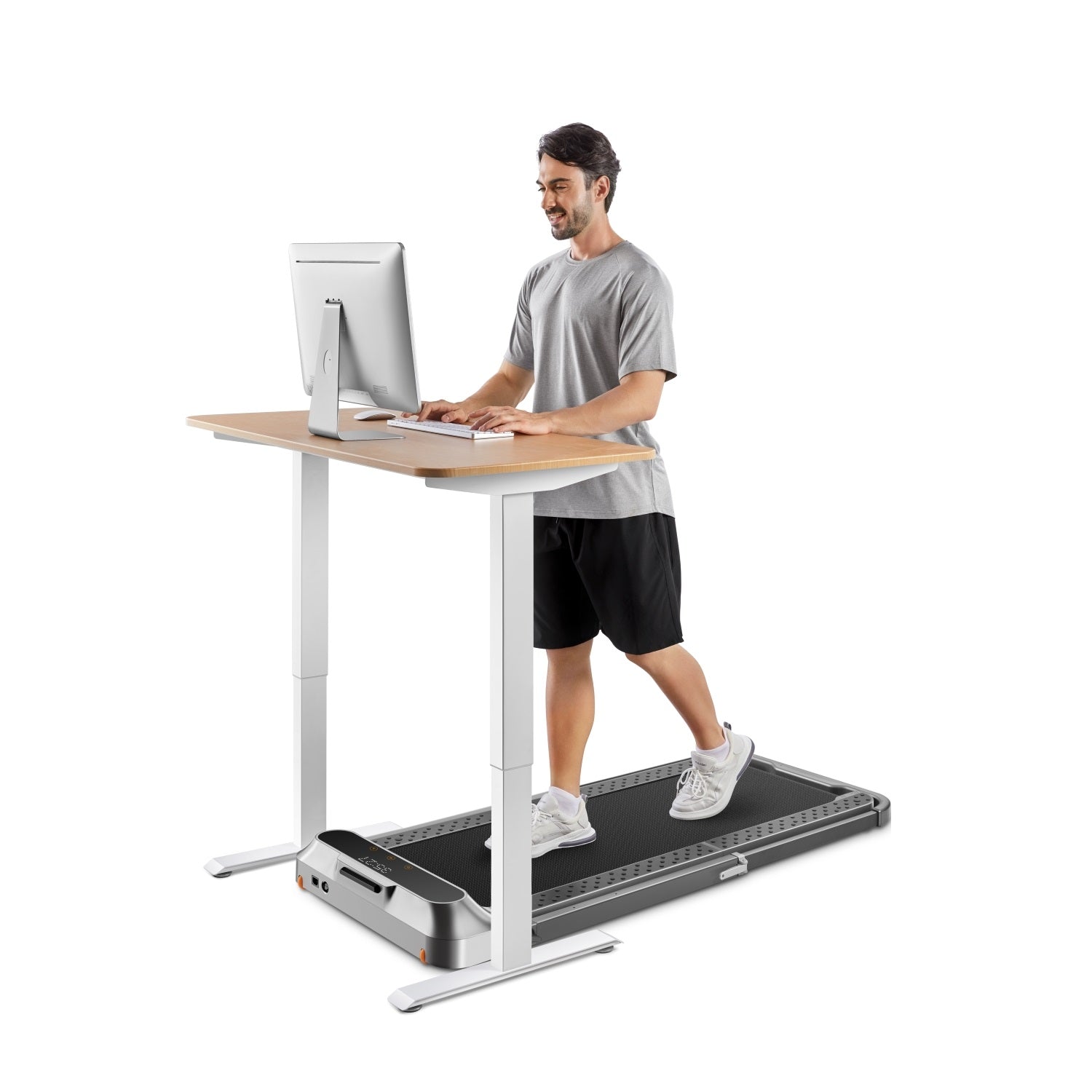

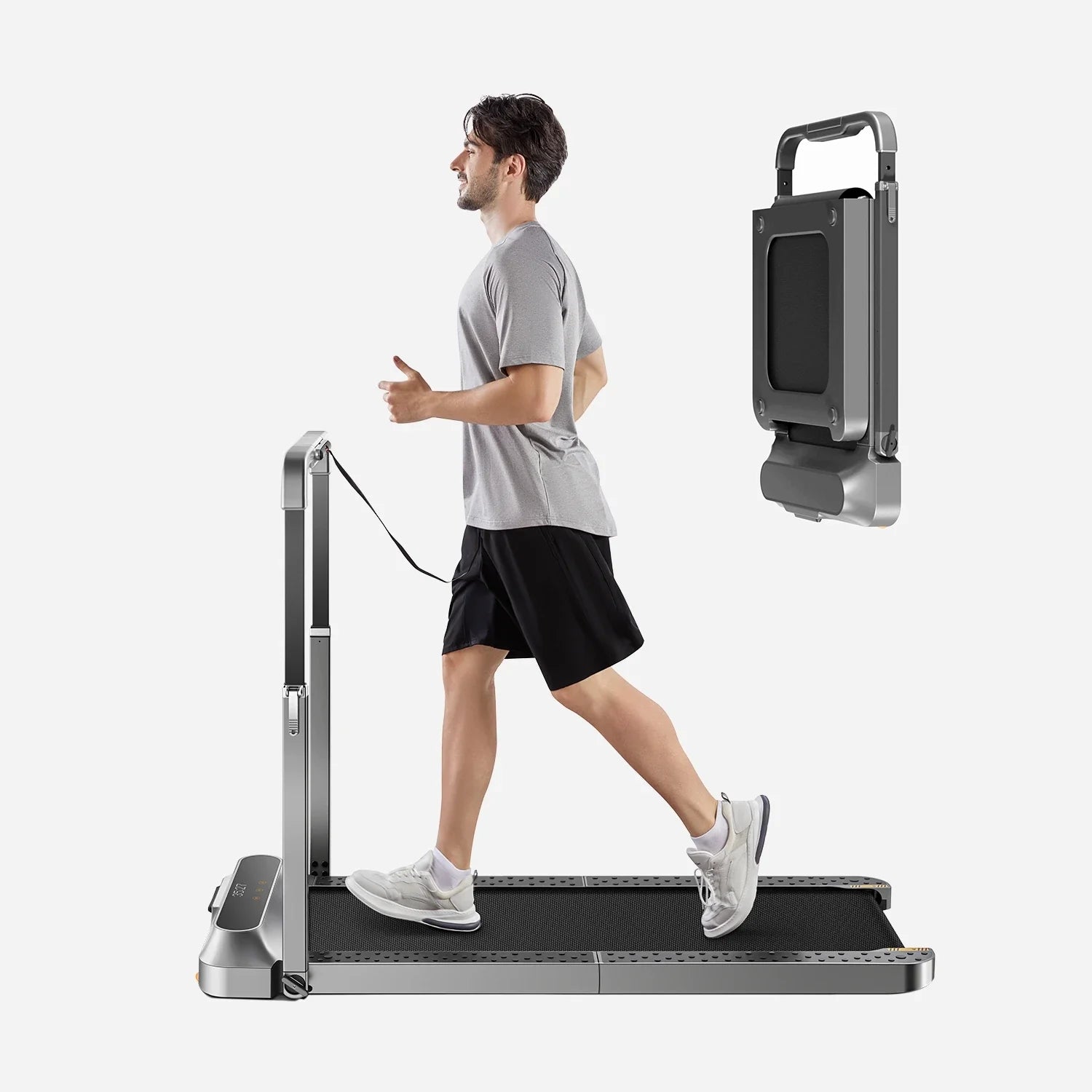

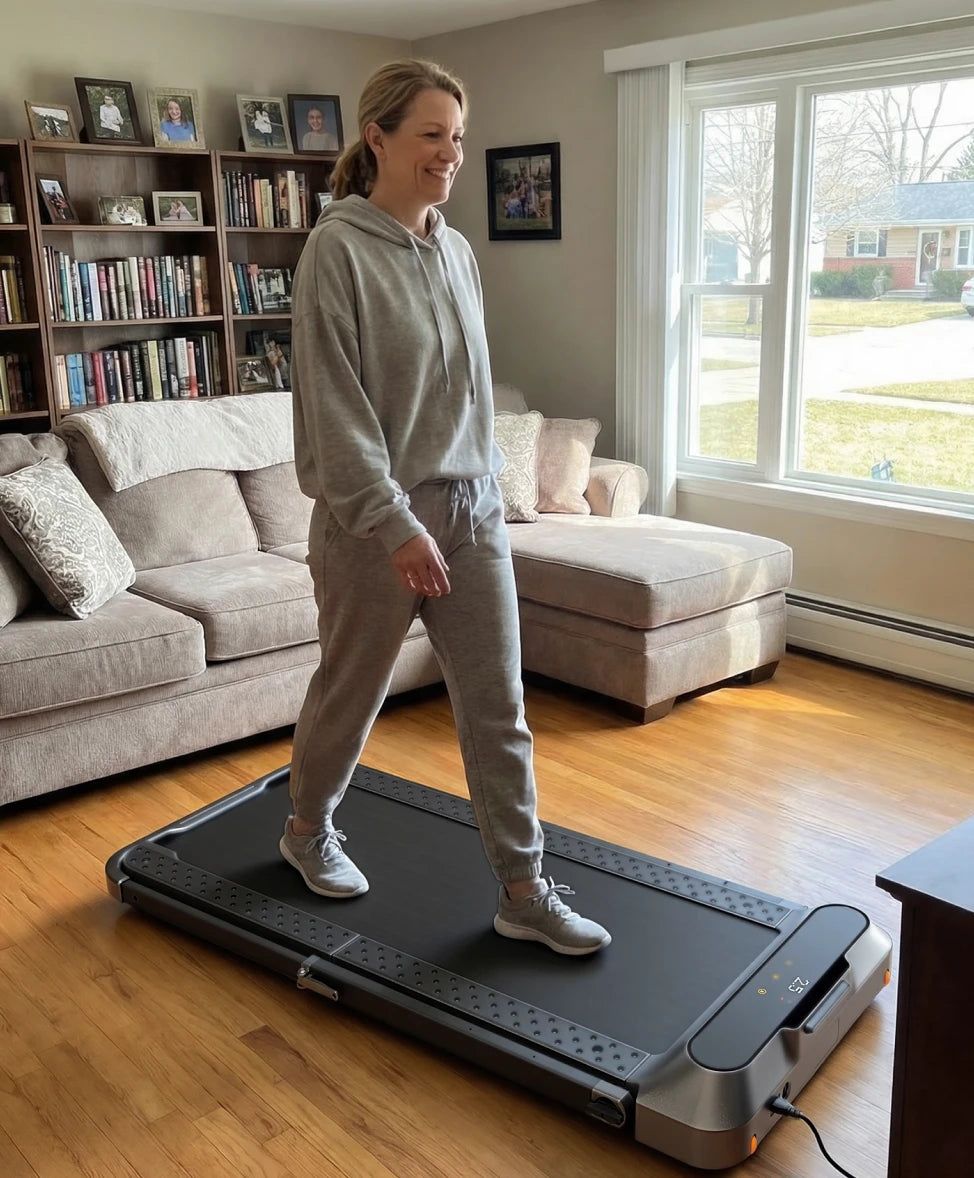

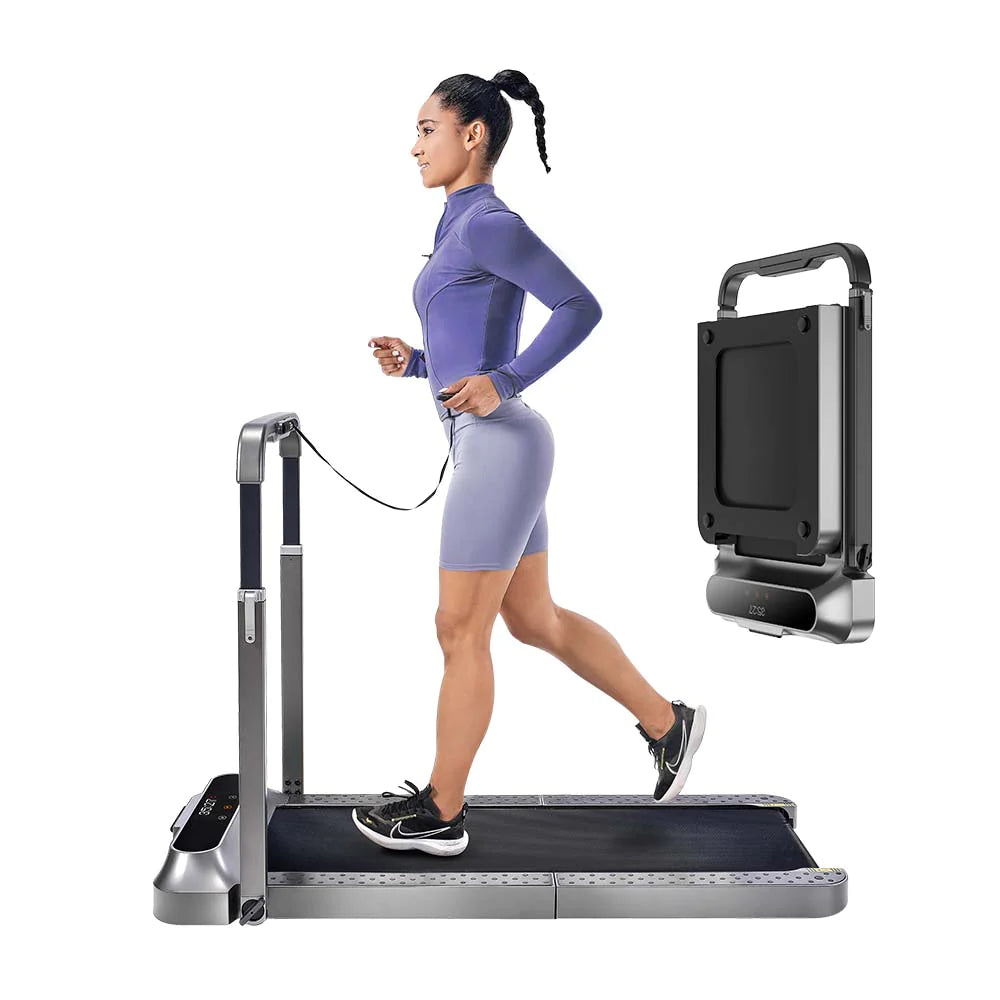

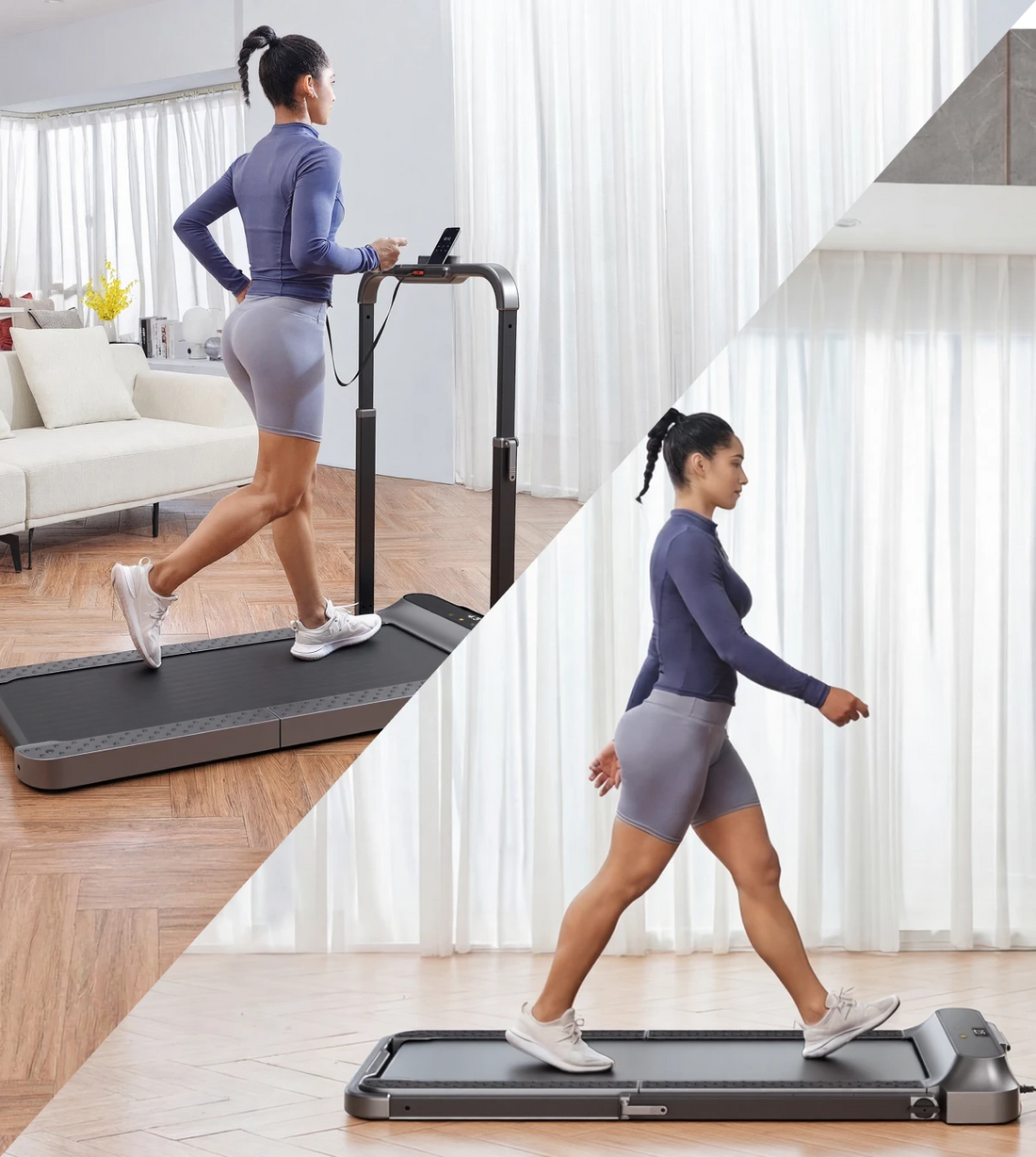

For Walking Or Running, 2 In1 Foldable Treadmill

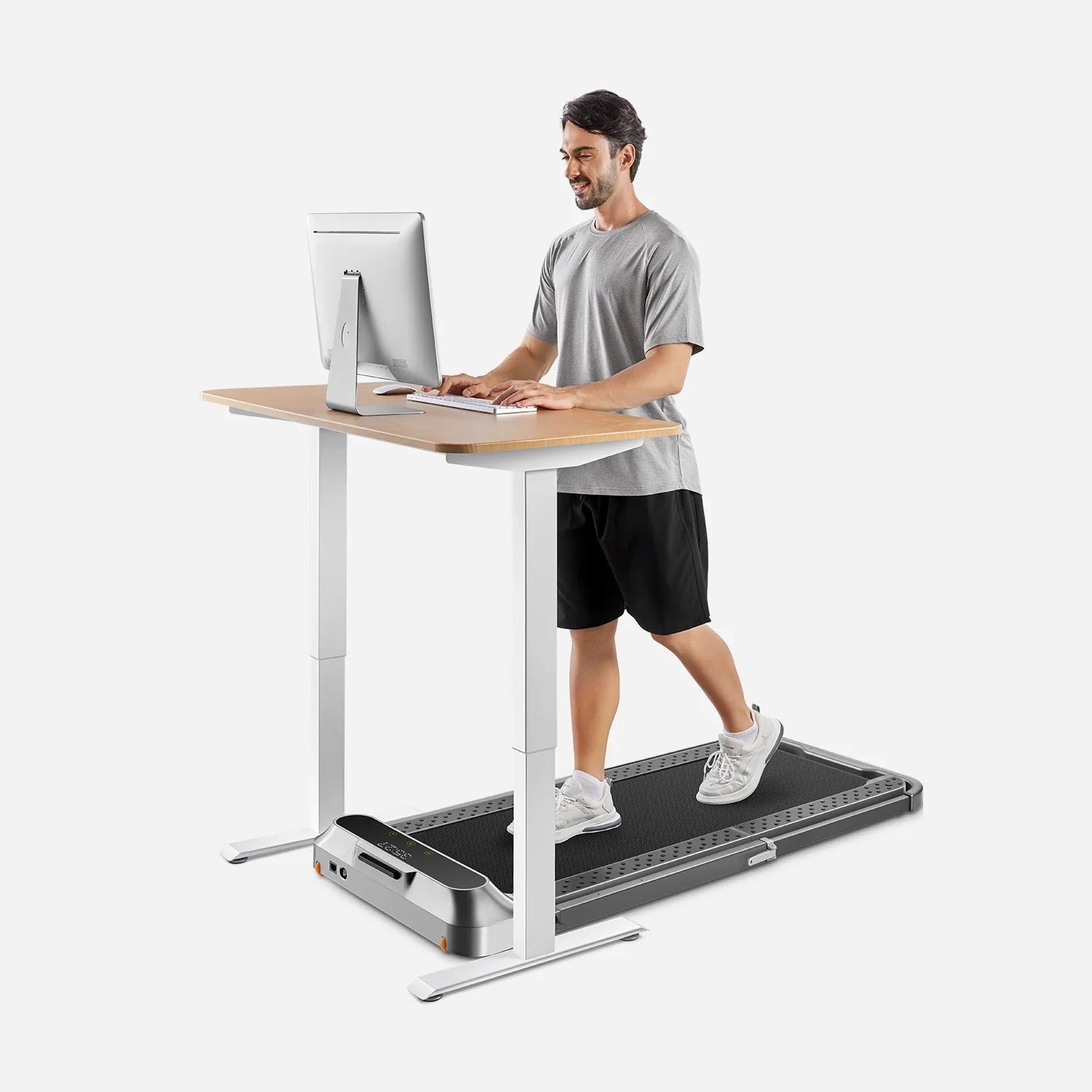

The 2-in-1 Folding treadmill is a treadmill for quick running and an under the desk walking machine for continuous exercise at work.

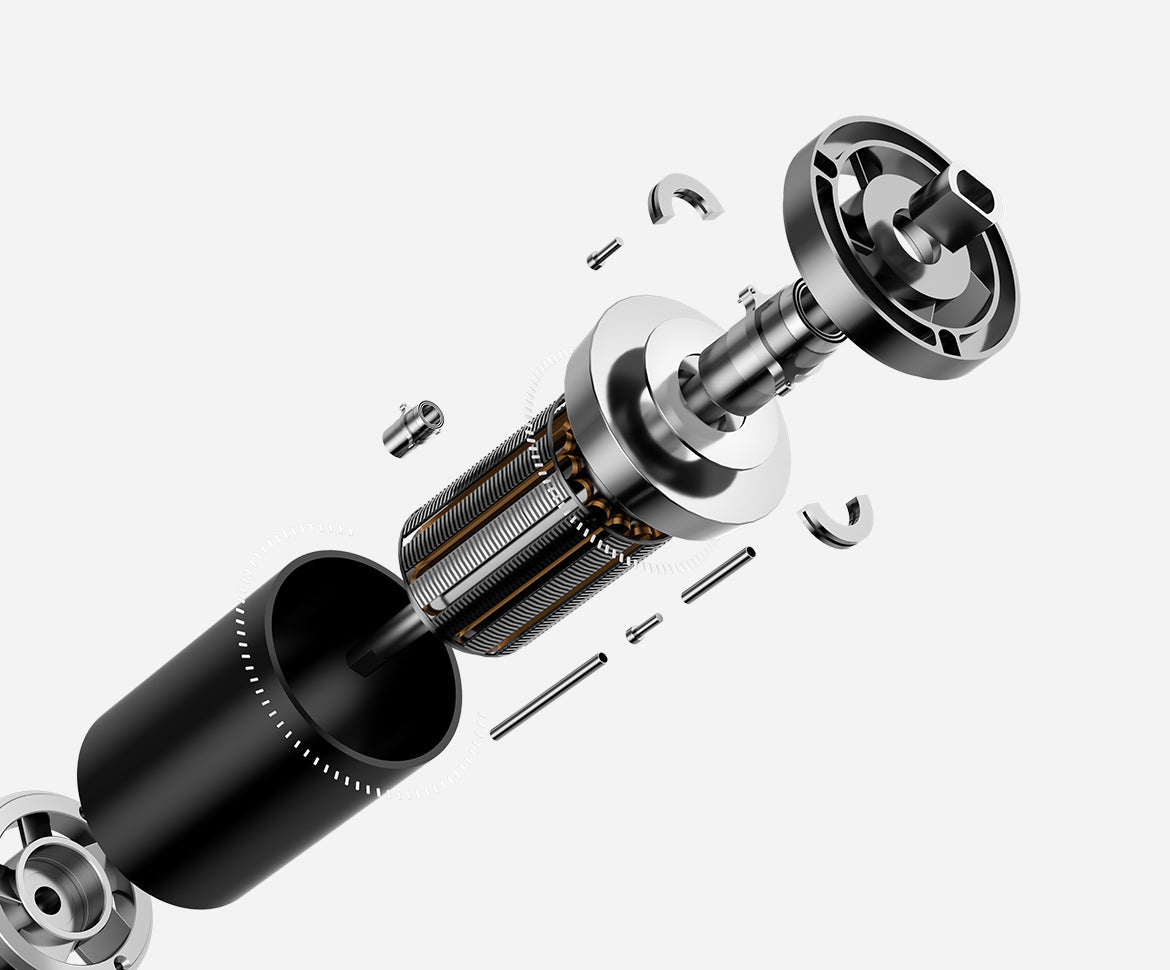

Brushless Motor, Noise Reduction
Brushless motor featuring high horsepower and lower noise, no-load and full-speed operation producing only 65dB, freeing you of any worry about being complained when exercising late at night.

Shock Absorption, Noise Reduction
The four-layer professional racetrack construction is extremely resilient, allowing for a more comfortable landing, and each step is light and labor-saving.
Intelligent Design

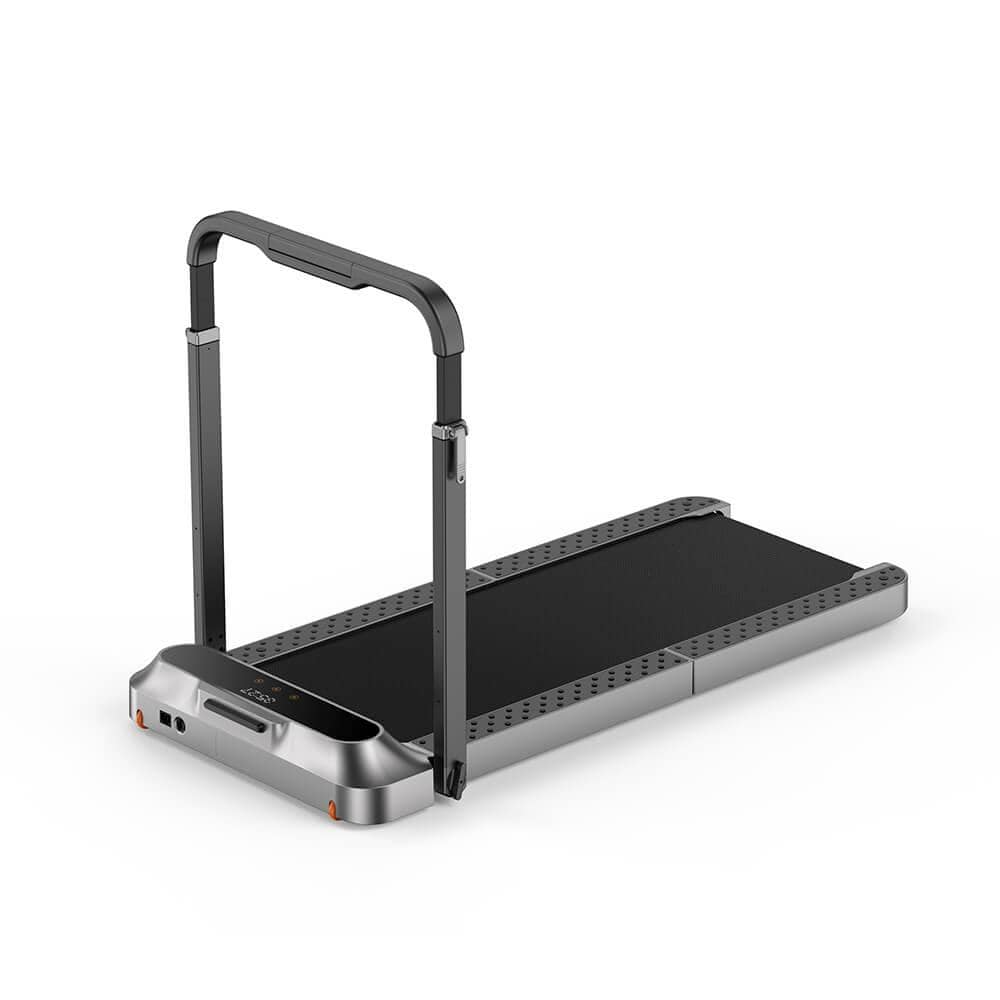

Technical Parameters | |
Product Name : | WalkingPad R2 Treadmill |
Motor : | Brushless motor |
Panel Craftsmanship : | Metallic spray paint |
Rated Power : | 918W |
Display Feedback : | Time, Speed, Distance, Calories, Steps |
Speed Range : | Walking Mode: 0.5 - 3.7 MPH/6KPH Running Mode: 0.5 - 7.45 MPH/12KPH(New Version) |

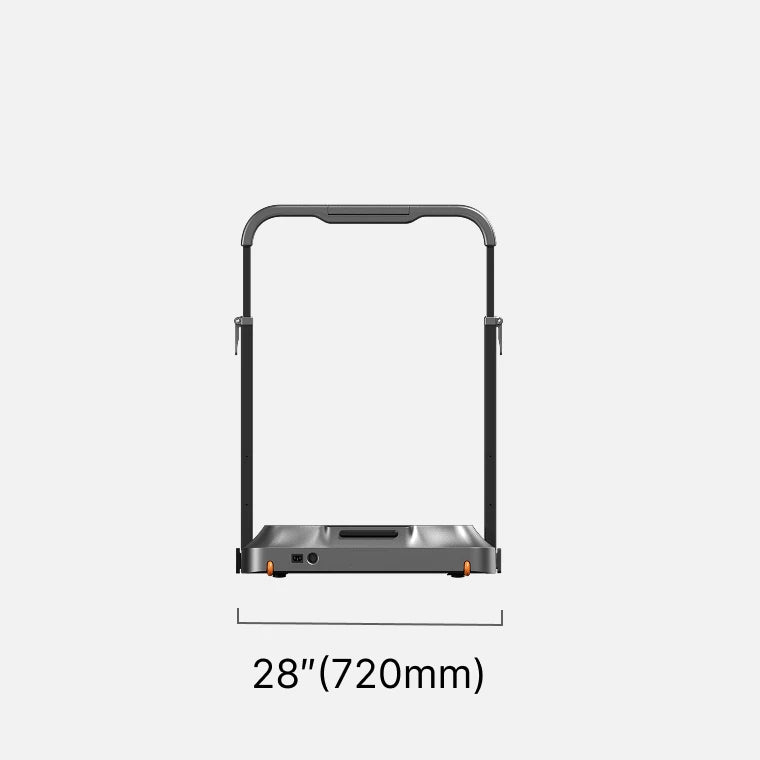

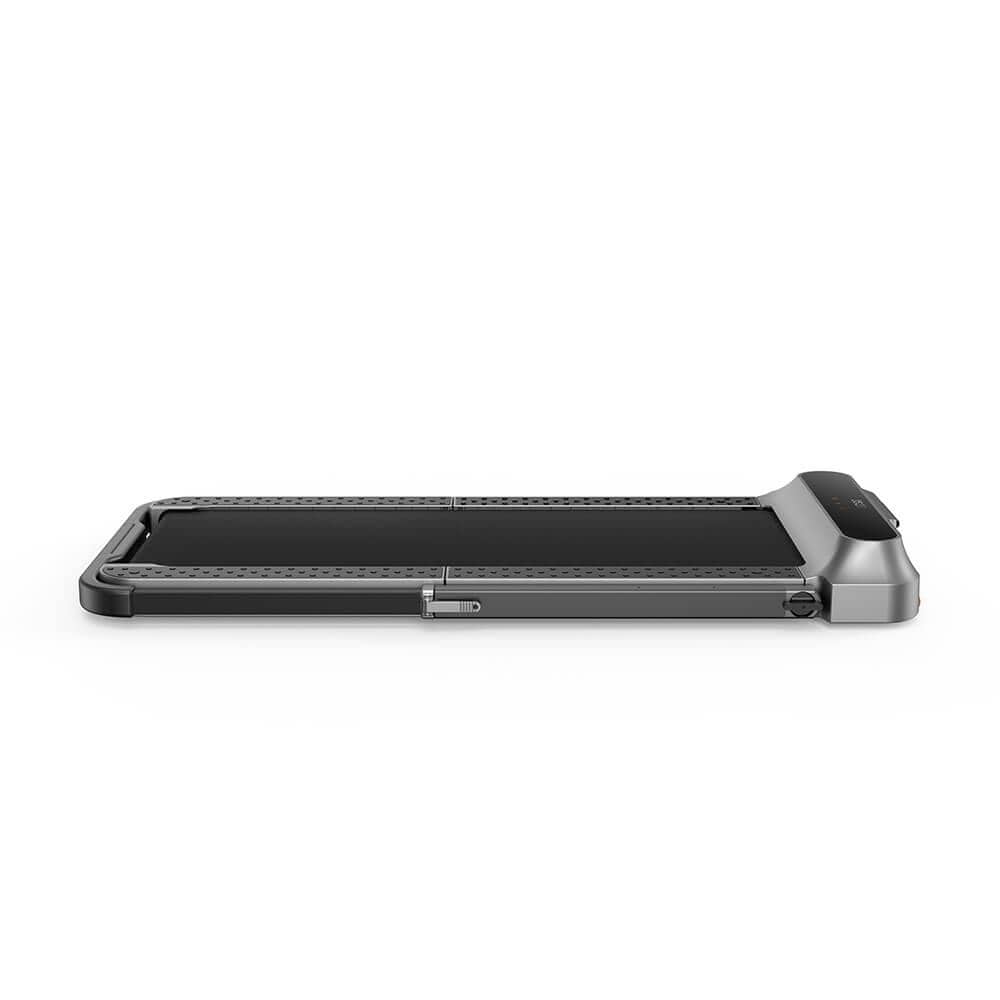

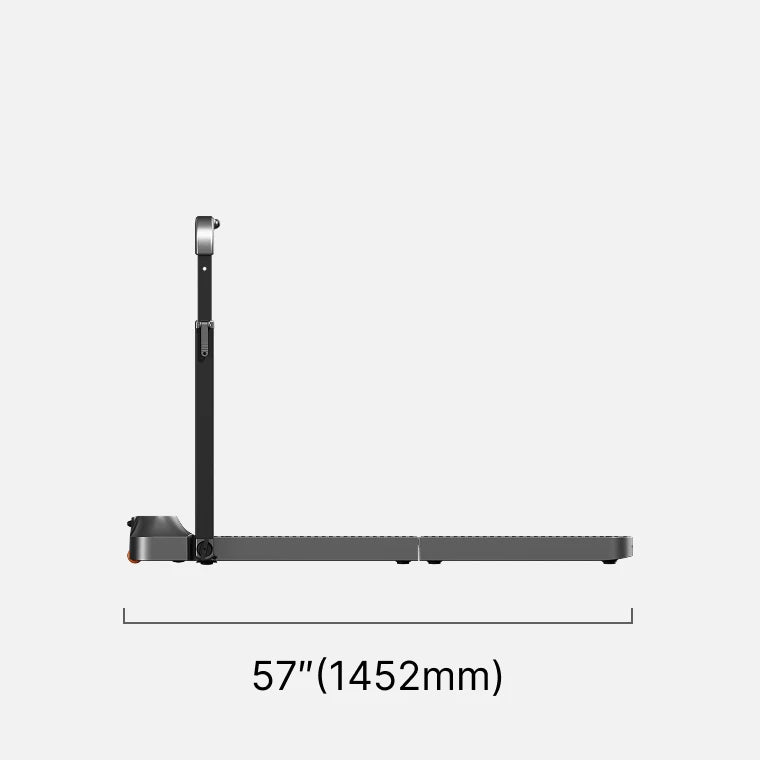

Unfold Size : | 57.1 * 28.3 * 40.6in / 1452 * 720 * 1032mm |

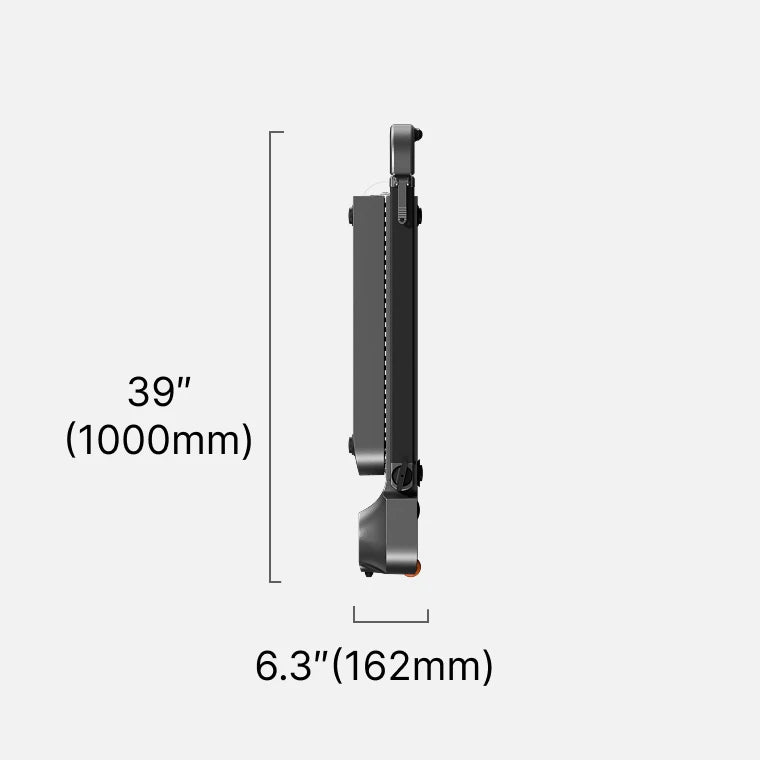

Folded Size : | 39.4 * 28.3 * 6.3in / 1000 * 720 * 162mm |
User Capacity : | 240 lbs / 110KG |
Walking Area : | 47.2 * 17.3in / 1200 * 439mm |
Sport mode: | Walking mode / Running mode |
Voltage : | US Version: 110V | UK Version: 220V | EU Version: 220V | JP Version: 110V |
Package Included | |
WalkingPad * 1 | Power Cord * 1 |
Remote Control * 1 | Remote Control Lanyard * 1 |
Allan Wrench * 1 | Dimethicone * 1 |
Packing Detail | |
Net Weight : | 79.36 lbs / 36KG |
Gross Weight : | 89.28 lbs / 40.5KG |
Additional Option | |
APP : | Available for both IOS & Android |
Color option : | Silver |
FAQs
How to register the app?
Please download the KS Fit APP from google play store or Apple APP store.
Before registering the APP, please change the country into yours on the homepage of the APP. Because phone number registeration is only available for Chinese users. Oversea customers should register with emails.
What if I receive a product and want to return it?
Please contact our after-sales staff:support@walkingpad.com when you encounter problems. If you want to know more about the return, here is the return policy : Click Here
Is The Treadmill Loud?
The efficient brushless motor maintains a constant power output and generates just 75dB of noise at maximum speed under no-load conditions, allowing you to operate at full speed without disturbing downstairs neighbors.
